Description
Product Description
Cable Splitters | weBoost by Wilson Pro / Wilson Electronics.
Cable Splitter made by weBoost / WilsonPro parent company Wilson Electronics offers six options to choose from the drop-down menu above. Details of each are as follows:

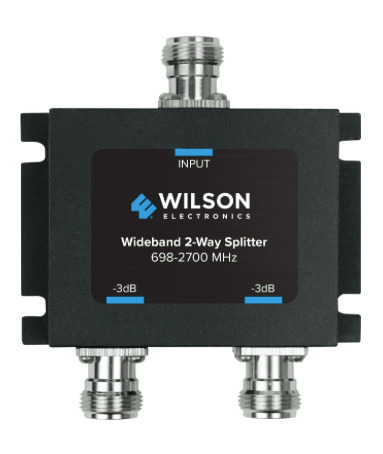

Two Way Splitter (50 Ohm) with N-Female Connector Specs.:
Splitter 2 Way, -3 dB signal loss, covering frequencies 700-2700 MHz, N Female Connectors, 50 Ohm. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 859957 |
|---|---|
| Connectors | N-Female |
| Dimensions | 3.7 × 2.5 × 0.78 inches |
| Frequency | 700-2700 MHz |
| Impedance | 50 Ohm |
| Signal Loss | 3 dB |
| Insertion Loss | 0.4 dB |
| VSWR | ≤2.0:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 4.23 Oz |
| UPC | 813986008218 |
Two Way Splitter (75 Ohm) with F-Female Connector Specs.:
Splitter 2 Way with -3 dB signal loss covering 698-2700 MHz frequencies and F Female Connectors. 2 Way Splitter, 75 Ohm with F-Female Connectors. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 850034 |
|---|---|
| Connectors | F-Female |
| Dimensions | 3.6 x 3.5 x 0.8 inches |
| Frequency | 698-2700 MHz |
| Impedance | 75 Ohm |
| Signal Loss | 3 dB |
| Insertion Loss | 0.4 dB |
| VSWR | ≤2.0:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 7.04 Oz |
| UPC | 811815028970 |
Three Way Splitter (50 Ohm) with N-Female Connector Specs.:
Splitter 3 Way with -4.5 dB signal loss covering 700-2700 MHz frequencies with N Female Connectors and 50 Ohm impedance. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 859980 |
|---|---|
| Connectors | N-Female |
| Dimensions | 3.9 × 2.9 × 0.78 inches |
| Frequency | 700-2700 MHz |
| Impedance | 50 Ohm |
| Signal Loss | 4.5 dB |
| Insertion Loss | 0.5 dB |
| VSWR | ≤2.3:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 6.34 Oz |
| UPC | 811815020066 |
Three Way Splitter (75 Ohm) with F-Female Connector Specs.:
Splitter 3 Way with -4.5 dB signal loss covering 698-2700 MHz frequencies with F Female Connectors. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 850035 |
|---|---|
| Connectors | F-Female |
| Dimensions | 4.0 x 4.7 x 0.8 inches |
| Frequency | 698-2700 MHz |
| Impedance | 75 Ohm |
| Signal Loss | 4.5 dB |
| Insertion Loss | 0.5 dB |
| VSWR | ≤2.3:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 10.88 Oz |
| UPC | 811815028987 |
Four Way Splitter (50 Ohm) with N-Female Connector Specs.:
Splitter 4 Way with -6 dB signal loss covering 700-2700 MHz frequencies with N Female Connectors and 50 Ohm impedance. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 859981 |
|---|---|
| Connectors | N-Female |
| Dimensions | 4.5 × 4.5 × 0.98 inches |
| Frequency | 700-2700 MHz |
| Impedance | 50 Ohm |
| Signal Loss | 6 dB |
| Insertion Loss | 0.6 dB |
| VSWR | ≤2.4:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 11.64 Oz |
| UPC | 811815020073 |
Four Way Splitter (75 Ohm) with F-Female Connector Specs.:
Splitter 4 Way with -6 dB cable signal loss covering 698-2700 MHz frequencies with F Female Connectors. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 850036 |
|---|---|
| Connectors | F-Female |
| Dimensions | 4.0 x 4.7 x 0.8 inches |
| Frequency | 698-2700 MHz |
| Impedance | 75 Ohm |
| Signal Loss | 6 dB |
| Insertion Loss | 0.6 dB |
| VSWR | ≤2.4:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 11.04 oz |
| UPC | 811815028963 |
Features:
- 698-2700 MHz Band.
- Cellular mobile communication.
- Low insertion loss, low VSWR.
- High isolation, low ripple.
- Microstrip structure.
