Cel-Fi Trucker Antenna + Mirror Mount + 4M Cable w/SMA Male Connector
Cel-Fi Trucker Antenna + Mirror Mount + 4M Cable w/SMA Male Connector
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: A21-V31-100
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

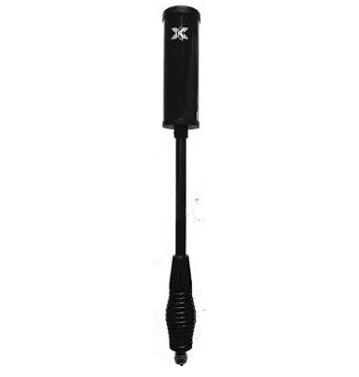

Cel-Fi Trucker Antenna was developed to offer a high-performance wideband antenna option for over-the-road (OTR) users. This outdoor wireless wideband truck omni antenna features a heavy-duty spring base.
It includes a mirror-mount for easy installation. Attached 4 meters long cable (13.1234 feet cable) has a SMA Male connector which connects to all cell phone signal booster kits for stronger cellular coverage on all mobile Carrier networks in USA & Canada. SKU: 591NA21260C64V31. Model: A21-V31-100 / A21V31-100 / A21-V31100 / A21V31100.
Summary: Nextivity Cel-Fi GO-M Outdoor Wideband Trucker Omni Antenna - Standard Mirror Mount - Black 4m Cable - LTE (SMA M).
Features:
- 3G/ 4G/ LTE wideband cellular antenna.
- Omni-directional.
- SMA Male Connector.
Specifications:
| Model / Part Number: | A21-V31-100 / A21V31100 |
|---|---|
| Frequency Range: | 698 to 960 MHz and 1710 to 2700 MHz |
| Gain: | 4 dBi |
| Polarization: | Vertical |
| Horizontal Beamwidth: | 360° |
| Vertical Beamwidth: | 60° |
| Input Impedance: | 50 Ohm |
| Maximum Power: | 100 W |
| Lightning Protection: | DC Ground |
| Connector: | SMA Male |
| Length of Cable: | 4 meter cable |
| Dimensions: | 600 mm / ~ 24 inches / ~ 2 feet |
| Reflector Material: | Aluminum |
| Weight: | 1 kg |
| Radome Material: | ABS |
| Operating Temperature: | -40° C to +65° C |
| Mounting Pole: | UV-PVC |
| Color: | Black |
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
How does it mount? Is it a bracket, or bolt on?
This LPDA comes with a bracket that would be used to hook on to the semi trucks mirror or RV ladder, but you can also use the bracket to bolt it against the vehicle.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
