In-Building Dome Antenna (50 Ohm)
In-Building Dome Antenna (50 Ohm)
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: CH222W
If not purchasing Indoor Dome Antenna (50 Ohm) Expansion Kit to add to a complete cell signal booster kit, add'l parts to connect it to your existing signal boosting system are:
One Additional Dome Antenna Would Require:
- SC-WS-2: Two Way Splitter (50 Ohm 698-2800 MHz).
- 1 Cable of suitable length from: 10, 20, 30, 50, 75, 100, 500 & 1000 ft.
- SC-001-02: SC400 Jumper Cable (2 ft. long).
Two Additional Dome Antennas Would Require:
- SC-WS-3: Three Way Splitter (50 Ohm 698-2800 MHz).
- 2 Cables of suitable lengths from: 10, 20, 30, 50, 75, 100, 500 & 1000 ft.
- SC-001-02 (Quantity 2): Two SC400 Jumper Cables (2 ft. long).
Three Additional Dome Antennae Would Require:
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer

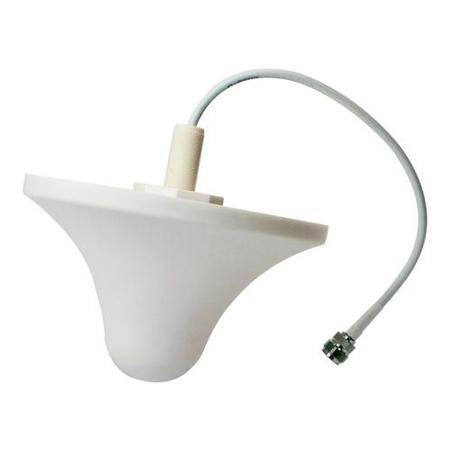

In-Building dome antenna working on 50 Ohm impedance is omni-directional antenna. This 50 Ohm dome antenna looks elegant and is unobtrusive in its design for blending in all types of home and office decor. It is for inside building use. It covers wireless mobile networks of all carriers in USA and Canada including AWS, Cellular, LTE and PCS frequencies spanning 698MHz to 2700MHz.
This 50 Ohms dome antenna is best mounted on the ceiling and receives / transmits within a beamwidth of 360 degrees to all cellphones. It provides a 3 dB to 4 dB Gain or depending on frequency even 2 dB to 5 dB gain in a radius of 39 feet.
Being omni-directional, it is easy to install thanks to the included mounting equipment. This home and office interior antenna offers varying Gains over a range of 5,000 to 7,500 square feet with an up to 20 feet vertical height. It has an N-Female connector type.
Besides the antenna itself, the parts include mounting equipment for either a flat horizontal surface or a wall. It should be mounted in an upright position for best results. You can expect to receive a 2 to 5db gain from the dome transmission.
|Input Impedance||50 ohm|
|Ground Plane||Built in ground plane|
|Mount||Mounts to ceiling|
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
