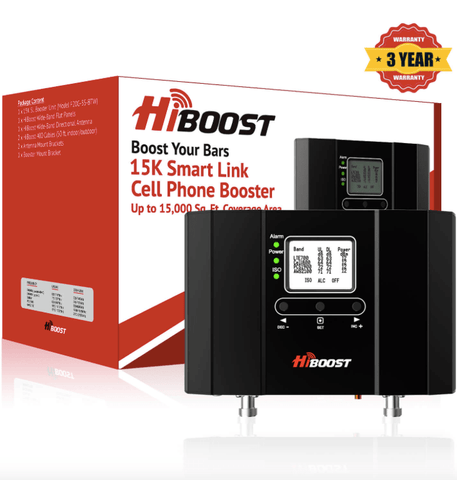

HiBoost Home 15K Smart Link | F20G-5S-IoT

HiBoost Home 15K Smart Link | F20G-5S-IoT

  • Regular price $999.99 USD Sale price$899.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: F20G-5S-IoT

Best Price Guarantee [1 2 3]

Consider ordering cell phone booster with installation kit for entire home that includes installation anywhere within USA.

  • Sold as a complete indoor cell phone booster kit with all reqd. parts.
  • Boost home or office coverage up to 15k sq. ft. using this single kit.
  • Downloadable phone app helps remotely monitor settings.
  • LCD shows valuable info that helps with setup and maintenance.
  • Supports up to 150 users simultaneously.
  • 70 dB Max Gain. Output Power, Uplink: 17-24 dBm; Downlink: 12 dBm.
  • Improve reception in more crucial areas requiring coverage by purchasing add'l 50 Ohm in-building antenna kits that include required cables and splitter to connect to this 50 Ohm booster kit.


Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Data Sheet / User Guide
  • Make An Offer
  • Warning

Description

Product Description

HiBoost Home 15k SL cellular amplifier offers max. coverage compared to other consumer grade kits. The Home 15K Smart Link (F20G5SBTW) cell phone signal booster by HiBoost provides maximum range and gain for when you need the best cell phone coverage for your house or workplace office building. Purchase from SignalBooster.com to get a FREE lightning surge protector and its grounding kit as well as an exterior antenna mounting pole.

HiBoost Home 15000 Smart Link (F20G-5S-BTW) provides unsurpassed signal boosting capabilities for all 5G E, 4G LTE, 3G, and 2G signals. It covers an impressive 15,000 square feet and providing a maximum gain of at least 70 decibels.

For this Home 15K SL series cellular amplifier, download the convenient Signal Supervisor wireless app on your smart phone or tablet and enjoy the convenience of remotely troubleshooting and monitoring your 15K Smart Link signal amplifier kit.

HiBoost 15K Smart Link Key Features:

  • Enable remote monitoring and troubleshooting with the handy Signal Supervisor mobile app on your tablet or cell phone.
  • Boost talk, data, and text for up to 150 users.
  • Enjoy low interference to cell phone towers nearby and a maximum decibel gain of up to 70.
  • Fully certified for use throughout United States and Canada by both the FCC and IC.
  • The streamlined design with high quality, strong and durable metal construction is easy to install and aesthetically pleasing.
  • Full installation kit provides everything you need for easy installation.
  • Supports 2G, 3G, 4G LTE, 5GE signals.
  • The MGC function allows for fine tuning as required (See "User Guide" tab below for details).

Unique LCD Display Benefits (versus amplifiers that only have LED light indicators)

LCD displays actual gain and downlink output power, making installation easier:

LCD displays actual gain and downlink output power, making installation easier

LCD display shows the gain and output value in real-time processing events. It will also help you to find the strongest signal location to install outdoor antenna to prevent blind installation that typically leads to trials and errors. No more time wasted. It helps you get the maximum possible coverage range out of the power of this cell phone booster kit.

LCD displays ISO and ALC status, making troubleshooting easier:

LCD displays ISO and ALC status, making troubleshooting easier

LCD data helps diagnose the LED status and display errors which you may encounter by giving you information on how to fix them. No need to open the user manual and read those tedious instructions.

What's in the kit?

  • Home 15K Smart Link cell phone signal booster.
  • Outdoor mounting hardware: 50-feet HiBoost-400 (LMR-400 equivalent) cable (low loss), wideband directional outdoor Yagi antenna, wall mount bracket or external pole mount bracket.
  • Indoor mounting hardware: 50 ft. HiBoost400 (LMR400 equiv.) cable (low loss), wideband directional indoor Panel interior antenna plus wall mount bracket.
  • AC/DC power supply: 12 volts/3 amps.

Note: If you have the white color amplifier version, then it may have a built-in interior antenna so you won't have the flat panel antenna stated above.

Overview.

Looking for a cell phone signal booster with supreme coverage and the highest possible cell phone data speeds? Look no further than this Home 15,000 sq. ft. cellphone booster kit. Offering an industry leading coverage area of up to 15,000 square feet, the Home 15K Smart Link will keep you connected at the highest possible speeds over any 5G-E, 4G LTE, 3G, or 2G data connection. Share all the benefits with up to 150 users, ensuring that no one misses out on crystal clear voice calls and lightning fast data speeds at the location you choose. It gives you perfect quality and superfast data over the widest possible coverage area at the lowest price.

Approval

The Home 15-K SmartLink cell phone signal booster by HiBoost is approved by the IC (ID: 10527A-F25G5SIC) and FCC (ID: OWWF25K-5S) for all Canadian and United States cellular service providers. For more information on IC (http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng) and FCC (https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm) approval, visit their respective websites.

Product Specifications.

Model Name Home 15K Smart Link
Supported Carriers All North American
Max Gain 70 dB
Max Output Power Uplink: 17-24 dBm; Downlink: 12 dBm
Input and Output Impedance 50 Ohm
MGC (Step Attenuation) ≥ 25 dB/ 1 dB step
AGC 31 dB
VSWR ≤2.0
I/O Port N-Female
Dimensions 8.6 x 6.5 x 2 inches
Amplifier Base Unit Weight ≤ 5.0 Lbs
Power Supply Input AC 100~240V, 50/60 Hz, Output DC 12V / 3A
Frequency Range 700 MHz, Band 12 / 17 - Uplink: 698-716 MHz; Downlink 728-746 MHz
700 MHz, Band 13 - Uplink: 776-787 MHz; Downlink 746-757 MHz
800 MHz, Band 5 - Uplink: 824-849 MHz; Downlink 869-894 MHz
PCS 1900 MHz, Band 25 / 2 - Uplink: 1850-1915 MHz; Downlink 1930-1995 MHz
AWS 2100 MHz, Band 4 - Uplink: 1710-1755 MHz; Downlink 2110-2155 MHz
Band Width 700 MHz, Band 12 / 17 - 18 MHz
700 MHz, Band 13 - 11 MHz
800 MHz, Band 5 - 25 MHz
PCS 1900 MHz MHz, Band 25 / 2 - 65 MHz
AWS 2100 MHz, Band 4 - 45 MHz
Supported Standards CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
SKU F20G-5S-BTW
UPC 697691006000



Alternate part model numbers:

  • F20G5S-BTW
  • F20G-5SBTW
  • F20G5SBTW
  • 99F20G5S-BTW
  • 99F20G-5SBTW
  • 99F20G5SBTW

Home 15K Smart Link Signal Booster Installation Layout Diagram

Home 15K Smart Link Signal Booster Installation Layout Diagram

HiBoost 4K / 10K / 15K Installation video:



Consumer Alert:
Consumer Alert

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Ask a Question
  • HiBoost 15K works with multiple providers and the disclaimer states you must get consent from the wireless provider. Would you need to attempt to contact multiple providers for consent? Also a regular consumer would purchase a cell phone at a store. How would they know who to contact for consent?

    Although the signal booster boosts network reception indoors for all carriers simultaneously, you only need to submit signal booster registration to the carrier(s) that provides service to user(s) in your household. This does not include carriers that provide service to guests that arrive temporarily and benefit from improved reception. It does not matter which retail store you purchase signal booster from - you must register with the Carrier providing service and billing, not the retailer and dealer that you buy it from. If you get service from MVNO or reseller, they will most likely refer you to the Carrier whose service they resell to register with the major carrier that provides actual wireless service, not the company reselling those services.

  • Will it pick up low signal of -120db?

    Just clarifying - If that is the best signal available outside, then no signal booster can help. If -120 dB is the best signal inside your home, then there's still a good possibility that reception is better outside (like on the roof of the house or building) and this - or any other kit can amplify the same and provide useable signal inside.

    If there's extremely weak signal outside in the range you stated, but you do have a broadband Internet connection - Either try wifi calling by turning on wi-fi calling on your cell phone, or try microcell or femtocell from your cell phone service carrier. Micro-Cell or Fem-To-Cell require Internet connection to work. Additionally, unlike this carrier agnostic signal booster kit, Micro Cell / Fem To Cell can only enhance signals of one respective Carrier it is intended to work with.

    If all else fails, you can also complete and submit a questionnaire at https://www.signalbooster.com/pages/commercial-installation-questionnaire which will provide location and other details to us so we can give you a quote to set up a solution for you, regardless of what it takes.

Data Sheet / User Guide


Data Sheet

User Guide

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

Kevin K. of Anderson, California gave the following review:

Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.

Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.

If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
