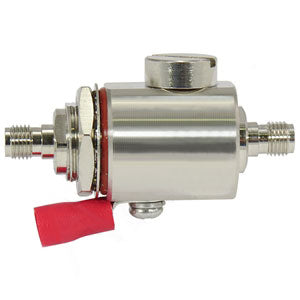

Cellular/ GPS Lightning Protector (50 Ohm) SMA-Female to SMA-Female 0-6.4 GHz

AFCLC06SFSFBQ3 - Cellular/ GPS Lightning Protector (50 Ohm) SMA-Female to SMA-Female 0-6.4 GHz

Cellular/ GPS Lightning Protector (50 Ohm) SMA-Female to SMA-Female 0-6.4 GHz

  • Regular price $75.00 USD Sale price$39.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: AFCLC06SFSFBQ3

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

Cellular and GPS Lightning Surge Protector (50 Ohm) with SMA-Female to SMA-Female connectors for coax cables operates over DC-6.4 GHz frequencies. This SMA Lightning Protector is perfect for protecting SMA Equipped RFID Readers, GPS equipment, as well as SMA-equipped 50 Ohm Cell Phone Boosters and Portable Hotspots. It also helps protect wi-fi equipment operating at 800 MHz, 900 MHz, 2.4 GHz, 3.65 GHz, 5 GHz and 6.2 GHz.

It uses a gas discharge tube to shunt electrical surges which it transients to ground. Protect your sensitive elecronic communication equipment from ESD and surge events with this premium quality GPS and Cellular Lightning Protector operating on 50 Ohm impedance for all frequencies in the range of 0-6.4 GHz.

This is our premium signal booster custom class 3 inventory item. The design features a replaceable high power gas discharge tube capsule that protects communications equipment from lightning and ESD surges.

It features a replaceable 230V gas discharge tube. In addition to 230 V - 90V, 350V and 600V replacement gas tubes are also available. This protector features standard 50 Ohm SMA connectors (SMA Female to SMA Female Bulkhead).

Features.

  • Wide DC-6.4 GHz Broad Bandwidth.
  • Gas Tube Element can be replaced with 90V, 230V, 350V and 600V elements.
  • DC Pass for Remote Powering.
  • Capable of handling High Power Surges.
  • 50 Ohm SMA Connectors.
  • Low VSWR and Loss.
  • Bulkhead Connetor for Thru-Hole Mounting.

Applications.

  • GPS Receivers.
  • SMA Equipped RFID Readers.
  • Cellular Hotspots.
  • 50 Ohm SMA Cell Phone Boosters.
  • 3G/4G LTE, PCS, Cellular Repeaters.
  • 800 MHz, 900 MHz, 2.4 GHz, 3.5 GHz, 5 GHz, 6.2 GHz Operation.
  • Wireless Video Systems.
  • Indoor and Outdoor Installations.
  • Amateur Radio, VHF, UHF, LMR.

UPC: 697691003429.

Specifications:

Frequency Range DC-6.4 GHz
VSWR 1:1.2 typ.
Insertion Loss 0.4 dB typ.
Impedance 50 Ohms
Gas Tube DC Breakdown Voltage 230V+/-20% (90V, 230V, 350V and 600V replacement gas tubes are available)
Gas Tube Impulse Breakdown Voltage 1000V 20%
Gas Tube Insulation Resistance 2000 MegOhm min
Rated Surge Current 20 KA max
Connectors SMA Female to SMA Female Bulkhead
Ground Lug 10 AWG Max.
Dimensions 2.0 x 1.1 x 0.9 Inches (51 x 28 x 23 mm)
Max. Panel Thickness (Bulkhead Connector) 0.12 Inches (3.17 mm)
