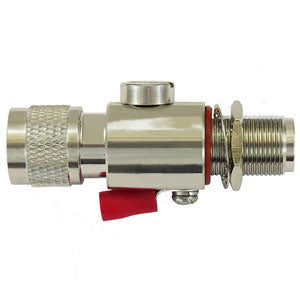

Lightning Protector (50 Ohm): N-Male to N-Female Bulkhead 0-6.4 GHz
Lightning Protector (50 Ohm): N-Male to N-Female Bulkhead 0-6.4 GHz
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: AFCLC06NMNFBO6
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description
Lightning Surge Protector (50 Ohm) with N-Male to N-Female Bulkhead connectors for coaxial cables operates over DC-6.4 GHz frequencies. It is ideal for protecting RFID Readers, Wi-Fi Access Points and Routers, GPS Receivers, Cellular equipment and HAM Radios operating at 800 MHz, 900 MHz 1.5 GHz, 2.4 GHz, 3.5 GHz, 5 GHz, 6.2 GHz and more.
It uses a gas discharge tube to shunt electrical surges which it transients to ground. Protect your sensitive communication equipment from ESD and surge events with this premium quality type nMale to nFemale Bulkhead Lightning Surge Protector operating on 50 Ohm impedance for all frequencies in the range of 0-6.4 GHz.
This is our premium signal booster custom class 6 inventory item with UPC 697691011394. The design features a replaceable high power gas discharge tube capsule that protects communications equipment from lightning and ESD surges.
It features a replaceable 230V gas discharge tube. 90V, 230V, 350V and 600V replacement gas tubes are available, if needed for replacement.
Features.
- Wide DC-6.4 GHz Broad Bandwidth.
- Gas Tube Element can be replaced with 90V, 230V, 350V and 600V elements.
- Capable of handling High Power Surges.
- 50 Ohm N Male to N Female Bulkhead Connectors.
- DC Passing option for Powering Remotely.
- Low VSWR and Loss.
- Bulkhead Connetor for Thru-Hole Mounting.
Applications.
- RFID Reader Compatibility.
- 802.11a/b/g/n WiFi Access Points, MIMO.
- Protects 3G and 4G Mobile Hotspot Devices.
- 3G/4G LTE, PCS, Cellular Repeaters.
- 800 MHz, 900 MHz, 1.5 GHz, 2.4 GHz, 3.5 GHz, 5 GHz, 5.8 GHz, 6.2 GHz Operation.
- VHF, UHF, GPS, LMR.
- Wireless Video Systems.
- Outdoor Antenna Feed-Lines and Tower Antenna Installations.
- Amateur Scanners and Ham Radio.
Specifications:
| Frequency Range | DC-6.4 GHz |
|---|---|
| VSWR | 1:1.2 typ. |
| Insertion Loss | 0.4 dB typ. |
| Impedance | 50 Ohms |
| Gas Tube DC Breakdown Voltage | 230V+/-20% (90V, 230V, 350V and 600V replacement gas tubes are available) |
| Gas Tube Impulse Breakdown Voltage | 1000V 20% |
| Gas Tube Insulation Resistance | 2000 MegOhm min |
| Rated Surge Current | 20 KA max |
| Connectors | N-Male to N-Female Bulkhead |
| Ground Lug | 10 AWG Max. |
| Dimensions | 2.6 x 1.3 x 0.9 Inches (67 x 33 x 23 mm) |
| Max. Panel Thickness (Bulkhead Connector) | 0.31 Inches (7.93 mm) |
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
