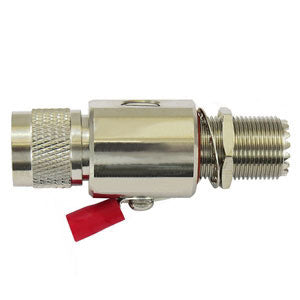

Lightning Protector (50 Ohm): UHF Male (PL-259) to UHF Female (SO-239)

AFCLC03UMUFBO4 - Lightning Protector (50 Ohm): UHF Male (PL-259) to UHF Female (SO-239)

Lightning Protector (50 Ohm): UHF Male (PL-259) to UHF Female (SO-239)

  • Regular price $75.00 USD Sale price$39.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: AFCLC03UMUFBO4

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

HAM and CB Radio Gas Tube Lightning Surge Protector UHF Male PL-259 to UHF Female SO-239 bulkhead connectors for coaxial cables uses a gas discharge tube to shunt electrical surges which it transients to ground. Protect your sensitive communications equipment with this premium quality UHF Male PL259 to UHF Female SO239 Gas Tube Lightning Protector that is ideal for most HAM radio and CB radio applications. It works over all frequencies in the range of 0-3 GHz.

Operating over the DC-3 GHz frequency range, this is our premium signal booster custom class 4 inventory item with UPC 697691011370. The design features a replaceable high power gas discharge tube capsule that protects communications equipment from lightning and ESD surges.

It features a replaceable 230V gas discharge tube. 350V and 600V replacement gas tubes are also available for high power HAM radio transmitters.

Features.

  • Gas Tube Element can be replaced.
  • DC-3 GHz Broad Bandwidth.
  • Capable of handling High Surge Power.
  • Bulkhead Connector for Feedthrough or Thru-Hole Mounting.
  • DC Passing option for Powering Amplifiers Remotely.
  • Low VSWR and Loss.

Applications.

  • CB Radio Lightning Protector.
  • GMRS and FRS Repeaters.
  • VHF, UHF, GPS, LMR.
  • 2-Way Radio.
  • Outdoor Antenna Feedlines and Tower Antenna Installations.
  • Amateur Scanners and Ham Radio.

Specifications:

Frequency Range DC-3 GHz
VSWR < 1.2:1
Insertion Loss < 0.4 dB
Impedance 50 Ohms
Gas Tube DC Breakdown Voltage 230V+/-20% (90V, 350V and 600V replacement gas tubes also available)
Gas Tube Impulse Breakdown Voltage 1000V 20%
Gas Tube Insulation Resistance 2000 MegOhm min
Rated Surge Current 20 KA max
Connectors UHF-Male (PL-259) to UHF-Female (SO-239) Bulkhead
Dimensions 2.7 x 1.3 x 1.0 Inches (67 x 33 x 25 mm)
Max. Panel Thickness (Bulkhead Connector) 0.31 Inches (7.9 mm)
