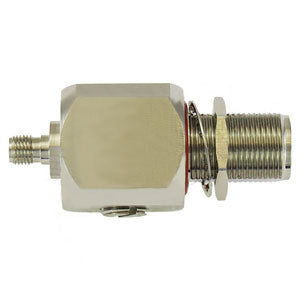

Lightning Surge Protector (50 Ohm): SMA-Female to N-Female Bulkhead

AFCLC03SFNFBO1 - Lightning Surge Protector (50 Ohm): SMA-Female to N-Female Bulkhead

Lightning Surge Protector (50 Ohm): SMA-Female to N-Female Bulkhead

  • Regular price $75.00 USD Sale price$39.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: AFCLC03SFNFBO1

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

Lightning Surge Protector (50 Ohm) with SMA-Female to N-Female connectors for coaxial cables uses a gas discharge tube to shunt electrical surges which it transients to ground. Protect your sensitive communications equipment with this premium quality SMA Female to N Female Lightning Surge Protector operating on 50 Ohm impedance. This unit features coaxial 50 Ohm SMA Female connector on one end and an N Female bulkhead connector on other end. It works over all frequencies in the range of 0-3 GHz.

Operating over the DC-3 GHz frequency range, its unique design makes it ideal for use in NEMA boxes, enclosures, and panels. It combines the robustness of an N connector outside with the compact design of the SMA connection on inside.

This is our premium signal booster custom class 1 inventory item with UPC 697691011356. The design features a replaceable high power gas discharge tube capsule that protects communications equipment from lightning and ESD surges.

This device operates at a wide band and high power capability making it suitable for 50 Ohm SMA Cell Phone Signal Boosters, LTE Modems, MicroCells, and Worldwide GPS Receivers.

It features a replaceable 230V gas discharge tube. Furthermore, 90V, 230V, 350V and 600V replacement gas tubes are available, if needed for replacing it.

Features.

  • Gas Tube Element can be replaced.
  • DC-3 GHz Broad Bandwidth.
  • Capable of handling High Surge Power.
  • 50 Ohm SMA-Female to N-Female Connectors.
  • DC Passing option for Powering GPS Antennas and LNA Remotely.
  • Low VSWR and Loss.
  • Bulkhead Connetor for Thru-Hole Mounting.
  • Weatherproof.

Applications.

  • Operates for all carriers.
  • Ideal for protecting LTE Cellular Modems.
  • Protects 3G and 4G Mobile Hotspot Devices.
  • 3G/4G LTE, PCS, Cellular Repeaters.
  • SMA Equipped Cell Phone Boosters.
  • VHF, UHF, GPS, LMR.
  • Wireless Video Systems.
  • Outdoor Antenna Feedlines and Tower Antenna Installations.
  • Amateur Scanners and Ham Radio.

Specifications:

Frequency Range DC-3 GHz
VSWR < 1.2:1
Insertion Loss < 0.4 dB
Impedance 50 Ohms
Gas Tube DC Breakdown Voltage 230V+/-20% (90V, 230V, 350V and 600V replacement gas tubes are available)
Gas Tube Impulse Breakdown Voltage 1000V 20%
Gas Tube Insulation Resistance 2000 MegOhm min
Rated Surge Current 20 KA max
Connectors SMA-Female to N-Female Bulkhead
Dimensions 2.3 x 1.3 x 1.0 Inches (58 x 33 x 26 mm)
Max. Panel Thickness (Bulkhead Connector) 0.31 Inches (7.9 mm)

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

Kevin K. of Anderson, California gave the following review:

Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.

Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.

If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
