Product Description

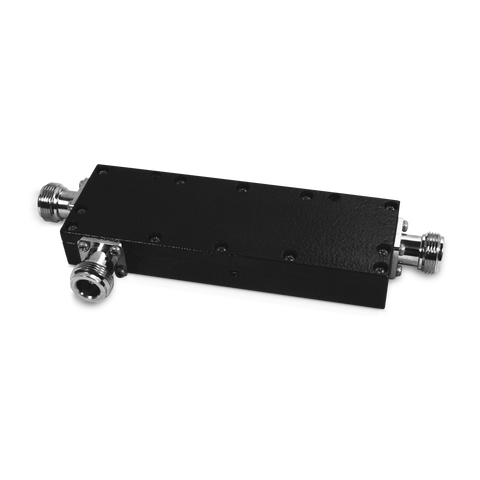

Ultra-Wideband -10 dB Coupler.

-10 dB 5G coupler, also known as a tap, is designed for maintaining signal strength across a series of indoor antennas stretching some distance in a cell phone signal booster deployment. This RF signal distribution tap component unevenly distributes the signal coming into and out of the coupler, ensuring less signal loss out of one port which enables the next broadcast antenna down the line to receive an adequate signal despite the signal loss from cables and multiple antennas. SureCall Ultra-Wideband couplers are compatible with all 2G, 3G, 4G and 5G signal booster deployments in the 600 MHz to 2700 MHz range under all North American carriers. 5G Band 71 compatible that includes T-Mobile 5G Sub-6 Frequency. Part Number: SCC105G. UPC: 856019003064.

  • Ultra-wideband: 2G, 3G, 4G, 5G (617 - 2700 MHz) -10 dB coupler.
  • Impedance: 50 Ohm.
  • Coupling Port Loss: 10 ± 0.8 dB.
  • Connectors: N-Female.
  • Connects with SC-400 cable (sold separately).

5G -10dB Coupler Specifications:

Operating Frequency: 600 MHz to 2700 MHz.
Coupling Degree (dB): -10 dB.
Coupling Accuracy (±): ≤ 1.2 dB.
Insertion Loss (dB): ≤ 0.8.
Isolation: ≥ 29.
SWR: ≤ 1.3 : 1.
Impedance: 50 Ohm.
Power Capability: 200 W.
Connector: N-Female.
IP Grade: IP64.
Dimensions: 4.73 in. x 1.58 in. x 0.67 in. (without connectors).
Weight: 7.4 oz.
Color: Black.
Operating Temp.: -31 Degrees Fahrenheit to +140 Degrees Fahrenheit.

For more details of this -10dB 5G Coupler as well as details of -6dB, -15dB and -20dB couplers available, please refer to -6dB, -10dB, -15dB, -20dB 5G Couplers Data Sheet.
