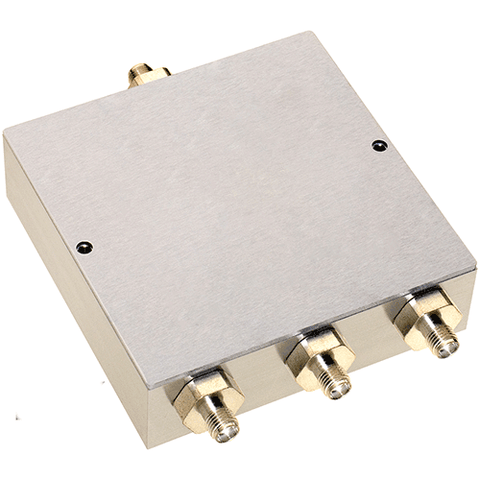

3 Way Power Divider, Combiner, Splitter with SMA Female (50 Ohm)

3 Way Power Divider, Combiner, Splitter with SMA Female (50 Ohm)

  • $99.00 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Other restrictions may apply. Please contact us for details.

No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.

Free Lifetime Support. SKU / Model: ISWPD2130AFC

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer

Description

Product Description

3-Way RF Power Divider, Combiner, Splitter has 50 Ohms impedance. It has SMA female connectors. This 3-way wide-band divider, combiner, and splitter covers 698 MHz through 2700 MHz frequencies.

3-Way Power Divider, Combiner, Splitter has SMA Female (Jack) Connectors. Specs.: 0.7-2.7 GHz, 40 Watts, 50 Ohm, 0 Degree, RoHS. Precise frequencies: 0.698 - 2.700 GHz.

Features:

  • Wideband Frequency (698 - 2700 MHz).
  • Low Insertion Loss (0.3 dB Avg).
  • High Port to Port Isolation (30 dB Avg).
  • Excellent VSWR (1.10 : 1 Avg).
  • RoHS Compliant Splitter Construction.
  • Tri Alloy Type N Female (Jack) Low PIM.

Technical Specifications:

Frequency Range 698-2700 MHz.
Insertion Loss above 4.77 dB 0.6 dB max.
Amplitude Balance 0.2 dB max.
Phase Balance 3° max.
Isolation 18 dB min.
Input VSWR 1.30 : 1 max.
Output VSWR 1.25 : 1 max.



Mechanical Specifications:

Circuit Design Wilkinson Microstrip passes DC Current through all ports.
Connectors SMA Female, 50 Ohm Coaxial.
Body Brass, Tri-Alloy Plate.
Connector Pin Beryllium Copper, Gold Plate.
Insulator PTFE, Virgin Electrical Grade.
Housing Aluminum, Clear Chem Film.
Operating Temperature -65°C to +85°C.
Weight 292 Grams.
