500 ft. LMR400 Plenum Cable | WilsonPro 952002 Wilson Electronics

500 feet LMR-400 Plenum Cable | Wilson Pro 952002 by Wilson Electronics / weBoost

500 ft. LMR400 Plenum Cable | WilsonPro 952002 Wilson Electronics

  • Regular price $3,000.00 USD Sale price$2,975.00 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.

Free Lifetime Support. SKU / Model: 952002

Best Price Guarantee [1 2 3]


Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

500 feet LMR-400 Plenum Cable | Wilson Pro 952002 by Wilson Electronics / weBoost.

Buy 500' LMR400 Plenum Cable supplied by Wilson Electronics' commercial cell phone signal booster division, WilsonPro. It is an ultra low loss 400 coaxial cable. It is orange in color and fire rated compliant per national NFPA requirements.

What is Plenum cable?

Plenum cable has a special fire-retardant jacket that burns at a higher temperature than typical cable. When burned, the cable does not let off toxic smoke that most cables release when burned. These characteristics make plenum cable the safest option to use in any space. This long five hundred feet plenum coax cable is very durable and high safety cable thanks to its rugged characteristics. Its ruggedness and durability enables it to be used practically anywhere, indoors or outdoors because it meets maximum safety standard possible for plenum cables.

Almost all large buildings utilize the ceiling for returning air to the central AC unit, thereby making it a plenum ceiling. This means all cables running through the ceiling need to be plenum rated cables. Our 500 ft. cables for plenums are rated to meet or exceed industry standard requirements.

What exactly is Plenum? In building construction, the "plenum" is the compartmental space that is used for air circulation in heating and air conditioning systems. It is typically between the structural ceiling and the suspended ceiling or under a raised floor. What is the standard used for manufacturing these type cables? All materials intended for use on wire and cables to be placed in plenum spaces are designed to meet rigorous fire safety test standards in accordance with NFPA 262 and outlined in NFPA 90A.

NFPA 90A is the Standard used for Installation of Air-Conditioning and Ventilating Systems. This cable for plenum spaces meets or exceeds industry standards. Please click the data sheet tab above to read detailed characteristics of this best in industry 500ft. plenum cable.

Features:

  • UL rated CMP/FT6.
  • Flexible conductor enables tight bend radius.
  • Low-loss coaxial cable for wireless applications.
  • For indoor plenum use (dropped ceilings and raised floors).
  • Meets all code requirements for installation in plenum air handling spaces.

500 ft. spool of UL rated CMP/FT6, low-loss coaxial cable is for all types of wireless applications. Its flexible conductor enables tight bend radius that works in any install. The LMR 400’s UL tested fire resistant jacket also keeps your space safe from potential hazards.

When is Plenum required and who requires it?

Plenum cable is mandated to be installed in any "air handling" space by the National Electric Code. Knowing when a space requires Plenum Cable is very important. One of the easiest ways to do this is to look into the ceiling. If you see a duct going back to the Air Hauler, then this means you have a Closed Air System. However, if there isn't a duct running back to the Air Hauler, then you have an Open-Air System, and this is a Plenum Space and will require Plenum Cable.

Important note:

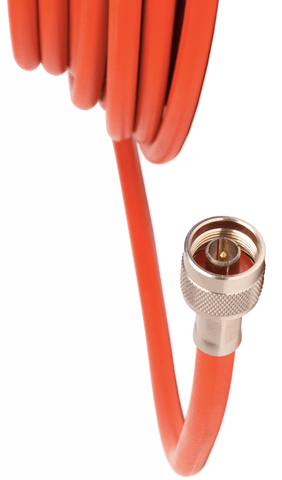

Please note that although image shows a connector, it does not include one because we offer several tools to help you field terminate the cable. This helps because you don't always know exactly how much cable you are going to need until you get to the job site. With these tools you will be able to create custom lengths of cable on the site.

Specifications:

Dielectric Insulation PTFE
Center Conductor Material Copper Clad Aluminum
Center Conductor Diameter .100 inch
Center Conductor Construction Solid
Nominal Core O.D. 0.285 inch
Nominal O.D. 0.405 inch
VOP 76%
Shield % 100% foil 90% braid
Nominal Capacitance (pF/ft) 27
Attenuation ↓ dB/100ft ↓
Loss @ 50 MHz 1.00 dB
Loss @ 100 MHz 1.35 dB
Loss @ 400 MHz 2.74 dB
Loss @ 900 MHz 4.2 dB
Loss @ 1000 MHz 4.39 dB
Loss @ 1800 MHz 5.7 dB
Loss @ 2500 MHz 6.8 dB
Jacket Color Orange Jacket
Mfg. Warranty 5 Years
Jacket Material FRPVC
Rating UL/CMP
Braid Material Tinned Copper
Part # / UPC 952002 / 811815027850
