Cel-Fi Dome Antenna 2.0 (50 Ohm) + 1 Ft. Cable w/SMA Male Connector
Cel-Fi Dome Antenna 2.0 (50 Ohm) + 1 Ft. Cable w/SMA Male Connector
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: A11-V43-120
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

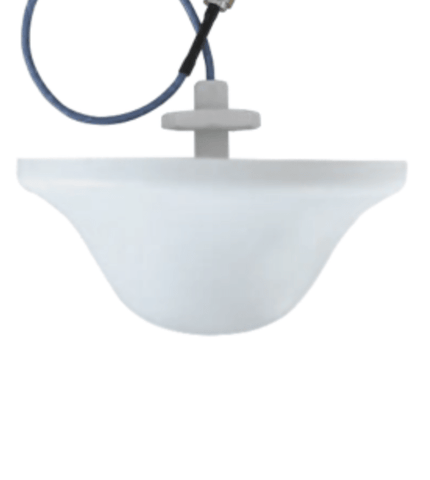

Wideband indoor dome server antenna 2.0 is also known as omni antenna because it transmits signals in omnidirectional or multi-directional fashion. Nextivity's new indoor Omni Dome antenna provides a 360 degree horizontal coverage pattern in a modern, visually low-impact industrial design.
It receives as well as transmits signal in a 360 degrees pattern. It is compatible with the 698 through 5900 MHz frequency ranges that include 3G, 4G, LTE, 5G wide-band cellular signals. It has threaded bolt and comes with a SMA Male connector and one foot white cable. Model #: A11-V43-120 / A11V43-120 / A11-V43120 / A11V43120. UPC: 697691016566.
Summary: Nextivity Cel-Fi GO-X/ PRO-EXA Indoor Omni Dome Antenna - Threaded Bolt - White 1 ft. Cable - 1 LTE (SMA M).
Features:
- 3G/4G/LTE wideband cellular antenna.
- Omni-directional.
- SMA Male connector.
Specifications:
| Model / Part Number: | A11-V43-120 |
|---|---|
| Frequency Range: | 698 to 5900 MHz |
| VSWR: | 2.0 |
| Gain: | 2 dBi to 5.5 dBi |
| Polarization: | Vertical |
| Horizontal Beamwidth: | 360 Degrees |
| Vertical Beamwidth: | 85 Degrees ± 30 Degrees |
| Input Impedance: | 50 Ohm |
| Max. Power: | 50 Watts |
| Lightning Protection: | DC Ground |
| Connector: | SMA Male |
| Connector Position: | Bottom |
| Mounting: | Fix with Nut |
| Dimensions: | 186 × 86 mm |
| Packing Size: | 186 x 81 mm |
| Weight: | 0.20 kg |
| Reflector Material: | Aluminum |
| Radome Material: | ABS |
| Operating Temperature: | -40° C to +65° C |
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
