Cel-Fi Wideband Omni-Directional MIMO Antenna
Cel-Fi Wideband Omni-Directional MIMO Antenna
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: A11-V14-100
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

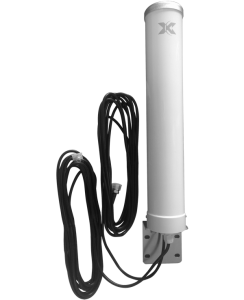

The Wideband Omni-Directional MIMO Antenna for Cel-Fi Quatra cell signal enhancing system has a gain of between 2.5 and 5 dBi and is perfect for use as a source for outdoor cellular donor signals. It has 2 x 2m lengths of cables attached with 2 Type N Female connectors. Model number A11-V14-100 / A11V14-100 / A11-V14100 / A11V14100.
This Wideband Omni-directional MIMO antenna is perfect for use as an outdoor cellular donor signal source. Item title: Nextivity Cel-Fi QUATRA Omnidirectional Outdoor Antenna.
The CelFi Wideband Omni Donor Antenna is an ideal donor signal source for the QUATRA 2000. It has N-type Female connectors. The Cel-Fi Omni Donor Antenna is the only authorized indoor/outdoor antenna for Cel-Fi QUATRA 2000 Off-Air solutions.
Nextivity Cel-Fi QUATRA 2000 Omni Outdoor MIMO Antenna is a White Color Antenna for Pole or Bracket Mount with 2m Cable and 2 LTE (N Female) Connectors.
Features:
- Wideband Omni antenna.
- Dual feeds (MIMO).
- Includes pole mounting options.
- Designed for QUATRA 2000 off-air installation.
Specifications:
| Frequency Range | 698 to 960 MHz and 1710 to 2700 MHz |
|---|---|
| Input Impedance | 50 Ohms |
| Gain | 2.5 dBi (698-960 MHz) and 5 dBi (1710-2700 MHz) |
| Lightning Protection | DC Ground |
| Polarization | Vertical |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 60° |
| VSWR | ≤ 2.5 (698-960 MHz) and ≤ 2.0 (1710-2700 MHz) |
| Maximum Power | 100 W |
| Connector Type | Qty. 2 Type N Female Connectors |
| Mounting Pole | 38 x 52 mm |
| Dimensions | 63 x 380 mm |
| Packing Size | 470 x 110 x 85 mm |
| Radome Material | UV-PVC |
| Reflector Material | PCB |
| Operating Temp | -40 degrees C to +65 degrees C |
| Cable length | 2 x 2 m |
| Weight | 1.0 kg |
| Rated Wind Velocity | 210 km/h |
| Manufacturer Part Number | A11-V14-100 or A11V14100 |
| Distributor Item Name | 591NA21260C65V14 |
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Can this replace the weboost drive sleek antenna?
Sorry, this is a building exterior antenna for installation on houses and buildings and not suitable for placing on cars. The replacement outside antenna for weBoost Drive sleek is at https://www.signalbooster.com/products/4g-exterior-vehicle-magnet-mount-antenna-incl-cable-and-connector
-
Does it have a ts9 connector so I can connect it to my hotspot?
Sorry, you will need a TS-9 adapter which is not included.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
