Half Inch Thick Foam CELLFLEX Coaxial Cable By The Foot (50 Ohm)

Half Inch Thick Foam CELLFLEX Coaxial Cable By The Foot (50 Ohm)

Half Inch Thick Foam CELLFLEX Coaxial Cable By The Foot (50 Ohm)

  • Regular price $3.00 USD Sale price$2.35 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: LCF1250JP7AFC

Best Price Guarantee [1 2 3]

Call for FREE consultation:


Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning


Product Description

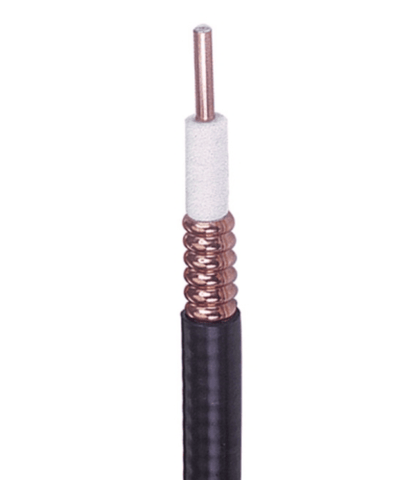

Half inch thick foam CELLFLEX coaxial cable sold by the foot so you can buy custom length as needed. It has 50 Ohm impedance. This is a CELL-FLEX low-loss foam-dielectric coax. cable. It meets all of your standard coax cable needs. This transmission line has an annular corrugated copper outer conductor with a copper-clad aluminum center conductor. Maximum frequency capacity is 8.8 GHz. Made by Radio Frequency Systems (RFS), this 1/2 inch standard coax cable is available in bulk and is priced per foot.

CELL FLEX 1.5 inch low loss flexible cable features & Benefits:

  • Low Attenuation: The low attenuation of CELLFLEX coaxial cable results in highly efficient signal transferring your RF system.
  • Complete Shielding: The solid outer conductor of CELLFLEX coaxial cable creates a continuous RFI/EMI shield that minimizes system interference.
  • Low VSWR: Special low VSWR versions of CELLFLEX coaxial cables contribute to low system noise.
  • Outstanding Intermodulation Performance: CELLFLEX Intermodulation performance is also confirmed with state-of-the-art equipment at the RFS factory.
  • High Power Rating: Due to their low attenuation, outstanding heat transfer properties and temperature stabilized dielectric materials, CELLFLEX cable provides safe long term operating life at high transmit power levels.
  • Wide Range of Application: Typical areas of application are: feedlines for broadcast and terrestrial microwave antennas, wireless cellular, PCS and ESMR base stations, cabling of antenna arrays, and radio equipment interconnects.

Please Note: This half an inch thick coaxial cable is available in bulk and is priced per foot because it is sold by the foot. Therefore, after adding this item to cart, please update "quantity" in shopping cart based upon number of feet required.

Technical Specifications:

Applications OEM jumpers, Main feed transitions to equipment, GPS lines, intended for outdoor usage.
Cable Type Foam-Dielectric, Corrugated.
Performance Code P7 for 698-794, 824-960, 1710-1755, 1850-1990 and 2110-2155 MHz.
Size 1/2".
Jacket Option Black
Inner Conductor 0.19 inch Copper-Clad Aluminum Wire.
Dielectric 0.47 inch Foam Polyethylene.
Outer Conductor 0.54 inch Corrugated Copper.
Jacket 0.62 inch Polyethylene, PE.
Impedance 50 Ohm +/- 1.
Maximum Frequency 8.8 GHz.
Velocity 88.0 Percent.
Capacitance 23.2 pF/ft.
Inductance 0.058 μH/ft.
Peak Power Rating 38.0 kW.
RF Peak Voltage 1950 Volts.
Jacket Spark 8000 Volt RMS.
Inner Conductor DC Resistance 0.48 Ohm per 1000 ft.
Outer Conductor DC Resistance 0.82 Ohm per 1000 ft.
Return Loss (VSWR) Performance Premium for 698 - 794, 824 - 960, 1710 - 1755, 1850 - 1990, 2110 - 2155 MHz.
Maximum Return Loss 24 dB / 1.135 VSWR.
Temperature & Power Standard.
Phase Stabilized Phase stabilized and phase matched cables and assemblies are available upon request.
Cable Weight 0.14 lb. per foot.
Minimum Bending Radius, Single Bend 3 inches.
Minimum Bending Radius, Repeated Bends 5 inches.
Bending Moment 6.5 Nm (lb*ft).
Tensile Strength 1100 N / 247 lb.
Recommended / Maximum Clamp Spacing 2 / 3.25 ft.
Fire Performance Halogene Free.
Installation Temperature -40 to 140 Degrees Fahrenheit.
Storage Temperature -94 to 185 Degrees Fahrenheit.
Operation Temperature -58 to 185 Degrees Fahrenheit.
