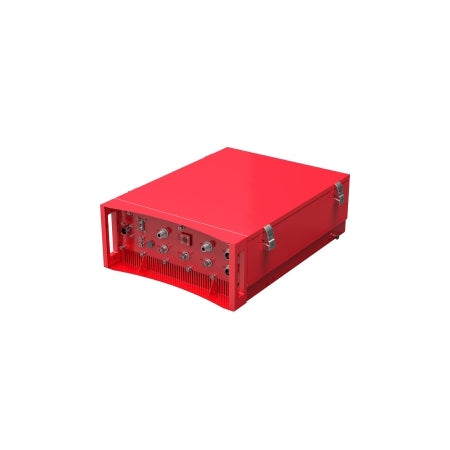

Comba Canada 0.5 Watt Public Safety Repeater, Class A, 800MHz Single Band 32 Channels, 27dBm, -48VDC

Comba Canada 0.5 Watt Public Safety Repeater, Class A, 800MHz Single Band 32 Channels, 27dBm, -48VDC
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: RX7W22-C8322748
Free overnight shipping on this item
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description
Comba Canada 0.5 Watt Public Safety Repeater is Class A BDA. It operates on 800 MHz Single Band over 32 Channels. Power supply source accepts -48VDC. Comba Telecom 800 MHz Class A Repeater (0.5W out, 90dB, DC, IC) -48 VDC is a single band public safety amplifier. Both Composite downlink and uplink are 27dBm with a gain of 90dB. Purchase includes a three-year manufacturer warranty.
Specifications:
Supported Bands: | 800 SMR/ PS. |
---|---|
Uplink Frequencies: | 806-824 MHz. |
Downlink Frequencies: | 851-869 MHz. |
Uplink Composite Power: | 27 dBm. |
Downlink Composite Power: | 27 dBm. |
Gain: | 90 dB. |
Gain Adjustment Range (GAR): | 0-30 dB. |
Channels: | 32. |
Noise: | 5 dB. |
Power Supply: | -48V DC |
Dimensions: | 20.9" height, 8.3" length and 15.4" Width. |
Weight: | 51 lbs. |
UPC: | 729198662233. |
Warranty: | Three Years. |
WARNING:
Per wireless telecommunication rules and regulations in Canada, this INDUSTRIAL GRADE bi-directional amplifier (BDA) must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only in conjunction with other parts such as donor and server antennas. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety BDA installation questionnaire for a quote if you require professional installation and assistance with consent and approval process.
