Comba Critical Point 2W USA Public Safety FirstNET BDA Class B 700MHz, 33dBm, -48VDC

Comba Critical Point 2W USA Public Safety FirstNET BDA Class B 700MHz, 33dBm, -48VDC

Comba Critical Point 2W USA Public Safety FirstNET BDA Class B 700MHz, 33dBm, -48VDC

    Best Price Guarantee. [1, 2, 3]
    • Product Url
    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

    No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.

    Free Lifetime Support. SKU / Model: RX7W22-07B333488

    Best Price Guarantee [1 2 3]

    Call for FREE consultation:

    1(855)846-2654

    Need installation quote, or help with designing a custom solution? Submit a request for quote.

    • Description
    • Reviews
    • Questions & Answers
    • Make An Offer
    • Warning

    Description

    Product Description

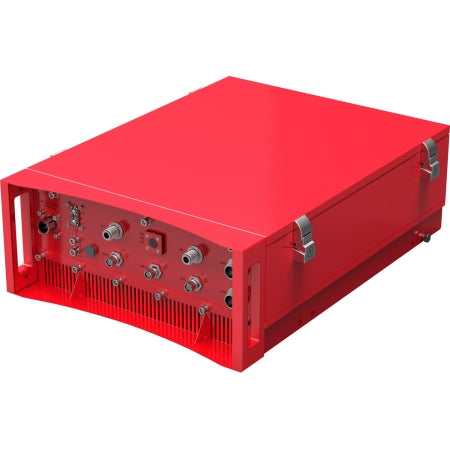

    Comba Critical-Point 2W USA Public Safety FirstNET BDA 700MHz, 33dBm, -48VDC. Comba Telecom 700 MHz Class B (90dB, 2W output) is a public safety amplifier with a downlink composite power of 33dBm per band and 90dB gain. FPGA digital configuration is a part of the design. Repeater backs a total of three sub bands per band. The public safety amplifier supports typical analog and digital P25 P1/P2 communications concurrently, including band 14 FirstNet LTE. License allowing the shifting to 800MHz from 700MHz is included, as well as a license key to easily upgrade to dual band. Upon detection of oscillation an automatic alarm and shutdown is activated. An intelligent programming is enhanced by web GUI with internal set test for isolation to avert amplifier isolation. Comba CriticalPoint's Dry contacts and enclosure for fire panel alarming are compliant with NFPA.

    Specifications:

    Bands: 700 MHz Public Safety Networks.
    Uplink Frequencies: 788-805 MHz.
    Downlink Frequencies: 758-775 MHz.
    Uplink Composite Power: 25 dBm.
    Downlink Composite Power: 33 dBm.
    Gain: 90 dB.
    RF Connectors: N Female.
    Power: -48VDC.
    Dimensions: Height 20.9", Length 8.3", Width 15.4".
    Weight: 51 lbs.
    UPC:

    729198556853.

    Warranty: Three Years.



    WARNING:

    Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety signal booster installation questionnaire for a quote if you require professional installation and assistance with consent and approval process.

    Reviews

    Customer Reviews

    Questions & Answers

    QUESTIONS & ANSWERS

    Have a Question?

    Be the first to ask a question about this.

    Ask a Question

    Data Sheet / User Guide

    Make An Offer

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • Input Correct Captcha

    Warning

    Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

    If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

    Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
