    Description

    Product Description

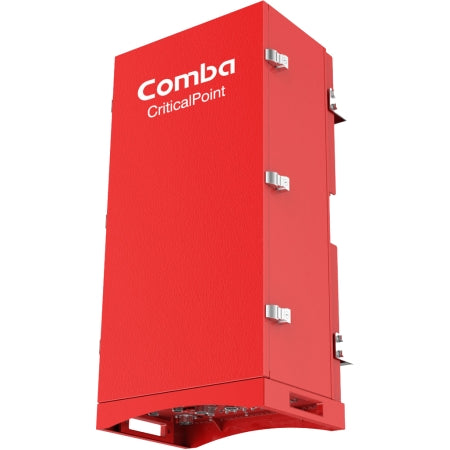

    Comba CriticalPoint Public Safety 5W duplexed single sub-band UHF BDA RXUHFA36DC1WA is DC powered and comes with either 1 MHz 470-512 MHz passband or 2 MHz 450-470MHz passband. While ordering, indicate the precise passband you want. UHF single sub-band BDA also supports traditional analog and digital P25 P1/P2 communications at the same time. Also supported include uplink channelized squelching and SNMP intelligent web-based configuration. A PA uplink shutdown guarantees minimum base station noise. In-built oscillation prevention is guaranteed by a compulsory isolation test. ALC (Auto Level Control) channelizing is also supported, including internal duplexing and simplex. Narrow band filters are up to 32.

    Summary:

    Comba Telecom RXUHF-A36DC-1WA is one of the Critical Point series Class A, DC powered, single sub-band, duplexed BDA. It can be provided with either a 2 MHz passband from 450-470 MHz or a 1 MHz passband from 470-512 MHz. Specify exact passband when ordering. Comba CriticalPoint UHF Public Safety Bi-Directional Amplifier.

    Compliances: NFPA 1221/IFC (dry contact alarms) and NFPA 1221/IFC (NEMA 4 enclosure).

    Highlights:

    • 36 dBm Composite Power Downlink.
    • 30 dBm Composite Power Uplink.
    • 0-30 GAR [Gain Adjustment Range (dB)].
    • Measures 31.5 inches (height) by 12.4 inches (length) by 15.4 inches (width).
    • 32 Channels.
    • -33-60 degree C range.
    • Weighs 77.0 lbs.
    • Type N-Female connectors.

    Features:

    • Supports P25 P1/P2 digital and conventional analog communications simultaneously.
    • Simplex and internal Duplexing supported.
    • Up to 32 narrow band filters.
    • Channelized Auto Level Control (ALC) supported.
    • Channelized uplink squelch supported.
    • Uplink PA shutdown bring the minimum noise for Base Station.
    • Built-in mandatory isolation test to prevent BDA oscillation.
    • Web based GUI for intelligent configuration, SNMP supported.
    • NFPA 1221 / IFC compliant dry contact alarms.
    • NFPA 1221 / IFC compliant NEMA 4 enclosure.

    Technical Specifications:

    Manufacturer: Comba Telecom, Inc.
    Composite Power Downlink: 36 dBm.
    Composite Power Uplink: 30 dBm.
    Gain Adjustment Range (dB): 0-30.
    Item Height: 31.5 inches.
    Number of Channels: 32.
    Temperature Range: -33-60 degrees centigrade.
    Item Weight: 77.0 lbs.
    Item Width: 15.4 inches.
    Qty/ Uom: 1 each.
    RF Connectors: Type N-Female.
    Item Length: 12.4 inches.



    WARNING:

    Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety DAS installer questionnaire for a quote, if you require professional installation and assistance with DAS design, consent and approval process with our certified public safety DAS installation service.
