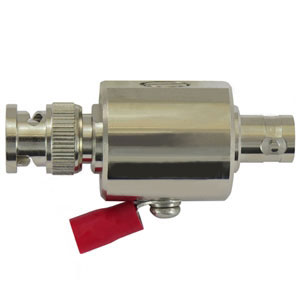

Lightning Surge Protector (50 Ohm): BNC-Male to BNC-Female

AFCLC03BMBFO2 - Lightning Surge Protector (50 Ohm): BNC-Male to BNC-Female

Lightning Surge Protector (50 Ohm): BNC-Male to BNC-Female

  • $39.99 USD
Best Price Guarantee.
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. *Some restrictions apply.

SKU: AFCLC03BMBFO2

Best Price Guarantee

Pay Over Time with PayPal Credit
No Payments + No Interest if paid in full in 6 months. For US customers. Choose PayPal at checkout for details.
Pay later with

Call for FREE consultation:

1-855-846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer

Description

Product Description

Lightning Surge Protector (50 Ohm) with BNC-Male to BNC-Female connectors for coaxial cables uses a gas discharge tube to shunt electrical surges which it transients to ground. Protect your sensitive communications equipment with this premium quality BNC Lightning Surge Protector (50 Ohm). The unit features coaxial BNC-Male to BNC-Female Bulkhead connectors and can be panel mounted. It works over all frequencies in the range of 0-3 GHz

Operating over the DC-3 GHz frequency range, it is compatible with 50 Ohm cell phone repeaters and boosters and other electronics that require BNC connectors.

This is our premium signal booster custom class 3 inventory item with UPC 697691011349. The design features a replaceable high power gas discharge tube capsule that protects communications equipment from lightning and ESD surges.

This device operates at a wide band and high power capability making it suitable for 50 Ohm radios, scanners, VSWR meters, CCTV cameras and video equipment plus sensitive test and measurement instruments.

It features a 90V gas tube which is ideal for low power transmitters and sensitive receivers. However, 230V, 350V or 600V replacement gas tubes are available for higher power transmitters.

Features.

  • Gas Tube Element can be replaced.
  • DC-3 GHz Broad Bandwidth.
  • Capable of handling High Surge Power.
  • 50 Ohm BNC Connectors.
  • DC Passing for Powering Remotely.
  • Low VSWR and Loss.

Applications.

  • Operates for all carriers.
  • 3G/4G LTE, PCS, Cellular Repeater.
  • VHF, UHF, GPS, LMR.
  • 802.1b/g/n WiFi Access Points, MIMO.
  • Wireless Video Systems.
  • Outdoor Antenna Feedlines and Tower Installations.
  • Amateur Scanners and Ham Radio.
  • Test and Measurement Equipment.
  • Protection of CCTV Video Equipment with 50 Ohm impedance.

Specifications:

Frequency Range DC-3 GHz
VSWR < 1.2:1
Insertion Loss < 0.2 dB
Impedance 50 Ohms
Gas Tube DC Breakdown Voltage 90V+/-20% (230V, 350V and 600V replacement gas tubes are also available)
Gas Tube Impulse Breakdown Voltage 1000V 20%
Gas Tube Insulation Resistance 2000 MegOhm min
Rated Surge Current 20 KA max
Connectors BNC-Male to BNC-Female
Dimensions 2.6 x 1.3 x 1.0 Inches (57 x 32 x 25 mm)
