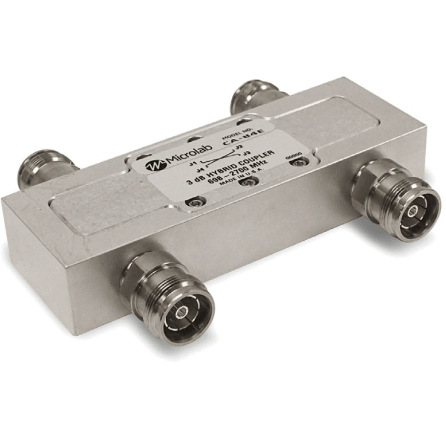

Low PIM Hybrid Coupler 2x2 694-2700 MHz 3 dB 4.3-10 (Microlab CA-84E)

Low PIM Hybrid Coupler 2x2 694-2700 MHz 3 dB 4.3-10 (Microlab CA-84E)

Low PIM Hybrid Coupler 2x2 694-2700 MHz 3 dB 4.3-10 (Microlab CA-84E)

  • Regular price $549.99 USD Sale price$329.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Other restrictions may apply. Please contact us for details.

Pay later with : No Payments + No Interest if paid in full in 6 months. For US customers. Choose PayPal at checkout for details.

Free Lifetime Support. SKU / Model: CA-84E

Best Price Guarantee [1 2 3]

Pay Over Time with PayPal Credit
No Payments + No Interest if paid in full in 6 months. For US customers. Choose PayPal at checkout for details.
Pay later with

Call for FREE consultation:

1-855-846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer

Description

Product Description

Low PIM Hybrid Coupler, 2x2, 694 to 2700 MHz, 3 dB, 4.3-10 (Microlab CA-84E). CA-84E Hybrid Coupler has been designed to meet the special needs of the wireless market. It is most commonly used to combine two wireless carriers in the band to a single antenna feed or distribution cable. This requires the termination of one output port in 50W and results in a 3 dB loss in each signal. In situations where two similar feeds are required, as required for an in-building application, both outputs may be used eliminating the need for a termination and the 3 dB loss. RoHS Compliant. RoHS stands for Restriction of Hazardous Substances. RoHS restricts the use of specific hazardous materials found in electrical and electronic products (known as EEE). UPC: 729198871062. SKU: CA84E.

Features.

  • Standard Bandwidth for commercial wireless applications.
  • Guaranteed Low PIM.
  • 30dB Port to Port Isolation.
  • Models for Outdoor Environments.
  • Low VSWR and Dissipative Loss.
  • Rail Standard EN 50155:2007 (Class T1) Certified.
  • High Reliability, Moisture sealed.
  • Easy mounting to pole or wall.

What is low PIM?

PIM stands for Passive Inter-Modulation. Its unit of measurement is Decibel (dB). In essence, its meaning is, "unwanted signals generated by non-linear mixing of 2 or more frequencies". Therefore, "high PIM" results in weaker cell reception output and a limited bandwidth that supports fewer users. On other hand, "low PIM" means stronger signals with higher bandwidth to support more users simultaneously. For lower PIM, the low PIM hardware connections are designed in a precise manner for achieving near-perfect, seamless connectivity. To minimize PIM further, testing is also required to make sure low PIM hardware is installed tightly or perfectly, as intended. Read more about low PIM antennas and cable connectors.

Specifications:

Frequency Range 694-2700 MHz
Coupling 3 dB nominal.
Coupled Loss (dB) 3.3
Directivity 30 dB
Maximum Power 80W
Maximum VSWR 1.20:1
Isolation >30
PIM Typical -161 dBc
RF Connectors 4.3-10 Female
Ingress Protection IP64
Temperature Range -35 to 65 degrees centigrade
Weight 1.44 lbs
Item Width 5.99 inches
Item Length 3.21 inches
Item Height 1 inch
Manufacturer Microlab / FXR
