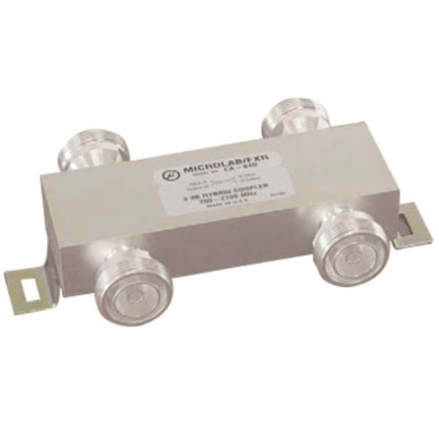

Low PIM Hybrid Coupler 7-16 DIN 694-2700 Mhz (Microlab / FXR CA-84DP)

Low PIM Hybrid Coupler 7-16 DIN 694-2700 Mhz (Microlab / FXR CA-84DP)

Low PIM Hybrid Coupler 7-16 DIN 694-2700 Mhz (Microlab / FXR CA-84DP)

  • Regular price $399.00 USD Sale price$355.00 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: CA-84DP

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

RF signal distribution tap summary: Low PIM 3dB Hybrid Coupler 7-16 DIN 694-2700 Mhz (Microlab / FXR CA-84DP). Microlab 3db Hybrid Coupler. Multi-Band 694-2700 MHz. 30dB isolation. 7-16 DIN connectors. Single and Multi-band ranges for Tetra, Cellular, PCS and UMTS. RoHS Compliant. RoHS stands for Restriction of Hazardous Substances. RoHS restricts the use of specific hazardous materials found in electrical and electronic products (known as EEE). UPC: 729198490638. SKU: CA84DP.

Features.

  • Standard Bandwidth for commercial wireless applications.
  • Guaranteed Low PIM.
  • 30dB Port to Port Isolation.
  • Models for Outdoor Environments.
  • Low VSWR and Dissipative Loss.
  • Rail Standard EN 50155:2007 (Class T1) Certified.
  • High Reliability, Moisture sealed.
  • Easy mounting to pole or wall.

What is low PIM?

PIM stands for Passive Inter-Modulation. Its unit of measurement is Decibel (dB). In essence, its meaning is, "unwanted signals generated by non-linear mixing of 2 or more frequencies". Therefore, "high PIM" results in weaker cell reception output and a limited bandwidth that supports fewer users. On other hand, "low PIM" means stronger signals with higher bandwidth to support more users simultaneously. For lower PIM, the low PIM hardware connections are designed in a precise manner for achieving near-perfect, seamless connectivity. To minimize PIM further, testing is also required to make sure low PIM hardware is installed tightly or perfectly, as intended. Read more about low PIM antennas and cable connectors.

Specifications:

Frequency Range 694-2700 MHz
Coupling 3 dB nominal.
Coupled Loss (dB) 3
Directivity 30 dB
Maximum Power 80W
Maximum VSWR 1.20:1
Isolation >30
PIM Typical -161 dBc
RF Connectors 7/16 DIN Female
Ingress Protection IP64
Temperature Range -35 to 65 degrees centigrade
Weight 1.5 lbs
Item Width 1.34 inches
Item Length 5.99 inches
Item Height 3.34 inch
Manufacturer Microlab / FXR



Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

Kevin K. of Anderson, California gave the following review:

Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.

Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.

If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
