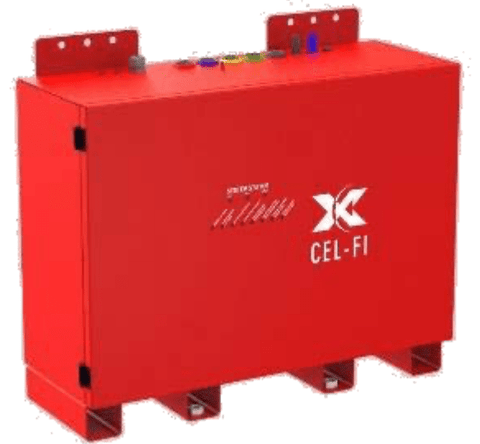

Monitor and Battery Backup for Cel-Fi QUATRA RED DAS - LARGE, Does Not Include Battery

Monitor and Battery Backup for Cel-Fi QUATRA RED DAS - Large, Does Not Include Battery

Monitor and Battery Backup for Cel-Fi QUATRA RED DAS - LARGE, Does Not Include Battery

    Best Price Guarantee. [1, 2, 3]
    • Product Url
    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

    Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

    Free Lifetime Support. SKU / Model: 591PQPSNEXT1NEXT1612/F42-10L-100

    Best Price Guarantee [1 2 3]

    Call for FREE consultation:

    1(855)846-2654

    Need installation quote, or help with designing a custom solution? Submit a request for quote.

    • Description
    • Reviews
    • Questions & Answers
    • Make An Offer
    • Warning

    Description

    Product Description

    Monitor and Battery Backup Unit (Large, Does Not Include Battery) for Cel-Fi QUATRA RED DAS (Distributed Antenna System) is the central point of the Cel-Fi QUATRA RED system. It provides constant direct current, alarming, monitoring and battery charging capabilities. Integrates a wireless LTE modem and a wired Ethernet port for remote access to all the components via the Cel-Fi WAVE portal or the WAVE PRO app. Is NEMA 4 rated and UL2524 compliant. It supports 12 hours or 24 hours battery back up configurations. Two size versions available to optimize power requirements and installation cost. This listing is for the larger version. It supports up to 6 Coverage Units (CUs). The model # is F42-10L-100 / F4210L-100 / F42-10L100 / F4210L100. SKU is 591PQPSNEXT1NEXT1612.

    Key features:

    • Provides direct constant current to all the active components in the system including the Remote Annunciator Panel (RA) and the Emergency Power-off Switch (EPO) via PoE.
    • Supports automatic supervisor signals for malfunction of the ERRCS.
    • LTE modem built-in and integrated LAN Port for remote monitoring of the entire system.
    • UL 2524 and FCC part 15 compliant.
    • NEMA-4 enclosure.

    Specifications.

    Part Number F42-10L-100.
    Enclosure Size (mm) 178 × 690 × 200.
    Weight without batteries 30 kg.
    Input voltage 110 VAC.
    Output voltage 54 VDC.
    Operating Temperature 0 Degrees C – 50 Degrees C.
    Operating Humidity 95 Percent.
    LAN Port RJ45.
    Port Capability 10 Mbps.
    PoE Port Power 10 Watts.
    Antenna Port SMA.



    Supported Alarms.

    • Normal AC power.
    • Battery Charger Fail.
    • Donor Antenna Disconnection.
    • System Component Malfunction.
    • Loss of Normal AC power.
    • Low Battery Capacity at 30 Percent of Capacity.
    • Active RF Emitting Device Malfunction.
    • Donor Antenna Malfunction.



    Supports 12 hrs. or 24 hrs. battery back up configurations.

    It supports 12 hours or 24 hours battery back up configurations as shown below depending upon number of coverage units connected and whether operating on LMR single band, LMR dual band, LMR plus LTE.

    Battery back up capacity

    Monitor and Battery Backup Unit (MBBU) System Interconnection:

    Monitor and Battery Backup Unit (MBBU) System Interconnection
