Omni Magnet Base Antenna for Cellular 2G, 3G, 4G, LTE and WiFi

Omni Magnet Base Antenna for Cellular 2G, 3G, 4G, LTE and WiFi

  • $29.99 USD
Best Price Guarantee.
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. *Some restrictions apply.

SKU: AFCAUM0727G5SML4

Best Price Guarantee

Pay Over Time with PayPal Credit
No Payments + No Interest if paid in full in 6 months. For US customers. Choose PayPal at checkout for details.
Pay later with

Call for FREE consultation:

1-855-846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer

Description

Product Description

Omni Magnet Antenna for Cellular 2G, 3G, 4G, LTE and WiFi is a wide multi-band antenna that enables use for many frequency bands. This mobile magnetic antenna compatibility extends for all major cellular carriers in USA and Canada. It can be used in all vehicles including cars, trucks, RVs, boats, etc.

The SignalBooster.com high performance antenna allows use of many frequency bands with a single antenna. This omni antenna works over the 2G, 3G, 4G, LTE and 2.4 GHz WiFi frequency bands, and covers 698 to 960, and 1710 to 2700 MHz. It is suitable to use on 3G, 4G, AWS, LTE, AMPS, XLTE, GSM, EDGE, UMTS, GPRS, TDMA and CDMA services. It is compatible with all major carriers, including Sprint, AT&T, Telus, T-Mobile, Bell Canada, Verizon, DigiCel, Rogers and many more.

This is our premium signal booster custom lot # 4, 5, and 6 inventory item. Magnetic base antenna UPC #'s are 697691010311, 697691010328, and 697691010335 for antenna with cable-attached connectors SMA Male, TS-9, and RP-SMA respectively.

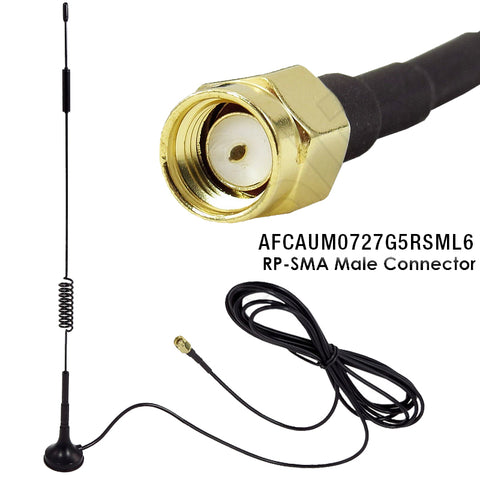

This antenna has a magnetic base with a 10 foot (3m) coax lead terminated with either a TS9 Male (Plug), RP-SMA, or SMA Male connector:

  • The 50 Ohm SMA Male Connectors are compatible with 50 Ohm Boosters including Hiboost, Wilson weBoost and Surecall.
  • TS9 (TS-9) Connectors are used on many Cellular Modems and Portable Devices (see below for more examples of such wireless connectivity products).
  • Most WiFi applications require a RP-SMA connector.

Features.

  • Omnidirectional Coverage.
  • 698-960, 1710-2700 MHz bandwidth.
  • Long Antenna Lead.
  • Magnetic Base.

Applications.

  • Mobile Hotspot signal boost.
  • GSM, 2G, 3G, 4G and LTE Cellular Applications.
  • 900MHz and 2.4GHz Wireless Video Applications.
  • Suitable for Indoor and Outdoor use.

Omni Antenna Specifications:

Frequency Range 698 to 960 / 1710 to 2700 MHz
Gain (Maximum) 5dBi @ 1710 to 2700 MHz and 2dBi @ 698 to 960 MHz
Polarization Vertical
Vertical Beamwidth 30 / 50 Degrees
VSWR <2.5
Impedance 50 Ohm
Cable length 10 Ft. (3.0 Meters)
Connector Type SMA Male or TS9 Male (Plug) or RP-SMA Male
Maximum Power 30 Watts
Antenna Length 12.6 Inches (320 mm)
Temperature Range -40°F to 176°F (-40°C to 80°C)
Weight 0.2 Lbs. (0.9Kg)

Optional TS9 (TS-9) Connectors are used on many Cellular Modems and Portable Devices including those by:

  • Aircard.
  • AT&T.
  • Franklin.
  • Huawei.
  • Netgear.
  • Novatel.
  • Sierra Wireless.
  • Sprint.
  • Verizon Wireless.
  • Zing.
  • ZTE.

Specific mobile hotspot devices that the TS-9 connector will fit include:

Aircard 340U AT&T Aircard 815S (Unite) AT&T Beam AC340U AT&T Unite Pro (Air Card 781S) AT&T USB Momentum LTE modem AT&T Velocity USB Modem MF861 Franklin U770 (Sprint Tri-Mode) Huawei E368 (AT&T Force 4G)
Huawei E397 (US Cellular UML397) Netgear 340U (AT&T Beam) Netgear 341U (Sprint) Novatel USB551L (Verizon 4G/LTE) Novatel MC679 Novatel USB727 Novatel USB760 Sierra 305 (AT&T Lightning)
Sierra 308 (AT&T Shockwave) Sierra 312U (Telstra) Sierra 313U (AT&T Momentum) Sierra 320U (Telstra) Sierra 330U (Rogers) Sierra 340U (AT&T Beam) Sierra 598 Sierra 885 (AT&T Mercury)
Sierra 889 (AT&T Compass) Sprint ZTE Warp Connect MF920VS Verizon Jetpack 4460l Verizon Jetpack AC791L Verizon MiFi U620L Verizon Jetpack MiFi 6620L Verizon Jetpack MiFi 7730L Zing 771S
ZTE Warp Hotspot ZTE Warp Connect MF920VS
