RFS 1/2" Cable Prep Tool for LCF12 and OMNI FIT Connectors

RFS 1/2" Cable Prep Tool for LCF12 and OMNI FIT Connectors

RFS 1/2" Cable Prep Tool for LCF12 and OMNI FIT Connectors

  • $189.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: TRIM-SET-L12-D01

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Data Sheet / User Guide
  • Make An Offer
  • Warning

Description

Product Description

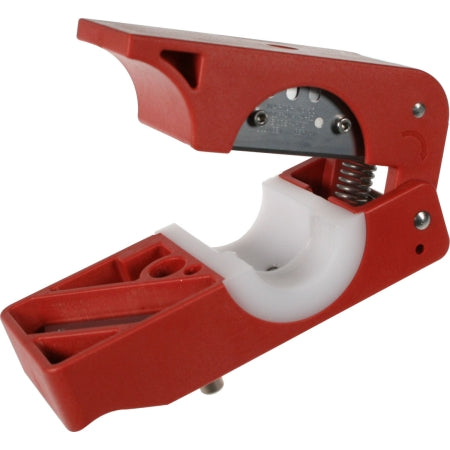

Combination preparation tool TRIM-SET-L12-D01 for CELLFLEX 1/2" cables and connector families OMNI FIT Premium D01, OMNI FIT Standard B32 and RAPID FIT 060/062 + 070/072.

This special trimming tool with part # TRIMSETL12D01 improves the cable preparation prior to connector attachment. No further tools are required to prepare the cable for the connector attachment. This is due to the unique design of the trimming tool, which combines all necessary functions in one tool. It can be used for all CELL FLEX LCF12-50 foam dielectric cables in combination with the OMNI FIT Premium connector family D01, OMNI FIT Standard family B32 and RAPID FIT families 060/062 + 070/072.

The Universal Trimming Tools Series offers the additional advantage to be convertible to different connector families and cable sizes (1/4", 3/8", 1/2" and 7/8") only by changing the insert. Different inserts are available as optional items, for references see below or contact your RFS sales contact.

Features:

  • Universal Trimming Tool concept.

    One basic tool can be used for cables sizes 1/4", 3/8", 1/2" and 7/8" only by changing the insert.

  • Precision cable preparation tool.

    Always exact and repeatable trimming dimensions.

  • Intuitive use of tool.

    Easy and precise preparation of cables for connector installation.

  • Long-lasting cutting blades.

    Easy to clean, smooth dielectric surface improves IM performance.

Technical Features.

STRUCTURE:

Product Line Coaxial Cable Accessories
Product Type Tool
Transmission Line Type LCF12
Coaxial Cable Type Foam Dielectric
Cable Size 1/2"
Type of Tool Combination Cable Preparation Tool
Configuration Universal Trimming Tool



ACCESSORIES:

Spare Part / Useful Accessories Spare Replacement Blade: TRIM-B30.



MECHANICAL SPECIFICATIONS:

Color Red
Material Fiberglass reinforced Polycarbonate
RF Connectors 7/16 DIN Female / 7/16 DIN Male / N Female / N Male



PACKAGING INFORMATION:

Package Quantity 1
Weight per piece 0.2 Kg / 0.44 Lb



Contact us for other available inserts to convert the tool for use with other connector series or cable sizes:

  • TRIM-I14-D01 for connectors D01 on cable LCF14-50.
  • TRIM-IS14-D01 for connectors D01 on cable SCF14-50.
  • TRIM-IS38-D01 for connectors 070 and D01 on cable SCF38-50.
  • TRIM-IL12-D01 for connectors 060, 070, B32 and D01 on cable LCF12-50.
  • TRIM-IS12-D01 for connectors 070 and D01 on cable SCF12-50.
  • TRIM-IS12-C02 for connectors C02 on cable SCF12-50.
  • TRIM-IL78-C02 for connectors B32 and C02 on cable LCF78-50.
  • TRIM-IL78-D01 for connectors 062, 072 and D01 on cable LCF78-50.
