Description
Product Description

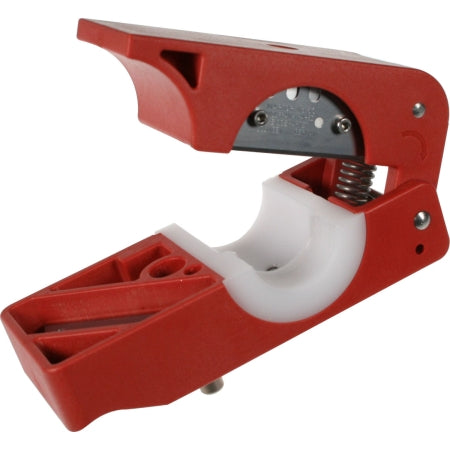

Combination preparation tool TRIM-SET-L78-D01 for CELLFLEX 7/8" cables. For connector family OMNI FIT Premium D01.
This special trimming tool with part # TRIMSETL78D01 improves the cable preparation prior to connector attachment. No further tools are required to prepare the cable for the connector attachment. This is due to the unique design of the trimming tool, which combines all necessary functions in one tool. It can be used for CELL FLEX LCF78-50 foam dielectric cables in combination with the OMNI FIT Premium connector family D01.
The Universal Trimming Tools Series offers the additional advantage to be convertible to different connector families and cable sizes (1/4", 3/8", 1/2" and 7/8") only by changing the insert. Different inserts are available as optional items, for references see below or contact your RFS sales contact.
Features:
-
Universal Trimming Tool concept.
One basic tool can be used for cables sizes 1/4", 3/8", 1/2" and 7/8" only by changing the insert.
-
Precision cable preparation tool.
Always exact and repeatable trimming dimensions.
-
Intuitive use of tool.
Easy and precise preparation of cables for connector installation.
-
Long-lasting cutting blades.
Easy to clean, smooth dielectric surface improves IM performance.
Technical Features.
STRUCTURE:
Product Line | Coaxial Cable Accessories |
---|---|
Product Type | Tool |
Transmission Line Type | LCF78 |
Coaxial Cable Type | Superflexible Foam Dielectric |
Cable Size | 7/8" |
Type of Tool | Combination Cable Preparation Tool |
Configuration | Universal Trimming Tool |
ACCESSORIES:
Spare Part / Useful Accessories | Spare Replacement Blade: TRIM-B30. |
---|
MECHANICAL SPECIFICATIONS:
Color | Red |
---|---|
Material | Fiberglass reinforced Polycarbonate |
RF Connectors | 7/16 DIN Female / 7/16 DIN Male / N Female / N Male |
PACKAGING INFORMATION:
Package Quantity | 1 |
---|---|
Weight per piece | 0.19 Kg / 0.42 Lb |
Contact us for other available inserts to convert the tool for use with other connector series or cable sizes:
- TRIM-IS14-D01 for connectors D01 on cable SCF14-50.
- TRIM-IL14-D01 for connectors D01 on cable LCF14-50.
- TRIM-IS38-D01 for connectors 070 and D01 on cable SCF38-50.
- TRIM-IL12-D01 for connectors B32 D01 on cable LCF12-50.
- TRIM-IL12-D01 for connectors 060, 070, B32 and D01 on cable LCF12-50.
- TRIM-IS12-D01 for connectors 070 and D01 on cable SCF12-50.
- TRIM-IS12-C02 for connectors C02 on cable SCF12-50.
- TRIM-IL78-C02 for connectors B32 and C02 on cable LCF78-50.
