RFS Trim Set / Combination Prep Tool for 1/2 inch LCF12 cables & C02 connectors

RFS Trim Set / Combination Prep Tool for 1/2 inch LCF12 cables & C02 connectors

RFS Trim Set / Combination Prep Tool for 1/2 inch LCF12 cables & C02 connectors

  • $199.00 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: TRIM-SET-L12-C02

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Data Sheet / User Guide
  • Make An Offer
  • Warning

Description

Product Description

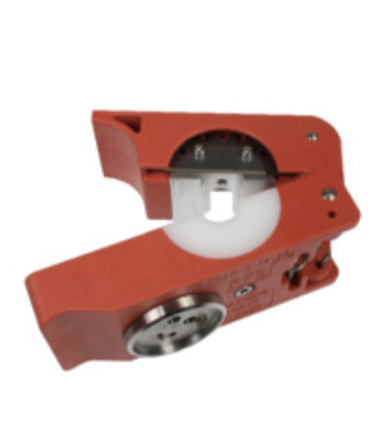

Trim Set and Combination Prep Tool TRIM-SET-L12-C02 for CELLFLEX 1/2 inch cables. For connector family Omni Fit C02. This is a combination preparation tool (Universal Trimming Tool). This special trimming tool improves the cable preparation prior to connector attachment. No further tools are required to prepare the cable for the connector attachment. This is due to the unique design of the trimming tool, which combines all necessary functions in one tool.

This part # TRIMSETL12C02 can be used for all CELL-FLEX LCF12-50 cables in combination with OMNI FIT Standard connector family C02. This Universal Trimming Tools Series offers additional advantage to be converted to different connector series and CELL FLEX cable sizes (1/4", 3/8", 1/2" and 7/8") only by changing its insert (sold separately, listed at bottom):

Features:

  • Universal Trimming Tool concept.

    One basic tool can be used for cables sizes 1/4", 3/8", 1/2" and 7/8" only by changing the insert.

  • Precision cable preparation tool.

    Always exact and repeatable trimming dimensions.

  • Intuitive use of tool.

    Easy and precise preparation of cables for connector installation.

  • Long-lasting cutting blades.

    Easy to clean, smooth dielectric surface improves IM performance.

Technical Features.

STRUCTURE:

Product Line Coaxial Cable Accessories
Product Type Tool
Transmission Line Type LCF12
Coaxial Cable Type Foam Dielectric
Cable Size 1/2"
Type of Tool Combination Cable Preparation Tool
Configuration Universal Trimming Tool



ACCESSORIES:

Spare Part / Useful Accessories Spare blades : TRIM-B30



MECHANICAL SPECIFICATIONS:

Color Red
Material Fiberglass reinforced Polycarbonate



PACKAGING INFORMATION:

Package Quantity 1
Weight per piece 0.2 Kg / 0.44 Lb



Contact us for other available inserts to convert the tool for use with other connector series or cable sizes:

  • TRIM-I14-D01 for connectors D01 on cable LCF14-50.
  • TRIM-IS14-D01 for connectors D01 on cable SCF14-50.
  • TRIM-IS38-D01 for connectors 070 and D01 on cable SCF38-50.
  • TRIM-IL12-D01 for connectors 060, 070, B32 and D01 on cable LCF12-50.
  • TRIM-IS12-D01 for connectors 070 and D01 on cable SCF12-50.
  • TRIM-IS12-C02 for connectors C02 on cable SCF12-50.
  • TRIM-IL78-C02 for connectors B32 and C02 on cable LCF78-50.
  • TRIM-IL78-D01 for connectors 062, 072 and D01 on cable LCF78-50.

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide


User Guide

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

Kevin K. of Anderson, California gave the following review:

Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.

Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.

If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
