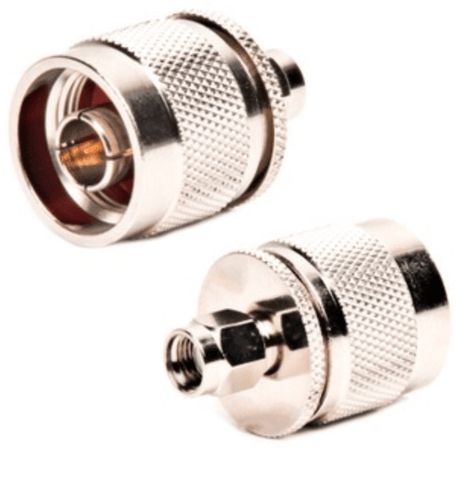

Type N-Male to RP-SMA Male Connector
Type N-Male to RP-SMA Male Connector
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: NMRSMAFC
- Questions & Answers
- Make An Offer
Type N-Male to RP-SMA-Male Connector or Adapter For Antenna Cables.
RF Adapter RP-SMA male to N-Type male helps interconnect devices with N female and RP-SMA female interfaces. Devices include antennas, cables, and wireless devices. It has nickel-plated brass body for enhanced corrosion resistance. It is the most weather-resistant, corrosion-resistant plating. It is rated for outdoor use, and suitable for indoor applications. Gold plated center contact for reduced signal loss. Use for Coaxial extension, coaxial interface conversion, and coax retrofit applications.
Compatible with all Wi-Fi standards including 2.4 GHz and 5 GHz applications: 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A. Compatible with all cellular wireless platforms: 2G, 3G, 4G, LTE, LTE-M, LTE-A, GSM, WiMax, 5G. Works with all data and voice applications. Compatible with IoT wireless, automation and Machine to Machine (M2M) systems: RFID, Bluetooth, ZigBee, LoRa, NB-IoT.
RF antenna cable adapter's range of frequency band compatibility is from 0 GHz to 18 GHz). It offers consistently low broadband VSWR. It has impedance matching to 50 Ohm gear. This makes them compatible and compliant for all the above applications.
Material Structure of Adaptor.
- Connector Body: Weather-proofed for long-term outdoor exposure and manufactured from nickel plated brass. Of all the plated brass alloys, nickel-plated brass is the most resistant to corrosion – it is even better than gold-plated.
- Center Contact: Manufactured from beryllium copper and gold-plated to ensure minimal signal loss.
- Crimp Ferrule: Manufactured from nickel-plated copper.
- Insulators are PTFE.
REACH and RoHS Compliant.
This adapter is fully compliant with REACH and RoHS 3 restrictions with respect to heavy metals and other toxins.
N-Male Connector Notable Features.
- N-Male connectors provide a durable, weatherproof connection.
- Manufactured from nickel-plated brass, this is the best composition for weatherproofing and rust and corrosion proofing for long-term exposure to the elements.
- These N-Connectors deliver a reliable performance from 900 MHz to 12.5 GHz.
- Inside diameter of the N-Male connector is 1.57 cm (0.620 inches).
- The gender for N-Connectors is counterintuitive, which refers to the coaxial cable pins on the inside (not the threads). N-Male has threads on the inside (N-Female has threads on outside).
- You will typically find N-Type connectors on large outdoor antennas; they are the largest of the RF connector types.
- Featuring threaded coupling mechanisms, our N-Type adapters are fully interchangeable with N-Type connectors that have been made to the MIL-C-39012 specification. You will find these connectors being used in systems where top-quality RF and mechanical performance are essential.
RP-SMA Connector Notable Feature.
RP-SMA Male Diameter: Inside diameter is 7.9375 mm (5/16 inch) – this is the inside diameter where the threads are.
Gender Determination of RP-SMA.
- RP-SMA gender is counterintuitive, which refers to the pins inside (not the threads).
- Threads of the RP-SMA male are on the inside.
- RP-SMA male has an inside socket (not a pin), confirmed by the fact that RP stands for Reverse Polarity. The configuration of the socket/pin is female, although it appears to be male – and vice versa.
Other RP-SMA Characteristics.
- RP-SMA male is also known as a "plug" (female connector is also known as a "jack").
- An RP-SMA male connector fits products with an SMA-female connector.
- We provide an RP-SMA wrench to help with the installation of cables, antennas, and adapters with SMA or RP-SMA connectors.
- RP-SMA connectors are incompatible with typical commercially-available Type-F coaxial connectors. While they may look similar, Type-F connectors are actually a different size and will not pair with SMA or RP-SMA connectors without the use of an adapter.
- The RP-SMA connector is a round, screw-type connector. It has medium-sized, threaded coupling connectors which are rated from the lowest DC frequencies up to 18 GHz.
