    Product Description

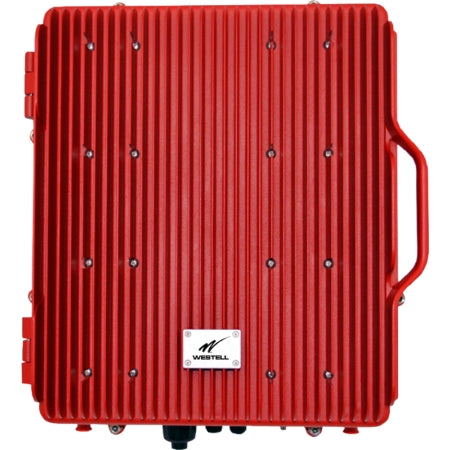

    Westell CS33734834DNA digital Class A 700 and 800 Public Safety signal booster offers 80 dB gain, 2.5 W per band, AC Power. It improves the quality of critical communications for first responders. Westell digital Class A Signal Boosters can handle a larger coverage area because of their higher power, and support 32 channels (uplink and downlink), near/far mitigation, an integrated spectrum analyzer. It is compliant with NFPA code. UPC: 646444955621. Manufacturer Part #: CS33-734834-DNA.

    Westell CS33-734834-DNA NPSPAC in-building bi-directional amplifier provides amplification of +80 dB gain for uplink and downlink wireless signals. This wireless signal booster operates within the SMR 800 MHz NPSPAC public safety band (821 - 824 MHz and 866 - 869 MHz). The wall-mountable BDA has composite output of +27 dBm, included 120 VAC power supply, and N female connectors. Features of this indoor amplifier include LCD readout, easy-to-use menu system, dual controllers, integrated digital power/AGC meter and automatic isolation control. Typical applications of the Westell in-building amplifier include warehouses, parking garages, convention centers, campus environments and more.


    • Digital Class A.
    • Channel Selective.
    • 34 dBm (2.5 Watts per band).
    • Supports up to 32 Channels (Uplink and Downlink).
    • Class B capable with up to 4 programmable passbands.
    • NFPA 1221 & 72 (2016) compliant.
    • IP67/NEMA 4X enclosure.
    • Uplink and Downlink squelch, per channel.
    • UL Listed.
    • FirstNet Ready.
    • Independent power and gain control per filter.
    • 80 dB Gain.
    • Integrated spectrum analyzer.
    • Dry Contacts for fire panel connection.
    • Supports SNMP.
    • Web-Based GUI.

    Technical Specifications.

    Manufacturer: Westell, Inc.
    Frequency Range: Uplink: 788-805/ 794-806/ 806-824MHz, Downlink: 758-775/ 764-776/ 851-869 MHz.
    Channels Supported: Up to 32 Uplink per band, Up to 32 Downlink per band. When Firstnet enabled, it supports: Up to 30 Uplink per band, Up to 30 Downlink per band.
    Gain Adjustment Range: 28 dB, 1 dB increments.
    Passband: Channel Selective (90 KHz, 45 KHz, 30 KHz, 20 KHz, and 15 KHz BW).
    IMD: < -13 dBm.
    Noise Figure: 9.0 dB Max @ max gain.
    VSWR: 1.5:1 Max.
    Commercial Power Requirements: AC (110/220 VAC).
    Composite Power Uplink: 21 dBm (1/4 Watt).
    Composite Power Downlink: 33 dBm (2 Watts per band).
    Installation: Professional installation by certified installers.
    Gain: 80 dB.
    RF Connectors: N Female.
    Impedance: 50 Ohm.


    Important Note:

    This is an industrial grade signal booster kit. It requires professional installation by a certified installer. Our pro installers will design your system per our free Public Safety Design Configuration Assistance Program for areas over 10k sq. ft. requiring multiple interior antennas. Whether your building needs full coverage because it has no signal indoors, or it needs partial coverage (only some areas are failing inspection), our installation experts will design an efficient and cost-effective solution that is customized to meet all your requirements. We will then send you the design along with a bill of materials (BOM), installation quotation, and installing timeframe. Please submit public safety network coverage details so we may proceed to provide information to purchase, design and install the best public safety signal booster system that meets your needs and passes the most rigorous in-building fire safety inspection for your city and state.

    WARNING. Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please contact us for a quote if you require professional installation and assistance with consent and approval process.
