Description

Product Description

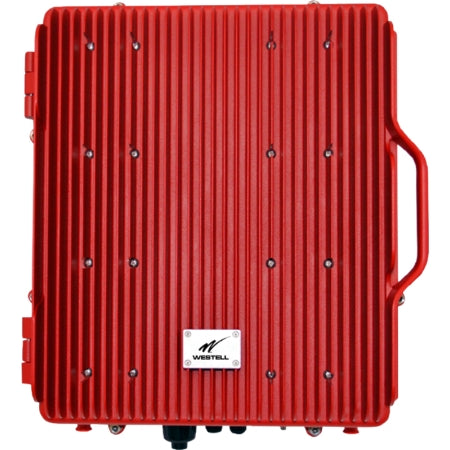

Westell CS338378ND digital Class A, 800 MHz Public Safety signal amplifier offers 80dB gain, 5W, and DC Power. It improves the quality of critical communications for first responders. Westell Class A Signal Boosters are UL-Listed and can handle a larger coverage area because of their higher power. This public safety bands repeater supports 32 channels (uplink and downlink), near/far mitigation, an integrated spectrum analyzer. It is compliant with NFPA code. UPC: 646444105309. Manufacturer Part #: CS33-837-8ND.

Westell CS33-837-8ND is a single band, NFPA 72 (2016) compliant, Class A public safety radio amplifier that supports 800 MHz Public Safety frequencies. It offers 37 dBm (5W) Power Output (DL/UL) and provides 80dB gain. It is UL listed. Each band can be turned on or off and has independent power and gain control. Features Integrated spectrum analyzer, uplink and downlink squelch (per channel), built-in oscillation control and self-healing , shutdown in the event of non-correctable conditions and dry contacts for fire panel connection. +24 to -48VDC operation.

Highlights:

  • Digital Class A.
  • Channel Selective.
  • 37 dBm (5 Watts).
  • Supports up to 32 Channels (Uplink and Downlink).
  • Class B capable with up to 4 programmable passbands.
  • NFPA 1221 & 72 (2016) compliant.
  • IP67/NEMA 4X enclosure.
  • Uplink and Downlink squelch, per channel.
  • UL Listed.
  • Independent power and gain control per filter.
  • 80 dB Gain.
  • Integrated spectrum analyzer.
  • Dry Contacts for fire panel connection.
  • Supports SNMP.
  • Web-Based GUI.

Technical Specifications.

Manufacturer: Westell, Inc.
Bands Supported: 800 MHz Public Safety bands.
Channels Supported: Up to 32 Uplink, and up to 32 Downlink.
Gain Adjustment Range: 28 dB, 1 dB increments.
Passband: Channel Selective (90 KHz, 45 KHz, 30 KHz, 20 KHz, and 15 KHz BW).
IMD: < -13 dBm.
Noise Figure: 7.0 dB Max @ max gain.
VSWR: 1.5:1 Max.
Commercial Power Requirements: DC (+24VDC).
Composite Power Uplink: 24 dBm (1/4 Watt).
Composite Power Downlink: 37 dBm (5 Watts).
Installation: Professional installation by SignalBooster.com certified installers.
Gain: 80 dB.
RF Connectors: N Female.
Impedance: 50 Ohm.



Important Note:

This is an industrial grade signal booster kit. It requires professional installation by a certified installer. Our pro installers will design your system per our free Public Safety Design Configuration Assistance Program for areas over 10k sq. ft. requiring multiple interior antennas. Whether your building needs full coverage because it has no signal indoors, or it needs partial coverage (only some areas are failing inspection), our installation experts will design an efficient and cost-effective solution that is customized to meet all your requirements. We will then send you the design along with a bill of materials (BOM), installation quotation, and installing timeframe. Please submit public safety network coverage details so we may proceed to provide information to purchase, design and install the best public safety signal booster system that meets your needs and passes the most rigorous in-building fire safety inspection for your city and state.

WARNING. Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please contact us for a quote if you require professional installation and assistance with consent and approval process.
