Cell Phone Signal Booster Installation Service Case Study

Feb 24, 2018

Cell Phone Signal Booster Installation Service Case Study

Successful Installation of Telco Booster System Ends KFORCE Weak Cellular Reception Problems in Their Connecticut Office.

Location Details.

After realizing a weak cell phone signal in their busy 3 Corporate Drive Suite 214, Shelton, CT 06484 Connecticut office was affecting their business, KForce.com had a cell phone signal booster system installed ending their weak cellular signal reception problem. The system was installed through SignalBooster.com's cell phone signal booster installation service.

Major Concern.

Employees weren't getting a quality cellular signal inside their offices.

Solution.

Jason Velez, the Systems Engineer at KForce.com contacted SignalBooster.com to resolve the problem at their office. Due to the size of the office space, the weak signal readings on the signal meter both on the roof and inside the office space, a SureCall cell phone signal booster system was selected.

Prior to the Telco booster installation, Signalbooster.com technicians did a detailed survey of the premises by taking signal readings on the roof and inside the office space to help them choose the perfect amplifier. The survey also included establishing the length of the cable required and the different areas the cable had to snake and spiral through. The best cable routes and equipment placement areas for a new cell booster system were also identified.

Installation.

The new signal amplifier was installed on IT wall and incoming roof signal at the signal amplifier was read. As the cables were connected to signal amplifier, 10dB attenuation was added. Installation of interior dome antenna and adjustment of the signal output at the amplifier were concluded with signal readings at the dome showing strong cell phone signals.

In total, 16 feet cable was used between floors, 48 feet in total. 30 feet cable was used between electrical room chase and the Telco room on the 5th floor. Another 110 feet cable ran through the 2nd floor Telco closet to KFORCE office space. Additional 30 feet cable went to the IT wall. Approximately 300 feet of cable was spent for stability and safety of the installation.

A tripod was also installed on the roof as well as cinder blocks that were fastened on the tripod for stability. The indoor signal broadcast ceiling antenna was fastened on the tripod.

Results.

Once the technicians were sure of the improved cell phone signal, they called the employees to verify whether there was a change in their cellular connectivity. All KFORCE employees performed quick test calls and web browsing and confirmed the signal has improved to full bars.

Previous low cell phone signal problems were completely forgotten. Before the Signalbooster.com technicians left, they verified with Jason, KFORCE Systems Engineer and confirmed he was satisfied with the installation.

Employees are no longer going through dropped calls and low internet browsing speeds.

Cable running through electrical room:

Signal Booster Cable Running Through Electrical Room

Accessing the Boiler Room:

Accessing the Boiler Room For Signal Amplifier Installation

A view of the Boiler Room:

A view of the Boiler Room Where Signal Amplifier To Be Installed

Cable from the roof down to the 5th floor:

Signal Booster Exterior Antenna Cable from the Roof down to the 5th Floor

Cable runs across the hall to the Telco closet:

Signal Booster Cable runs across the hall to the Telco closet

Cable runs down the hall and around to the KFORCE office space:

Signal Booster Cable runs down the hall and around to the KFORCE office space

Cell phone signal amplifier mounted on IT room wall:

Cell phone signal amplifier mounted on IT room wall

Cellular signal amplifier up close:

Cellular signal amplifier up close

Tripod and cinder blocks on the roof (fastened cinder blocks add stability to the tripod):

Tripod and cinder blocks on the roof (fastened cinder blocks add stability to the tripod)

Outside building shark fin antenna on the tripod:

Outside building shark fin antenna on the tripod

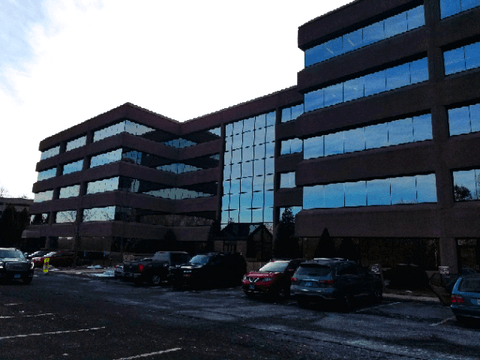

After Installation, KForce Building with Excellent Wireless Connectivity Inside:

KForce Building with Excellent Wireless Connectivity Everywhere Inside

Conclusion.

Are you facing similar cell phone signal problems in your office or business premises? SignalBooster solves mobile signal coverage problems in buildings across USA & Canada. Provide your location and main concerns and the best cell phone signal booster system will be recommended after a site survey. Our proposal will include both equipment and installation for a rapid resolution of the coverage problem so you can enjoy consistent wireless connectivity in your building. If for residence, consider this lowest cost booster and install bundle: Installed cell phone signal booster.

For businesses of all sizes, call for FREE consultation: 1-855-846-2654. Or submit details for quote of Cell Booster System Installation Service, to get started.
