Blade Antenna for 5G, 4G, LTE Routers, Terminals, Telematics

Blade Antenna for 5G, 4G, LTE Routers, Terminals, Telematics

  • Regular price $49.95 USD Sale price$29.95 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: A21-V44-600

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

Blade Antenna for 2G, 3G, LTE, 4G, 5G routers, terminals, and other telematic applications and cellular or wi-fi devices. Similar to Nextivity Cel-Fi right angle whip antenna with SMA connector, this Ultra Wide Band antenna with N-Male connector has modern design and works omni-directionally with high efficiency.

It covers practically all worldwide networks encompassing frequencies 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, and 5150-5925 MHz. Its hinged right angle at base has two variations of mounting swivels that allow different orientation of antennas on devices with MIMO systems.

With N-type Male connector, it has 50 Ohm impedance while being Ground Plane Independent.

Features:

  • 3G/4G/LTE/5G Ultra wideband wireless cell & wifi antenna.
  • Paddle (blade) style dipole.
  • Right-angle knuckle.
  • N-Male connector.
  • Ground Plane Independent.
  • High Performance.
  • Hinged Connector.
  • Dimensions 171 × 38 × 13.8 mm.
  • Connector Mount.

Specifications:

Parameters: 5GNR Antenna
Technologies: 5G, 4G, LTE, 3G and 2G
Standards: 5GNR/ 4GLTE/ FirstNet/ CBRS/ LPWA/ CAT-X/ CAT-Mx/ CAT-NBx/ NB-IoT/ 3G/ 2G
Frequency (MHz): 617–960 | 1427–2690 | 3300–5000 | 5150–5925
Band (MHz): 600, 700, 850, 900 | 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 | 3300, 3500, 3600, 3700, 4500 | 5200, 5500, 5800
5G NR Bands: n5, n8 ,12, n20, n28, n71 | n1, n2, n3, n7, n25, n34 | n77, n78, n79
4G LTE Bands: n81, n82, n83 | n38, n39, n40, n41, n50 | B22, B42, B43, B48 | B46, B47, B252, B255
3G Cell Bands: B5, B6, B8, B12, B13, B14 | n51, n66, n70, n74, n75 | B49, B52
2G Cellular Bands: B17, B18, B19, B20, B26 | n76, n80, n84, n86 | B22
CDMA Bands: B27, B28, B29, B44, B67 | B1, B2, B3, B4, B7, B9 |
Return Loss (dB): ~-8.3 | ~-8.5 | ~-4.7 | ~-7.3
VSWR: ~2.8:1 | ~2.5:1 | ~5.1:1 | ~3.9:1
Efficiency (%): ~51.9 | ~68.4 | ~40.0 | ~38.3
Peak Gain (dBi): ~0.0 | ~1.7 | ~1.1 | ~1.6
Average Gain (dBi): ~-3.0 | ~-1.7 | ~-4.3 | ~-4.4
Impendance: 50Ohm
Polarization: Linear
Radiation Pattern: Omni-Directional
Max. Input Power: 25 Watts
Connector: N-type Male
Mounting Type: Connector mounted directly on device
Dimensions: 205 × 38 × 19 mm
Radome: PC/ABS UV Stable
Radome Color: White
Connector Feature: Hinged
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Substance Compliance: RoHS, REACH
Model / Part Number Variations: A21-V44-600 / A21V44-600 / A21-V44600 / A21V44600
UPC: 697691016603



650 MHz & 750 MHz Radiation Pattern:

650 MHz & 750 MHz Radiation Pattern

850 MHz & 940 MHz Radiation Pattern:

850 MHz 940 MHz Radiation Pattern


1500 MHz & 1600 MHz Radiation Pattern:

1500 MHz & 1600 MHz Radiation Pattern

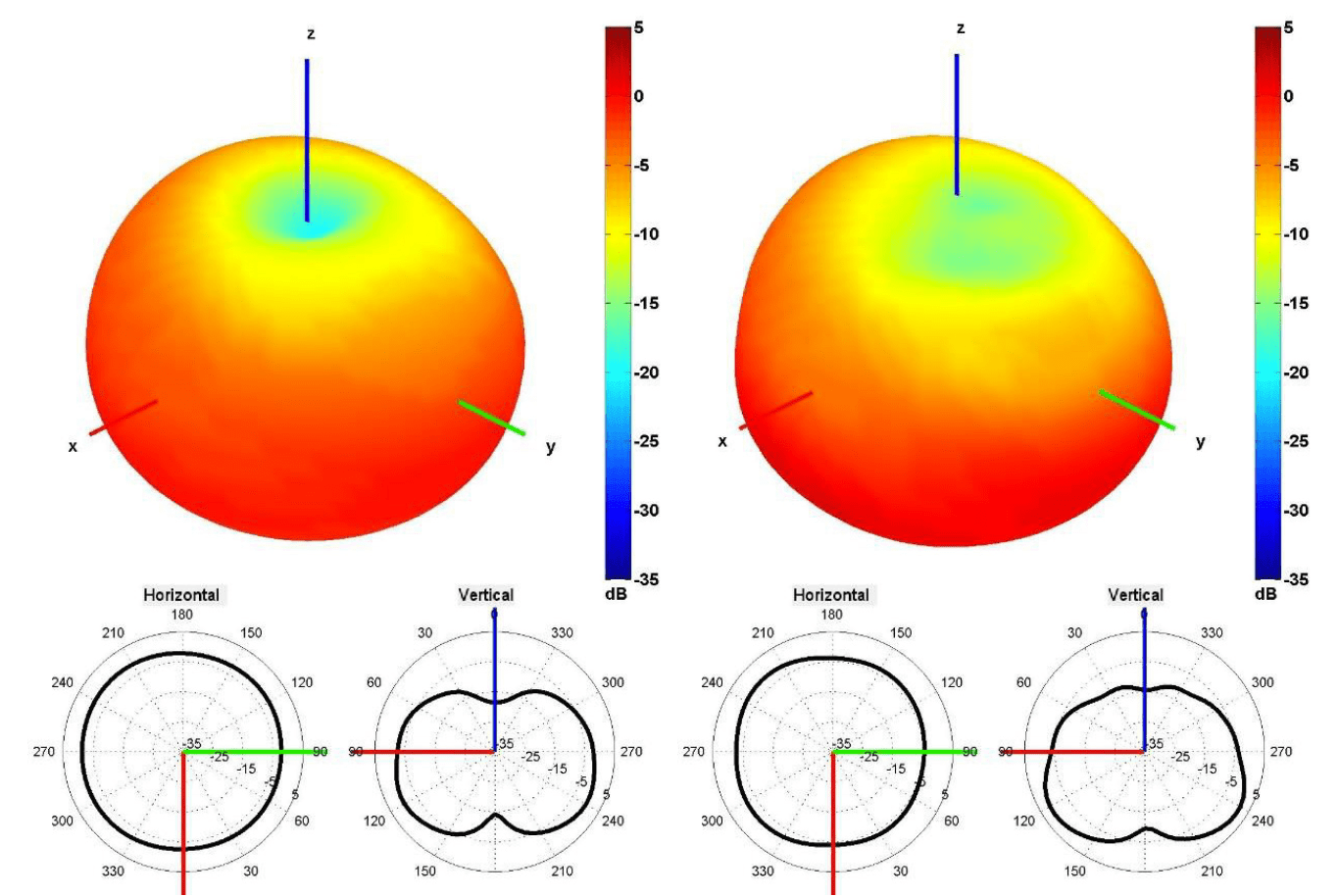

1750 MHz & 1850 MHz Radiation Pattern:

1750 MHz and 1850 MHz Radiation Pattern


1950 MHz & 2100 MHz Radiation Pattern:

1950 MHz and 2100 MHz Radiation Pattern


2350 MHz & 2600 MHz Radiation Pattern:

2350 MHz and 2600 MHz Radiation Pattern


3350 MHz & 3600 MHz Radiation Pattern:

3350 MHz and 3600 MHz Radiation Pattern


4500 MHz & 5500 MHz Radiation Pattern:

4500 MHz and 5500 MHz Radiation Pattern

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

Kevin K. of Anderson, California gave the following review:

Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.

Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.

If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
