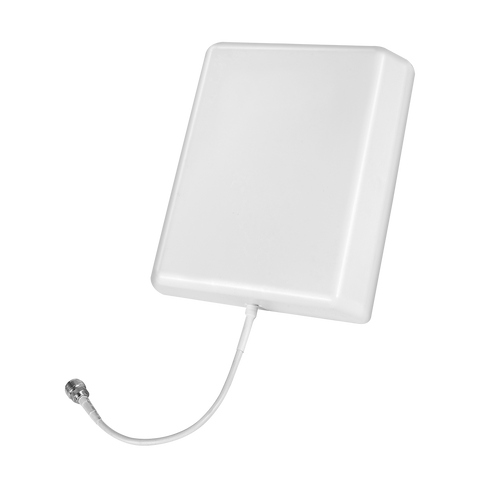

2G 3G 4G 5G (617-2700 MHz) Indoor Wall-Mount Directional Panel Antenna

2G 3G 4G 5G (617-2700 MHz) Indoor Wall-Mount Directional Panel Antenna

2G 3G 4G 5G (617-2700 MHz) Indoor Wall-Mount Directional Panel Antenna

  • $74.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.

Free Lifetime Support. SKU / Model: SC-548W

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer

Description

Product Description

Ultra-Wideband Indoor Uni-Directional Panel Antenna.

5G antenna designed to provide maximum coverage throughout indoor areas. Consider 4G panel antenna version for almost half the price. This 5G SureCall Panel Antenna is a high-gain directional antenna for in-building cell phone signal boosters. It propagates signals in a 120 degrees beamwidth. This Ultra-Wideband antenna transmits and receives signals directionally and is designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. 5.5 / 6 / 8 dBi Max Gain. N-Female connector. 50 Ohm. Ultra-Wideband: 617 - 2700 MHz. Includes mounting hardware. SKU / Part Number: SC548W. UPC: 854328008428.

  • Ultra-wideband : 2G, 3G, 4G, 5G, (617 - 2700 MHz) indoor wall-mount directional antenna.
  • 5.5 / 6 / 8 dBi Max Gain.
  • N-Female connector (50 ohm).
  • Includes mounting hardware.
  • Connects with SC-400 cable (sold separately).
  • Wall-mounted indoor antenna.

Installation.

  1. Choose the the ideal location for mounting antenna on a vertical surface. Ideal height off the floor should match the approximate height of regular cell phone use.
  2. Using plate, mark position of desired screw placement with pencil or marker.
  3. Screw mounting plate into place with the slide panel protruding towards you.
  4. Slide antenna securely onto mounting plate.
  5. Connect antenna with SC-400 cable that leads to your booster port marked INSIDE.

Note: Wherever possible, it is recommended to provide maximum separation between outside and inside antennas. Remember to face the panel antenna away from the outside antenna.

Compatibility.

Cell Signal Booster Compatibility: All brand boosters with inside antenna input port that requires 50 Ohm impedance. These include many SureCall 2G-5G home and industrial in-building signal boosters. Cable Compatibility: Low coax cables with N Male on either end (SC400, SC240, etc.). Accessory Compatibility: All 50 Ohm Cable Splitters and Cable Couplers.

5G Panel Antenna Specs.:

Frequency: 617-697 / 698-960 / 1710-2700 MHz.
Beamwidth: H:110° E:70° / H:90° E:80°/ H:65° E:55°.
Max. Gain: 5.5 / 6 / 8 dBi.
VSWR: < 2.
Input Impedance: 50 Ohm.
Polarization Type: Vertical.
Max Power: 50W.
Radiation Pattern: Directional.
Connector Type: N-Female.
Mount Type: Wall-mounted Install.
Dimensions: 8.2 x 7 x 1.78 inches.
Weight: 2.2 Ibs.
Cover Material: ABS.
Operating Temp. (degrees fahrenheit): -22 ~ +140.
Operating Humidity: 5% ~ 95%.

For more illustrations with details, please visit 5G indoor panel antenna datasheet.
