Outdoor Panel Antenna (50 Ohm, Pole-Mounted) for 3G 4G LTE Wi-Fi

AFCAP0727G8NFV6 - Outdoor Panel Antenna (50 Ohm, Pole-Mounted) for 3G 4G LTE Wi-Fi

Outdoor Panel Antenna (50 Ohm, Pole-Mounted) for 3G 4G LTE Wi-Fi

  • $59.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.

Free Lifetime Support. SKU / Model: AFCAP0727G8NFV6

Best Price Guarantee [1 2 3]

Need more powerful exterior 50 Ohm directional antenna with up to 26 dBi Gain option? For extremely weak signal areas, consider unidirectional RF-Boost High Power Long Range Antenna to replace any 50 Ohm Yagi / LPDA or Omni antenna within your signal enhancing system. It is ultra wide-band and ultra directional parabolic metal grid antenna. It requires precise directional focusing using signal meter for max. add'l Gain of up to +26 dB.

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

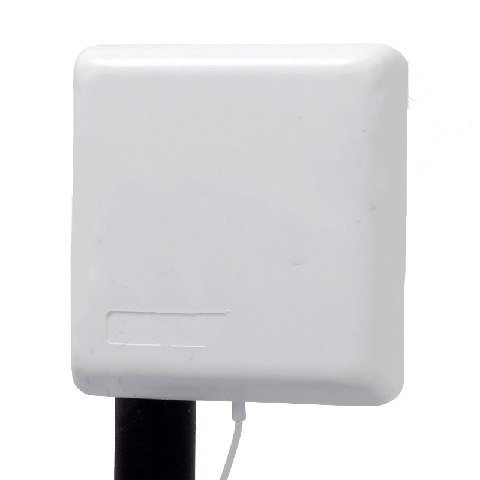

Premium quality Wide Band Outdoor Panel Antenna (50 Ohm, Pole-Mounted) for 3G, 4G LTE and WiFi wireless signals is an antenna that can be mounted on top of house or building on roof outdoors to improve access to cell tower signals for interior installed boosters and amplifiers. This is our premium signal booster custom version # 6 inventory item: Outdoor Pole-Mount Panel Antenna (50 Ohm Impedance) for 3G 4G LTE Wi-Fi signal with UPC 697691010496.

This is a flat panel one direction antenna that can be used outdoors with 50 Ohm 2G, 3G, 4G and LTE cellular repeaters and cell phone boosters. It boasts up to 8 dBi Gain. It is compatible with all 50 Ohm cell phone repeaters and boosters including Uniden, Hiboost, SureCall and Wilson Eectronics' weBoost.

This uni-direction antenna will work for all international cellular bands for 3G, 4G, LTE data and voice with any carrier including AT and T, Telus Mobility, T-Mobile USA, Bell Canada, Verizon Wireless, Rogers and many more. In most instances this unidirectional panel antenna is used as an on-roof building antenna to improve access to cell tower signals for boosters and amplifiers that have been installed inside. However, it can be used within interior spaces inside big warehouses, buildings, etc. to transmit enhanced coverage from one area to improve weak coverage in another area.

This outside pole mounted Panel antenna is completely weather-proof. It can be mounted on a pole with the hardware included. The 11 inch low-loss RG58 antenna lead is terminated with an N Female connector which is typically used with 50 Ohm low loss coaxial cable.

Features.

  • Compatible With 50 Ohm Cell Phone Repeaters, Amplifiers and Boosters.
  • Covers 698-2700 MHz.
  • White ABS Radome, UV Stable.
  • High Efficiency and High Gain.
  • Operates in any weather.
  • Tilt / Swivel Pole Mount Hardware Included.
  • N-Female Connector (50 Ohm).

Applications.

  • Operates on all wireless Carrier networks.
  • 2G, 3G, 4G and LTE Cellular Applications.
  • Designed to be installed on building and housing roofs but can be installed within large interior spaces.
  • LTE, CDMA, GSM, UMTS, AWS.
  • Stadiums, Warehouses and DAS Systems.
  • Uniden, Hiboost, SureCall and Wilson Electronics Boosters.
  • WiFi 802.11b/g/n.
  • 900 MHz and 2.4 GHz Wireless Video as well as WiFi 802.11b/g/n.

Specifications:

Frequency Range 698 to 960 / 1710 to 2700 MHz
Gain 5 dBi / 8 dBi
Polarization Vertical or Horizontal
Horizontal Beamwidth 80 / 65 Degrees
Vertical Beamwidth 73 / 60 Degrees
VSWR <1.8:1
Impedance 50 Ohm
Connector Type Integrated N-Female
Maximum Power 50 Watts
Cable Length 11 inches (279 mm)
Dimensions 6.5 x 6.5 x 2 Inches (165 x 165 x 50 mm)
Temperature Range -67°F to 140°F (-55°C to 60°C)
Weight 0.7 Lbs. (0.32 Kg)
Mast Diameter Conical 1.2 to 2 Inches (30 to 50 mm)
Lightning Protection DC Ground

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles of your home / building. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
