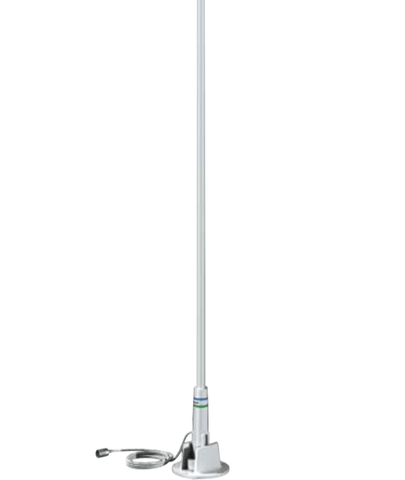

Close3 Ft. CB Antenna with Lift & Lay Mount and 7 ft. Cable (Marine/RV)
3 Ft. CB Antenna with Lift & Lay Mount and 7 ft. Cable (Marine/RV)
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: AFC4050B
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description
3 Ft. CB Antenna with Nylon Lift & Lay Mount, 7 ft. RG-58 cable.
25 watts Marine / RV CB Antenna (3 ft.) has built-in Lift and Lay Mount at the base that can also adjust and lock at 90 degrees for flexible installation options. Purchase includes attached 7 ft. RG58 cable.
Durability and performance are enhanced by the permanently sealed coil inside pristine white fiberglass. It is great for bass boats and other boats where fishing with 3 ft. antenna is more desirable for greater range. Integral polycarbonate Lift-n-Lay mount assembly includes all installation hardware needed to install. Lift-n-Lay mount can be locked with antenna straight up or in a right-angled position.
This is a one-piece, continuous load, end-fed 1/2-wave CB antenna of 3 ft. (0.9 m) overall length with cable and polycarbonate Lift-n-Lay mount. A leveling plate is included, for mounting to a sloping surface.
Operation.
CB antenna can be easily raised or lowered. To lower it, lift the antenna out of the socket base fitting, swivel it down and slide it back until it snaps and locks into place. Raise the antenna by reversing the process. If the antenna does not slide freely in the mount, apply some petroleum jelly to lubricate the fitting.
This CB Antenna Kit includes:
- 1 CB antenna assembly 4050B with Lift N Lay mount.
- 3 Flat washers.
- 3 Lockwashers.
- 3 Screws.
- 3 Nuts.
- 1 Leveling plate.
- 1 Rubber grommet.
- 1 Gasket.
- Tools required (not included): Pliers, screwdriver, drill with 1/4 inch and 3/4 inch bits.
Technical Specifications:
Band: | CB Marine. |
---|---|
Frequency: | 27 MHz Citizens Band (CB). |
Bandwidth: | 440 KHz. |
Mounting type: | Built-in Lift & Lay Mount. |
Antenna Gain: | Unity Gain. |
Max. Input Power: | 25 watts. |
Impedance: | 50 Ohm. |
SWR: | 2.0:1 or less at Channel 19. |
Ferrule: | Polycarbonate. |
Coax Supplied: | 7 ft. of RG-58. |
Connector Supplied: | PL-259 / PL259. |
Height: | 3 Feet. |
Color/finish: | White. |
DC Ground: | Yes, DC Grounded. Note: Antenna will read shorted on continuity test - disregard. |
Polarization: | Vertical. |
Radiation pattern: | Omni-Directional. |
Limited Warranty: | 2 years. |
Dimensions: | 44 x 4 x 4 inches. |
Weight: | 2.01 pounds. |
Shipping Weight:: | 2.8 pounds. |
Installation Instructions.
Choose a mounting location that is as high as possible, as free as possible from obstructions, and as far as possible from other antennas and other sources of RF, but within reach of the cable supplied.
IMPORTANT: DO NOT CUT THE CABLE OR REMOVE THE CONNECTOR. Any excess cable should be rolled in a coil of at least 8 inches diameter and stowed in an out-of-the-way place away from other electrical cables. Cable can be lengthened using suitable connectors and cables (sold separately), without detrimental effects on antenna performance.
-
Using the base mount as a template, mark the locations of the three holes where the antenna is to be mounted. Drill 1/4 inch mounting holes. When drilling fiberglass, use a small backup block of scrap wood, if possible, to help reduce push-through damage.
- Use the leveling plate (supplied) if mounting to a sloping surface. Discard the plate if it’s not needed. If desired, the included gasket can be placed between the mount and the mounting surface to form a seal. Attach the mount. The supplied hardware is for mounting to fiberglass surfaces. For attachment to other surfaces you might need to substitute other types of hardware (not supplied). Be sure to use only stainless steel hardware.
- Route the antenna's cable to your CB radio. Do not remove the installed connector. Drill a 3/4 inch diameter hole for passage of the connector, then plug the hole with the rubber grommet (supplied).
This antenna requires no external or internal ground system and works equally well on fiberglass, wood, or metal boats.
Cleaning Instructions.
To clean antenna, use mild dishwashing liquid (one that is not harsh to the hands and without ammonia) in lukewarm water.
WARNING: Do not let paint solvents, cleaning solvents, or adhesive caulking come in contact with antenna. Chemicals in these materials might destroy or damage the finish.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Can antenna and cable be purchased for the lift and lay mount?
This purchase includes antenna and cable, along with the lift and lay mount.
