NMO Antenna + 3/8" NMO Mount + 14 ft. RG58 Cable + SMA Male Connector

NMO Antenna + 3/8" NMO Mount + 14 ft. RG58 Cable + SMA Male Connector

NMO Antenna + 3/8" NMO Mount + 14 ft. RG58 Cable + SMA Male Connector

  • Regular price $89.99 USD Sale price$65.00 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: 314405+905814

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Data Sheet / User Guide
  • Make An Offer
  • Warning

Description

Product Description

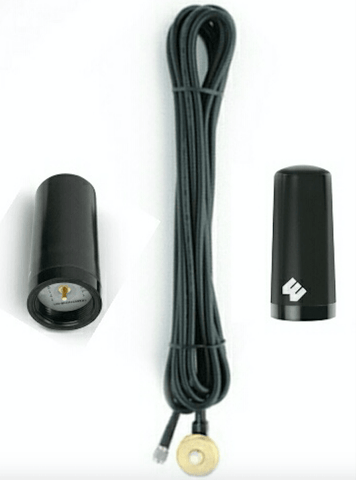

Permanently Fixable NMO Antenna with RG58 Cable that has 3/8 inch NMO Mount. The 14 feet cable type is RG-58 and it has SMA Male Connector at its end. This drill-mount antenna with cable and NMO mount is for cars, trucks, RVs, boats and works on any vehicle. It does not require roof that attracts magnets. Therefore, it works on non-magnetic roofs - No metal ground plane required.

NMO antenna included in this kit is the new replacement upgraded part SKU # 314405 for the discontinued old model number Wilson / weBoost 311112 [NMO Trucker Antenna (800/1900 MHz Omni Directional)].

This is the same antenna used in the Drive Fleet Kit (470221). As a standalone, it can be used with the Drive 4G-M (470108, now 470121) and Drive 4G-X (470510) as well as in M2M applications. This antenna requires an NMO mount which is included or can also be used with any other third party NMO mount. Main features of this antenna are increased gain over all earlier weBoost / Wilson Electronics exterior vehicle antennas, fixed tramper resistant mounting, and reduced cable clutter.

This is a 3.3 inches tall high-gain omni-directional LTE NMO cellular Antenna. It installs on NMO antenna mount (required, included). Covers 698-960 and 1710-2700 MHz cellular frequencies (see specifications in data sheet provided below).

Features:

  • Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
  • High gain omni-directional antenna.
  • Boost 698 to 960 & 1710 to 2700 MHz cellular frequencies.
  • Boosts voice & data.
  • Ideal for M2M installations.
  • Installs on any NMO antenna mount.
  • Works on both indoor/outdoor applications.
  • Perfect for car, truck, RV installation.
  • Connects to cell phone signal boosters and modems.

NMO stands for new Motorola. NMO mounts are frequently used when installing mobile antennas. Whether you are installing an antenna on a car, truck, RV, boat, or a fixed structure - this NMO mount with Multi-Band Omni-Directional antenna may be a great solution. The NMO antenna roof mount for cell phone antennas operates between 698 to 960 and 1710 to 2700 MHz.

It connects to all cellular modems and 50 Ohm signal boosters that have SMA female connector on cellular amplifier.

Vehicle antenna and cable with NMO mount kit is packed with premium quality black color Wilson branded antenna and premium quality NMO antenna roof mount as a part of the kit. Works for all major cellular carriers in USA and Canada.

NMO Mounted Antenna Details.

NMO antennas can be drilled on to roof of a vehicle or its trunk. Operating concurrently between the 698-960 MHz and the 1710-2700 MHz, this omnidirectional antenna is outstanding in case you’re interested in 3G and 4G LTE networks in areas where metallic tops and surface planes are absent. The unique design can be used in external and internal areas. It features an extended bandwidth. It has a low pattern of radiation much higher than the typical gain antenna out there. This makes it most ideal for use in ground and ceiling mounts.

Antenna Cable with NMO Mount Details (included).

New Motorola (NMO) is a popular antenna mount product available in diverse varieties. NMOs come in handy in the installation of mobile antennas, whether installing antenna in a home, fixed surface or a car, NMO always pulls out the magic. With NMO mounts a typical threaded connector is provided for the screwing of the selected antenna to the best mount.

NMO Antenna Specifications (without cable).

Frequency Band (MHz) 698-800 / 824-894 / 880-960 / 1710-1880 / 1850-1990 / 2110-2700
Signal Gain On Each Freq. Band 1.9dB / 5.1dB / 3.1dB / -4.0 / 6.1dB / 2.3dB
Polarization Vertical
Impedance 50 Ohm
Horizontal Beamwidth 360°
Max Power 100 Watts
Mount Included 3/4" NMO Mount (901150)
Cable Type Included 14 ft. RG58 Cable with SMA Male Connector and NMO Mount
Termination NMO



NMO Mounted Antenna Mechanical Specifications.

Model 314405
Connector NMO
Dimensions (H x Diameter) (inches) 3.3 x 1.44
Radome Material High Heat ABS
Antenna Color Black
Water Resistance IPX Weather Rated
Operating Temperature -40 to +131

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide


Data Sheet

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

Kevin K. of Anderson, California gave the following review:

Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.

Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.

If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
