Pulse Larsen Public Safety Antenna PSIBVU78 (In-Building)
Pulse Larsen Public Safety Antenna PSIBVU78 (In-Building)
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: PSIBVU78
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

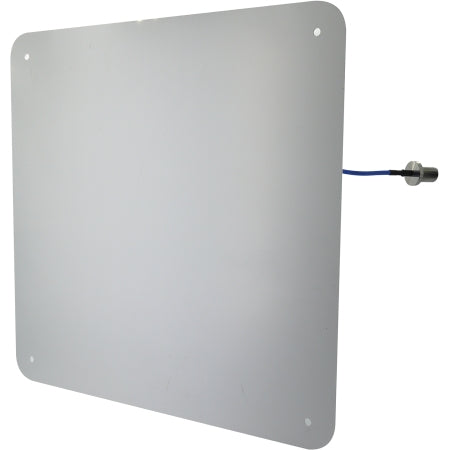

Public Safety Antenna 132-174, 380-570, 700-960 MHz (In-Building):
In-Building Public Safety Bands Antenna with 1.5 feet of cable and Type N-Female RF connectors. It is used by our installers when providing public safety DAS installation service.
Brand: Pulse Larsen. Part Number: PSIBVU78. Series: V-Thinity V/H/7/8. UPC: 646444281409.
Public Safety Distributed Antenna System (DAS) Antenna Provides Wide Bandwidth VHF, UHF, 7/800:
- 132-174 MHz
- 380-570 MHz
- 700-960 MHz
Aesthetically pleasing flat antenna design for indoor ceilings:
Only 1.5mm (0.060 inch) thickness to ceiling for unobtrusive flushed appearance matching any decor.
VSWR < 2:1, optimized to low frequency inside building environments.
For Many Applications:
- In-Building Repeater Systems, Bi-Directional Amplifiers.
- Police, Fire, Government critical communication enhancement.
- Low-profile ceiling mounting.
- Enhanced for In-building applications providing modest Gain, multi-floor coverage, and helps avoid nulls of traditional dipoles.
Electrical Specifications:
| Frequency: | 132 thru 174 / 380 thru 570 / 700 thru 960 MHz. |
|---|---|
| Nominal Impedance: | 50 Ohm. |
| VSWR: | 2:1 with antenna mounted against ceiling tile with 2 ft. x 2 ft. metal suspension frame. |
| Polarization: | Vertical. |
| Power Withstand: | 6 Watts. |
| Connector Type: | N Female. |
| Cable Type: | Ø 4mm / 0.16 inches. |
| Cable length: | 500mm / 19.7 inches. |
Mechanical Specifications:
| Color: | White. |
|---|---|
| Weight: | 675 grams. |
| Cable retention: Pull off | 30 N. |
| Fixing system: | 4 pieces M6 hex slot bolt and nut. |
Environmental Specifications:
| Operating temperature: | 0 thru 60 degrees celsius. |
|---|---|
| Storage temperature: | MIL STD 801G: 24h at 85C and 24h at -40C. |
| Temperature shock: | MIL STD 810G: Method 503.5, -40 for 1 hr to +85 C for 1 hour at 15 degrees celsius / min rate of change; 3 cycles. |
| Humidity: | MIL STD 810G: 24h at 60C and 95%RH. |
| Vibration: | MIL STD 810G: 514.6 C-II. |
| Chemical resistance: | MIL STD 810G. |
| Drop test: | Top, bottom, side. 3 times/ orientation, 40 inches. |
| Package drop: | All faces & corners, 40 inches. |
*All specifications subject to change as deemed appropriate by manufacturer to improve functionality or other features.
