Triple Std. Panel Antennas Extension Kit with White Cables (75 Ohm)
Triple Std. Panel Antennas Extension Kit with White Cables (75 Ohm)
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: 314444-3-WHITE-CABLE
- Questions & Answers
- Make An Offer

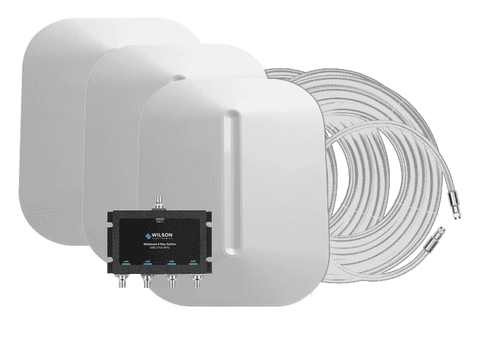

3 Std. Panel Antennas Extension Kit with White Cables (75 Ohm). Three Standard White Panel Antennas Expansion Kit (75 Ohm, UPC 697691019963) includes 3 in-building interior panel antennas (314444), 4-port 700-2700 MHz splitter with F-Female connectors (850036), three 50 ft. RG6 white color cables with F connectors (950650), and a 2 ft. RG6 white color cable (950602).
Included three sleek and elegant white color panel antennas are the same that is in the new weBoost "Home MultiRoom" (470144) and "Home Complete" (470145 / 474445) cell phone signal booster kits - except that this does not have the cloth cover. However, in addition to adding three inside antennas to those kits, this triple antenna expansion kit can be supplemented with any cellular amplifier system by any brand with impedance 75 Ohm interior antenna port or with other weBoost and Wilson Pro branded models including:
- WilsonPro 70 (75 Ohm) model: 463134.
- WilsonPro 70 Plus (75 Ohm) models: 460127 and 460227.
- WilsonPro 1100 (75 Ohm) model: 461147.
- weBoost Installed | Home Complete model: 474445.
- weBoost Connect 4G model: 470103.
- weBoost Connect RV 65 model: 471203.
Buy this additional triple antennas expansion kit with required white cables and splitter to connect to your existing cellphone signal booster kit - 75 Ohm Interior 3 Panel Antenna Expansion Kit with White Cables & Splitter.
Wilson Pro three panel antenna expansion kit is excellent for expanding indoor coverage for your existing cell phone signal booster system. Place these three indoor antennas inside your home or office in rooms, spaces, or areas where cellular reception is still weak and needs improvement. Then connect the longer white cables provided along with your existing cable to the splitter. Then use the short white jumper cable provided to connect the splitter to your mobile amplifier or repeater.
Please note that this kit is for amplifiers with interior antenna port of 75 Ohms impedance so please confirm this on your booster device or check its user guide/ manual to confirm. If you have a 50 Ohms cellular amplifier, simply check and choose from our 50 Ohms antenna expansion kits section.
weBoost antenna expansion kit includes products manufactured by Wilson Electronics for its weBoost and WilsonPro line of cell phone signal boosters. However, this three-antenna extension kit option can work with any other brand 75 Ohm cellular amplifier system as well.
This white panel antenna is noted for its sleek plastic cover, high performance, and intuitive wall-mount bracket. With included 3M Command Strips, this in-home Directional Antenna securely mounts to interior walls in a vertical or horizontal configuration. This antenna's neutral design aesthetic easily complements contemporary décor and features a built-in kickstand for shelf placement.
Standard White Panel Antenna Features:
Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
- High performance for cellular repeater-boosters.
- High gain signal output.
- Boost 698-960 and 1710-2700 MHz cellular frequencies.
- Designed for building interior installation.
- High efficiency and compact design.
- Boosts voice and data.
- Simple install kit with wall mount bracket and desk stand.
- 2-year warranty.
White Panel Antenna Technical Specs.
|Frequency Band (MHz)||698-806, 806-960, 1710-1880, 1900-2200, 2200-2700.|
|Peak Gain (dBi)||5.75, 6, 7.3, 7.33, 7.62.|
|Efficiency (%)||65.80, 63.34, 66.77, 55.19, 55.17.|
|Half-Power Azimuth Beamwidth (°)||79, 72, 56, 51, 55.|
|Half-Power Elevation Beamwidth (°)||87, 89, 86, 75, 48.|
|Front-to-Back Ratio (dB)||>10, >17, >15, >12.|
|Maximum Input Power||50 watts.|
|Antenna Type||Wide-Band Directional.|
|Antenna Dimensions||8.875 x 7.125 x 2.625 inches.|
|Antenna Shipping Dimensions||11.5 x 7.83 x 3.5 inches.|
|Radiator Material||PCB & Aluminum.|
|Radome Material||Plastic-ChiMei PC 385.|
RF Antenna Indoor Mounting Options:
Each Antenna Comes With:
weBoost Home Panel Antenna Radiation Patterns 700-960 MHz:
1700-2200 MHz Radiation Patterns:
2300-2700 MHz Radiation Patterns:
Efficiency of weBoost Home Panel Antenna:
Peak Gain vs. Frequency Chart:
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
