Cable with SMA-Female Connectors on Both Ends
Cable with SMA-Female Connectors on Both Ends
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: AFCSf6iSf5
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

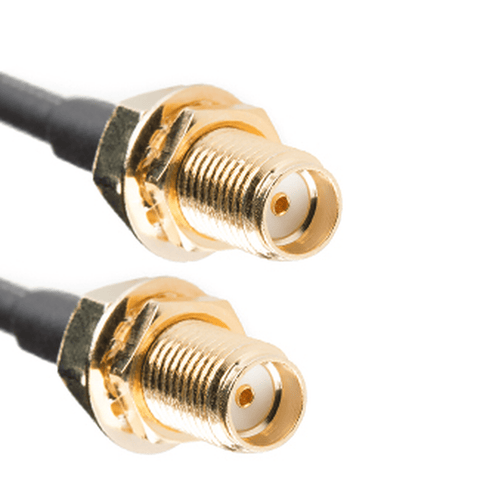

SMA-Female to SMA-Female cable has SMA-F connectors or adapters on both ends. Also known as jumper, pigtail or patch cable, it allows interconnection of devices with SMA male interfaces such as on antennas, antenna cables, and mobile / cellular / wireless devices.
It is designed for coax extensions, coaxial interface conversions and coaxial retrofitting applications. Cable has high-quality soldered terminations of SMA connectors that provide a low-loss signal connection. It is double-shielded and very flexible.
The cable-type is equivalent or better than LMR100 with flexibility just as good, and less attenuation (signal loss) than RG-174 cables. Rated for outdoor use but also suitable for indoor use. RoHS and REACH compliant with the RoHS & REACH restrictions on content of lead, other heavy metals and toxins.

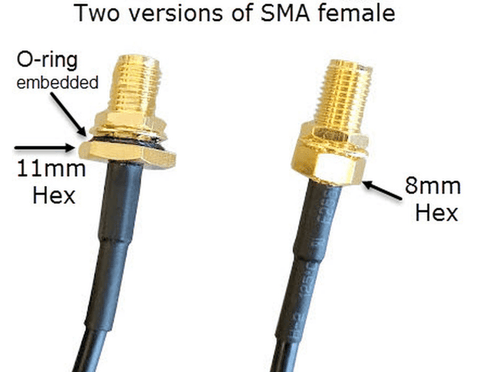

SMA fem. connector includes a bulkhead nut and washer for mounting and/or weatherproofing the connector / port which can be used to mount the connector (and thus the cable) on the wall of a network enclosure (to weatherproof the cable connection), or mount the connector on a case, panel or Printed Circuit Bard (PCB).
SMA-Connector materials composition consists of connector body which is gold plated brass. The center contact is Gold Plated Beryllium Copper. Crimp Ferrule composite is Nickel Plated Copper. It has PTFE insulators. It is precision machined for low loss in ISO 9001 facilities.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
