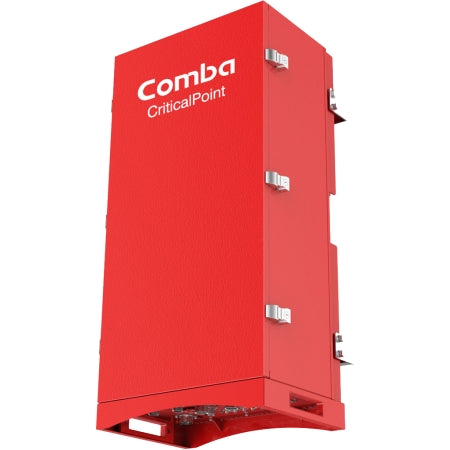

Comba Public Safety 5W Simpex TX/RX Class B UHF BDA (DC)

Comba Public Safety 5W Simpex TX/RX Class B UHF BDA (DC)

Comba Public Safety 5W Simpex TX/RX Class B UHF BDA (DC)

    Best Price Guarantee. [1, 2, 3]
    • Product Url
    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

    No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.

    Free Lifetime Support. SKU / Model: RXUHF-B36DC-SPX

    Best Price Guarantee [1 2 3]

    Call for FREE consultation:

    1(855)846-2654

    Need installation quote, or help with designing a custom solution? Submit a request for quote.

    • Description
    • Reviews
    • Questions & Answers
    • Make An Offer
    • Warning

    Description

    Product Description

    Comba Critical Point Public Safety RXUHFB36DCSPX, simplex, class B BDA has separate RX and TX outputs and inputs and DC powered without a supplied duplexer. You also need RX and TX antenna paths separately. It features SNMP intelligent GUI web-based configuration and traditional analog and digital P25 P1/P2 concurrent communications support. Bi-directional amplifier oscillation is prevented by a compulsory inbuilt isolation test. Internal duplexing and simplex supported, including noise minimization via PA uplink shutdown and wide-band filters up to 4.

    Summary:

    Comba Telecom's CriticalPoint RXUHF-B36DC-SPX is a Class B, DC powered, simplex BDA with separate TX and RX inputs and outputs. No duplexer supplied. Separate TX and RX antenna paths are required. Comba CriticalPoint UHF Public Safety Bi-Directional Amplifier.

    Compliances: NFPA 1221/IFC (dry contact alarms) and NFPA 1221/IFC (NEMA 4 enclosure).

    Highlights:

    • 36 dBm Composite Power Downlink.
    • 30 dBm Composite Power Uplink.
    • 0-30 GAR [Gain Adjustment Range (dB)].
    • -33 to +60 degrees centigrade peak operating range.
    • Weighs 77.0 lbs.
    • Type N-Female connectors.
    • Measures 15.4 inches Width by 31.5 inches Height by 12.4 inches Length.

    Features:

    • Supports P25 P1/P2 digital and conventional analog communications simultaneously.
    • Simplex and internal Duplexing supported.
    • Up to 4 wide band filters.
    • Uplink PA shutdown bring the minimum noise for Base Station.
    • Built-in mandatory isolation test to prevent BDA oscillation.
    • Web based GUI for intelligent configuration, SNMP supported.
    • NFPA 1221 / IFC compliant dry contact alarms.
    • NFPA 1221 / IFC compliant NEMA 4 enclosure.

    Technical Specifications:

    Manufacturer: Comba Telecom, Inc.
    Bands Supported: UHF.
    Composite Power Downlink: 36 dBm.
    Composite Power Uplink: 30 dBm.
    Gain Adjustment Range (dB): 0-30.
    Temperature Range: -33 to +60 degrees centigrade.
    Item Height: 31.5 inches.
    Item Width: 15.4 inches.
    Item Depth: 12.4 inches.
    Item Weight: 77.0 lbs.
    Qty/ Uom: 1 each.
    RF Connectors: Type N-Female.



    WARNING:

    Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please complete public safety bidirectional amplifier installing service questionnaire for a price quotation if you require professional installation and assistance with bidirectional amplifier design, consent and approval process by a qualified and experienced public safety bidirectional amplifier installer.

    Reviews

    Customer Reviews

    Questions & Answers

    QUESTIONS & ANSWERS

    Have a Question?

    Be the first to ask a question about this.

    Ask a Question

    Data Sheet / User Guide

    Make An Offer

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • Input Correct Captcha

    Warning

    Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles of your home / building. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

    If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

    Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
