Wilson Pro 1050 Two Signal Booster System (Main & Inline Boosters) | WilsonPro 460230
Wilson Pro 1050 Two Signal Booster System (Main & Inline Boosters) | WilsonPro 460230
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: 460230
- WilsonPro's first two-part booster system.
- Consists of "main booster" and "inline booster".
- Industry’s first FCC & carrier approved "inline" cellular booster system.
- In-line booster can compensate for up to 300 ft. of cable loss.
- Sold in complete installation kits with antennas and cables, etc.
- Up to +15 dBm downlink power, for maximum indoor coverage area.
- Boost in-building coverage up to 35k sq. ft. using this dual booster system.
- Expand coverage indoors even more by purchasing add'l 50 Ohm in-building antenna kits that include required cables and splitter to connect to this 50 Ohm booster kit.
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
WilsonPro 1050 main and inline dual signal booster system (Wilson Pro 460230/ wa460230) has unique Inline signal amplifier that compensates for signal loss caused by long 300 ft. cable runs installed deep inside building to connect to interior antennas. It is compatible with all North American cellular networks. It is made by Wilson Electronics/ weBoost.
5G Ready - Per manufacturer, this WilsonPro cell phone booster will work for the next decade and beyond.
What does the Wilson Pro 1050 Commercial Signal Booster Kit (460230) cost? Call us, chat live, or email us to find out because these can be customized or kitted with variable number of antennas depending on your needs.
It has a self-optimizing design that minimizes installation time. Thanks to its XDR technology, it never shuts down due to overload, even with very strong outside cellular signals. It provides up to +15 dBm downlink power at indoor antenna port, for maximum indoor coverage area.
All Bands, Multi-Carrier Cellular Signal Booster System.
The WilsonPro 1050 cell signal booster system provides significantly enhanced voice and data coverage including 4G LTE deep inside large homes or other buildings by compensating for signal loss caused by long cable runs. As cell signal moves over long lengths of coax cable some is lost, reducing booster system performance. The 1050 booster system addresses this technical problem by employing two separate boosters - a main signal booster and a supplementary inline booster.
How the PRO 1050 is different.
No other commercially available cell signal booster system uses the 1050's unique dual-amplifier design to compensate for signal that is lost over long lengths of cable. Wilson Electronics engineers designed the system so the Wilson 1050 main and the inline booster communicate. Working together the two amplifiers determine the actual signal bleed along the cable run, and supply sufficient boost to compensate for this lost signal.
In addition, the WilsonPro 1050 features XDR (Extra Dynamic Range) technology that prevents overload conditions which can, in accordance with FCC regulations, force a booster to reduce power or even shut down.
This powerful dual-booster design allows clients with large homes to enjoy maximum indoor cell coverage - no more dropped calls or lost connections, faster uploads/downloads and a reliable, up to 32x stronger signal.
When the WilsonPro 1050 senses that any incoming signal is too strong and threatens to overload the system, XDR automatically reduces signal gain to compensate for this overload condition while maintaining signal coverage throughout the building. In contrast, competing signal boosters shut down when they reach a maximum incoming signal strength threshold, causing the indoor cell signal to drop out.
The 1050's inline booster works only with the WilsonPro 1050 main, and cannot work as a stand alone booster. Nor can the inline booster work with any other cell signal booster. FCC regulations prohibit any sale or distribution of the inline booster except as part of the WilsonPro 1050 system. Like all WilsonPro cell signal boosters, the WilsonPro 1050 booster system is universal: it works for all cellular devices, all services including 4G LTE, and all U.S. and Canada cell phone carriers.
Wilson Pro 1050 cell phone signal booster for approximately 35,000 square feet indoor building spaces consists of a wall mount main amplifier unit. Wilson Pro 460230 part number is a top quality commercial grade boosting system for entire buildings and similar large building structures. Designed, engineered, and assembled in USA.
Wilson Pro1050 cellphone signal booster is offered to increase the strength of cellular devices as well as boost data transfers (both uploading and downloading). This powered repeater unit is designed to provide in-building cellular coverage enhancements for businesses such as hospitals, hotels, warehouses, offices, and other properties up to 35,000 sq. ft. The small but modern technology found within the booster allows for easy navigation, automatic controlling, manual adjustments, and quick installation.
Key features of the Wilson Pro-1050 include the new extended Dynamic Range (XDR) technology this unit never shuts off due to strong outside or changes in outside signals. Downlink power consists of industry leading +15dBm per port making the WilsonPro 1050 equipped with the highest available indoor coverage than other WilsonPro boosters.

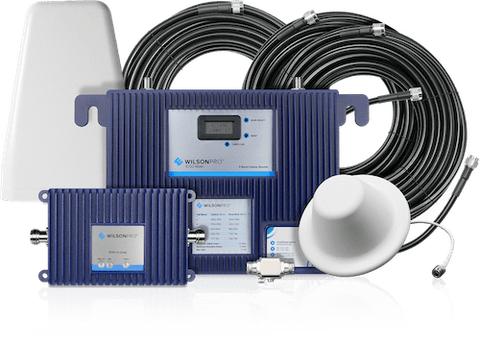

The standard Wilson-Pro 1050 kit comes with all the components necessary for your or our licensed technician to install the device properly (installation cost extra - submit details here for a quote). Included in the kit you will find:
- WilsonPro 1050 Two-Part Booster System - WilsonPro 460030 (Model Number: U460030).
- Wide Band Directional Antenna Part # 31441 + 75 feet Wilson 400 Cable.
- Dome Antenna Part # 304412 + 100’ Wilson 400 Cable.
- Lighting Surge Protector - Part # 859902.
- 2 feet Wilson 400 Cable - Part # 952302.
- 100 feet Wilson400 Outdoor Cable - Part # 952300.
Wilson 1050 Amplifier Kitted With Cable Options:
For some installations, you may need to have longer cable runs to cover longer distance between exterior antenna, and amplifier or between amplifier and interior antenna(s). Choose Wilson 1050 amp. with cable options in drop-down menu at the top. They are as follows after the first standard complete kit option:
- Standard WilsonPro 460230 Complete Kit with all parts and cables as listed above.
- WilsonPro 460330 - Purchase has only Main Amplifier, Inline Amplifier, Power Supply, and 500 ft. Spool Wilson400 Black Cable.
- WilsonPro 460430 - Purchase has only Main Amplifier, In-line Amplifier, Power Supply, and 500 ft. Wilson Plenum Spool Orange Cable.
The weight of the Main signal booster unit is 9.28 pounds and In-line signal booster is 1.12 pounds. Antennas work independently from onboard software allowing for maximum coverage without disrupting coverage from other antennas. Customers can extend the contents of the kit by purchasing an expansion kit. Optional indoor expansion kits (see links to purchase) are sold in Single Antenna (309906-50N), Double Antenna (309907-50N), or Triple Antenna Expansions (309908-50N). Product kits include:
- Wall Mount Panel Antenna (x the purchased amount).
- A 50 Ohm 2-way, 3-way, or 4-way splitter depending upon # of indoor antennas.
- 2 feet Wilson 400 Cable.
- 50 ft. Wilson 400 Cable (x the purchased amount).
Connectors for the coax cables have been strategically placed upon the 1050 Booster to minimize the likelihood of entanglements. The clear and illustrative LCD screen beside the display empowers the user to go through settings to maximize peak performance on the booster. The LCD screen has been designed for quick and effective control of the product upon installation and allows for manual adjustments to the uplink and downlink gain levels for each band.
Mounting your device.
Wilson Pro 1050 commercial grade cellular signal booster is best mounted in areas where there's little to no obstacles obstructing the path to the main antenna. Due to the design of the Wilson 1050 booster, mounting can be accomplished in virtually any interior space. It is advised that the mounting unit and outside Directional Antenna be within as much close proximity as possible for best results. Power should be linked to a dedicated circuit if possible. As this unit is a commercial grade product, mounting of the unit must be done by a licensed installation professional so we recommend getting a prompt installation quote from us.
Like all WilsonPro cellular signal boosters, this features cell site protections that auto-detect and prevent any cell tower interference. This model (Wilson 460230) is capable of increasing signal strength to a max gain of 70 dbs on 50 Ohm impedance. Connections are N-Female. Power is 100-240V AC, 50-60 hz, 30 W. Based upon the band selected the frequencies will vary. The frequencies available are:
- Band 12 – 700 MHz.
- Band 13– 700 MHz.
- Band 5– 850 MHz.
- Band 4– 1700/2100 MHz.
- Band 25/2– 1900 Mhz.
Above frequencies cover all wireless service carriers in USA including Verizon, Sprint, AT&T, T-Mobile and in Canada including Rogers Wireless, Bell Mobility and Telus.
Compatibility and Support.
It is designed to be compatible with all major US 2G, 3G, and 4G devices on all mobile service providers. Additionally, phones from the same major manufacturers will still be able to receive data plus voice enhancement from use of the booster. Communication and data increases are subject to the existing strength of the network signal outside. Businesses which have moderate to strong signals outside will see the most increase.
All Wilson commercial cellular signal boosters are supported with a 3 year warranty from the date of purchase. Any support questions or concerns about your product can be addressed by contacting us or the manufacturer.
Optional Parts and Accessories (not included):
Optional Omni Directional Exterior Antenna: 3G & 4G Omni Wide-band External Antenna.
Yagi (included) is more powerful than Omni (not included, can be purchased separately), but Omni's attract signals from all directions and from all cellular service carriers. Omni's also do not have to be pointed to the cell phone tower.
WilsonPro 1050 Installation Service by Certified Installers.
This commercial Wilson Electronics signal booster kit (WIL-460230) needs to be installed by a professional installer. We provide professional signal booster installing service that installs Wilson Pro 1050 in your business office building or residential apartment complex at an affordable cost. Please contact us for Wilson Pro 1050 installation service by certified cellphone signal booster installers.
WilsonPro Installers, Integrators, Resellers and Dealers: In order to ensure compliance with the FCC, all authorized partners must sign a kitting agreement in order to participate in custom kitted program to buy custom non-traditional kits. Signing a WilsonPro Kitting Agreement indicates that you will comply with FCC regulations. Custom kits are those listed in drop-down menu above, after the complete kit option. Wilson Pro Amp + Cable (50 Ohm) Program requires new signed WilsonPro Amplifier + Cable Kitting Agreement on file from all buyers. Please complete and send by email or fax - prior to placing phone order, or with purchase order.
Questions & Answers
QUESTIONS & ANSWERSAsk a Question
does the mainline booster mount outdors
No, both the main and inline boosters are designed for installation indoors. They are not weather resistant. Main booster does most of amplifying whereas inline booster compensates for extensive cabling that my be required to reach deeper sections of the building.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
