Global LTE, 5G, WiFi, GPS Antenna (617 MHz - 6000 MHz / 6 GHz)

Global LTE, 5G, WiFi, GPS Antenna (617 MHz - 6000 MHz / 6 GHz)

Global LTE, 5G, WiFi, GPS Antenna (617 MHz - 6000 MHz / 6 GHz)

  • Regular price $697.00 USD Sale price$345.00 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: LTM508AFC

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

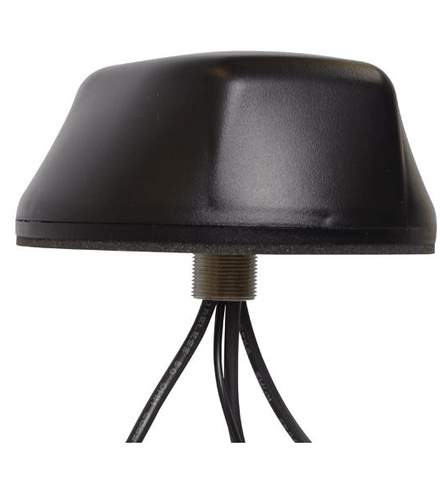

Five antennas in one (Extreme Wide Band w/ 5G).

Extreme wideband 5G antenna is multi-band global LTE, WiFi, GPS antenna. It can be mounted on any surface. It features 5 antennas in 1 compact unit with 5 included cables for each frequency type: one GPS cable (1575 MHz), two Wi-Fi cables (2.4 & 5 GHz), and two 2G, 3G, 4G, LTE, 5G (617 to 960 MHz & 1710 to 6000 MHz) global cables. This multiband diversity / MIMO antenna has unique cables that allow for MIMO (multiple-input-multiple-output) coverage on both Wi-Fi and cellular networks. They provide full worldwide coverage on all cellular bands 2G, 3G, 4G LTE, and true 5G networks.

When used in United States, this surface mount antenna with 5 cables includes Band 71 between 617 and 698 megahertz, and the new Citizens Band Radio Service between 3.55 and 3.7 gigahertz. This antenna can also be configured for combined GPS and Glonass use. Also available with a GNSS module (GPS/ Glonass), specify LTMG508AFC or MLTMG508AFC in notes section provided in shopping cart.

With a diameter of only 5.5 inches or 140 millimeters and a low profile of 2.38 inches or 60.4 millimeters, this antenna with attached five cables is a space saver. It also cuts down on installation time and costs by offering a single mounting hole for all five frequency antennas in one. This antenna is also available in a mag-mounted model.

Cable Specifications:

  • Cellular: Cables 1 and 2 - 617 to 960 MHz, 3 dBi & 1710 to 6000 MHz at 4 dBi.
  • Wi-Fi: Cables 3 and 4 - 2.4 to 2.5 & 4.9 to 6.0 GHz at 5 dBi.
  • GPS: Cable 5 - 1575 MHz and LNA 26 dB at 5 dBi.

Review extreme wideband 5G antenna detailed sketches, specifications and data sheet, and radiation patterns.

Cable Length:

Standard cable length is 15 ft. However, you can request 1 ft., 2 ft., 10 ft., or 20 ft. in the notes section when you reach the shopping cart.

Antenna Color:

Standard antenna color is black. You can request white color in the notes section when you reach the shopping cart.

Mounting stud length:

Standard mounting stud length is 3/4 inch. You can request 1 inch or 1.5 inch in the notes section when you reach the shopping cart.

Surface-mount or magnet mount?

This listing is for standard surface mount antenna. We have this unique antenna available in surface-mount and mag-mount models. If you need magnetic mount version, please request it in the notes section when you reach the shopping cart.

Specifications:

Frequency & Gain (peak)*: Cable 1 & 2 (5G LTE): 617-960 MHz, 3 dBi 1710-6000 MHz, 4 dBi. Cable 3 & 4 (WiFi): 2.4-2.5 & 4.9-6.0 GHz, 5 dBi. Cable 5 (GPS): 1575 MHz, 26 dB, 5 dBi. GPS & GNSS Option: 1575 MHz & 1612 MHz.
VSWR*: 2:1 VSWR over Range.
Impedance: 50 Ohm Nominal.
Maximum Power: 10 Watts.
Case size: 5.50 inches Diameter x 2.38 inches High.
Radome Material: ASA UV Inhibative Plastic.
Operating Temperature: -40 Degrees to +80 Degrees C.
Connectors, standard: SMA Plugs & RP SMA Plugs.
Cable: Cable 1-4 = Separate LL-195, 15 ft. Cable 5 (GPS) = RG-174, 15 ft.
Mounting: 7/8 inches Diameter Feed Thru 3/4 inch long thread for up to 1/2 inch thick surface.
Shock & Vibration: IEEE1478, EN61373, MIL-801G, TIA 329.2-C.
Water Ingress: IPX7.
RoHS: Compliant.

*Measured on 1 ft. ground with 1 ft. cable.

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
