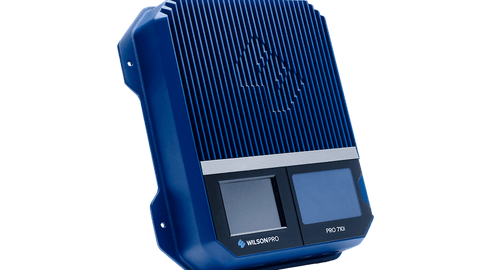

WilsonPro Pro 710i Band 71 (600 MHz) 5G Signal Booster
WilsonPro Pro 710i Band 71 (600 MHz) 5G Signal Booster
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: 460064
- Questions & Answers
- Make An Offer
WilsonPro Pro 710i Band 71 (600 MHz) 5G Signal Booster is to boost 5G network of T-Mobile, U.S. Cellular and other carriers now using Band 71 frequency. Wilson Pro 710i is the most anticipated release for Summer 2020.
Only certified installers must install Wilson Pro 710 i. Secondly, installers must have this 5G rebroadcast agreement (download .xlsx or .doc at preceding link) with T-Mobile filled out, sent to T-Mobile (emailed to email@example.com), and wait for approval BEFORE installation. Because the Pro710i is certified under FCC Part 20 Industrial Cellular Amplifier Rules, applicable carrier approval is required for operation.
Please keep in mind that 5G rebroadcast agreement is a document is an APPLICATION which must be completed and sent to T-Mobile for rebroadcast permission. It might take T-Mobile several weeks to review and approve the application.
Extremely important: Application MUST be approved by T-Mobile before Pro 710i can be installed. We would also recommend including a simple design description or drawing with application. For example, "donor antenna" model number xxxxxx connected via yy feet of coaxial cable to Pro 710i, feeding qty: nn server antennas via zz lengths of coax or a drawing, if available.
Unlike other 5G commercial cellular amplifiers currently on the market, the Pro 710i doesn't require permission from every carrier prior to installation. Instead, it only requires registration and approval by any carrier broadcasting Band 71 in that area (T-Mobile).
However, due to the fact that these are test units, buyer/installer must contact us post approval to inform us how long did the T-Mobile approval take, so we can alert other installers regarding T-Mobile approval timeframe.
It is WilsonPro's first-ever 5G-specific, commercial-grade cellular amplifier. Designed for large commercial buildings, its interior antenna port features +23 dBm of downlink power. It can potentially provide up to 100,000 sq. ft. of indoor coverage.
It is certified under FCC Part 20 Industrial Cellular Amplifier Rules. Therefore, it requires carrier approval from all carriers in area that offers 600 MHz band 71 frequency. After installation, enjoy 5G's fastest download speeds and lowest latency.
Wilson Pro 710i features eXtended Dynamic Range (XDR) technology which automatically adjusts to any changes in outdoor signal quality, ensuring that the signal amplifier does not experience signal overload or shut down.
This kit can be used as a standalone product to provide signal boost on 5G network of T-Mobile, U.S. Cellular and other carriers now using Band 71 frequency. It can also be installed parallel with any existing cellular amplifier system covering the rest of the frequencies covering 3G, 4G, LTE.
Option 1 in drop-down menu above: WilsonPro Pro 710i Amp & Power Supply kit available for installers - additional cable and antennas sold separately.
Option 2 in drop-down menu above: Complete WilsonPro Pro 710i T-Mobile Band 71 5G Signal Booster Kit option provided includes all parts as listed below: (requires professional installation)
- Pro 710i Booster (460064). Model Number: U460064.
- 50 Ohm 617-2700 MHz (2.7 GHz) Outside Directional Yagi Antenna (311233).
- 50 Ohm 617-2700 MHz (2.7 GHz) Inside Panel Antenna (311234).
- 50 Ohm 0-3000 MHz (3 GHz) Lightning Surge Protector (859902).
- 2 ft. Low-Loss Wilson-400 Cable (952302).
- 60 ft. Low-Loss Wilson-400 Cable (952360).
- 75 ft. Low-Loss Wilson-400 Cable (952375).
Wilson Electronics Pro 710i amplifier will fit the needs of hotels, healthcare facilities, schools, manufacturing plants, commercial and residential real estate properties, among others. The Pro 710i makes reliable 5G signal available for an entire building's tenants, employees and visitors who subscribe to carriers who utilize Band 71.
WilsonPro Installers, Integrators, Resellers and Dealers: In order to ensure compliance with the FCC, all authorized partners must sign a kitting agreement in order to participate in custom kitted program to buy the custom non-traditional amplifier-only kit with cable. Signing a WilsonPro Kitting Agreement indicates that you will comply with FCC regulations.
Custom only-amplifier with power supply kit is listed in this listing as first option at the drop-down menu above (NOT needed for the complete WilsonPro 710i kit option available). Wilson Pro Amp + Power Supply = Custom Kitting Program requires new signed WilsonPro Amplifier + Cable Kitting Agreement on file from all buyers. Please complete and send by email or fax - prior to placing phone order, or with purchase order.
- Model: Wilson Pro (wall mount) 460064.
- Frequencies: Single Band 17, 600 MHz.
- Maximum gain: 70 dB.
- Impedance: 50 ohms.
- Power range: 30 watts, 50 to 60 hertz, 110 to 240 volts AC.
- Connector type: N-female.
- Dimensions of wall-mounted amplifier: 2.5 x 12 x 9 inches.
- Weight of amplifier: 16.52 lbs.
- Power output range - uplink - single cell phone: 23 dBm.
- Power output range - downlink - single cell phone: 16.7 dBm.
- Noise: 5 decibels (nominal).
- Isolation: > 90 dB.
- Power: 0.5 A, 120 volts AC.
Other technical spec.:
- FCC ID: PWO460064.
- Date of Certification: 5/19/2020.
- TMO Band (PCS, AWS, both, etc): B71.
- Uplink Frequency Range Mhz: 663 – 698 MHz.
- TMO Uplink UARFCN (UMTS channel number): 133122 - 133471.
- Downlink Frequency Range Mhz: 617 – 652 MHz.
- Downlink UARFCN (UMTS channel number): 68586 - 68935.
- Max Uplink output power (EiRP): 30.7 dBm - AWGN.
- Max Downlink output power (EiRP): 30.5 dBm - AWGN.
- Uplink peak and Average amplifier gain: 85 dB, 83 dB.
- Downlink peak and Average amplifier gain: 85.5 dB, 83 dB.
- Maximum transmitted power (uplink and downlink): UL: 24.2 dBm; DL: 24.5 dBm.
- Maximum transmitted noise (uplink and downlink): UL: -25 dBm/MHz; DL: -25 dBm/MHz.
- Self-monitoring capability: Yes.
- anti-oscillation capability: Yes.
- Gain control: Yes.
- Power down: Yes.
It is intended that this cell phone signal booster will be installed by a professional installation service. We're happy to offer complimentary system design and professional, expert installation for your Wilson Pro 710i in any type of residential or commercial building at a reasonable price. To find out more, simply contact us and we will be happy to provide information about our certified installation services for WilsonPro 710i signal boosters and other Wilson products. Or please submit location details for WilsonPro 710i installation service by certified Wilson cell phone signal booster installers.
To find out more about operating this signal booster, please refer to our post regarding its announcement: Introducing WilsonPro Pro 710i.
WARNING. Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from Carriers using its frequency in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please contact us for a quote if you require professional installation and assistance with consent and approval process.
Questions & Answers
QUESTIONS & ANSWERSAsk a Question
How do I order WilsonPro 710i? There\'s no add to cart button. Secondly, it says it is for commercial use so would you confirm whether this be installed inside home, in a residential setting?
Yes, this Wilson 710i commercial grade booster can be installed inside homes just the same. "Add to cart" button is not visible because this 710i booster requires Carrier's approval prior to installation. It also requires professional installation. Thus, it must not be self-installed by end users. If you're a professional installer, you can buy Wilson Pro 710i by registering to create an account and you will be able to place your order online. If you're an end user, simply submit installation questionnaire. In comments box at bottom of that questionnaire, you can state that you're interested in buying and having Wilson-Pro 710i signal booster in your residence.
Can Wilson Pro 710i be installed in combination with non-Wilson signal boosters? Can it share the other system's donor antenna, or just the indoor ones? Why does it say it "requires professional installation"? What makes it different from the 3G and 4G booster I installed myself?
Yes, it can be installed in combination with non-Wilson signal boosters. It needs to have its own donor and server antennas that cover 5G frequency. WilsonPro 710i is considered a commercial grade signal booster that can provide up to 100,000 sq. ft. indoor coverage. Installing such a high caliber signal booster requires careful system design. Furthermore, the site survey will determine the number of daisy-chained interior antennas that will be required to provide maximum indoor coverage that this powerful kit can provide. This, in turn, will require custom size cables to minimize signal loss. Do remember that the design has to be presented to respective 5G carrier for its approval for installation of such a powerful 5G signal booster (see link to 5G rebroadcast agreement in product description). We can help with all that if you submit installation questionnaire.
Does it work on t mobile low band extended range 600mhz n71?
Yes, it is designed to do just that. Submit request for installation service nationwide by professional installer. Thank you.
What is cost of WilsonPro Pro 710i Band 71 (600 MHz) 5G Signal Booster and do you have installation instructions?
Thank you for your inquiry. Please know that WilsonPro 710i requires professional installation and approval from respective Carrier. WilsonPro 710i amplifier and power supply costs approx. $1200 and complete kit with exterior and one interior antenna, cables, etc. costs approx. $1500. However, this does not include professional installation cost.
Professional installation cost would be additional. Therefore, you must please submit installation questionnaire (please fill out as much info as you can, and we will help with the rest) so that we can design the set-up and provide cost of equipment that you will need (with additional interior antennas if needed) as well as complete installation cost that we can charge, to deploy the system for you (after getting required approval from respective Carrier, T-Mobile).
Please contact us for more details. Thank you.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
