Comba Public Safety Customized Class B UHF Dual Sub-Band BDA (DC) 2 Window Passband
Comba Public Safety Customized Class B UHF Dual Sub-Band BDA (DC) 2 Window Passband
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: RXUHF-B36DC-2WX
Free overnight shipping on this item
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

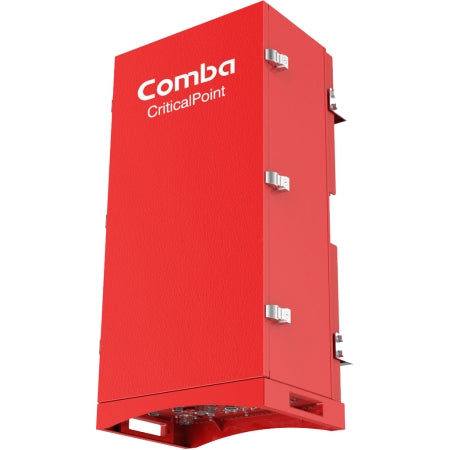

Comba CriticalPoint Public Safety customized Class B duplexed dual sub-band BDA (RXUHF-B36DC-2WX) is DC powered. Considering not all frequencies are accommodated by the amplifier you're advised to indicate the DL and UL frequencies you need supported to be evaluated.
UHF bi-directional amplifier also features SNMP intelligent web-based GUI configuration with traditional analog and digital P25 P1/P2 simultaneous communications support. Amplifier oscillation is prevented by a compulsory in-built isolation test. Also includes internal duplexing and simplex support, including noise minimization by PA uplink shutdown with wide-band filters up to 4.
Summary:
Comba Telecom's RXUHFB36DC2WX is a Class B, DC powered, dual sub-band, custom duplexed BDA. Specify all UL and DL frequenices to be supported and Comba will evaluate. Comba may not be able to accommodate all frequencies requested. Comba UHF Public Safety Bi-Directional Amplifier.
Compliances: NFPA 1221/IFC (dry contact alarms) and NFPA 1221/IFC (NEMA 4 enclosure).
Highlights:
- 36 dBm Composite Power Downlink.
- 30 dBm Composite Power Uplink.
- 0-30 GAR [Gain Adjustment Range (dB)].
- -33 to +60 degrees centigrade peak operating range.
- Weighs 77.0 lbs.
- Type N-Female connectors.
- Measures 15.4 inches Width by 31.5 inches Height by 12.4 inches Length.
Features:
- Supports P25 P1/P2 digital and conventional analog communications simultaneously.
- Simplex and internal Duplexing supported.
- Up to 4 wide band filters.
- Uplink PA shutdown bring the minimum noise for Base Station.
- Built-in mandatory isolation test to prevent BDA oscillation.
- Web based GUI for intelligent configuration, SNMP supported.
- NFPA 1221 / IFC compliant dry contact alarms.
- NFPA 1221 / IFC compliant NEMA 4 enclosure.
Technical Specifications:
| Manufacturer: | Comba Telecom, Inc. |
|---|---|
| Bands Supported: | UHF. |
| Composite Power Downlink: | 36 dBm. |
| Composite Power Uplink: | 30 dBm. |
| Gain Adjustment Range (dB): | 0-30. |
| Temperature Range: | -33 to +60 degrees centigrade. |
| Item Height: | 31.5 inches. |
| Item Width: | 15.4 inches. |
| Item Depth: | 12.4 inches. |
| Item Weight: | 77.0 lbs. |
| Qty/ Uom: | 1 each. |
| RF Connectors: | Type N-Female. |
WARNING:
Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please complete public safety bidirectional amplifier installing service questionnaire for a price quotation if you require professional installation and assistance with bidirectional amplifier design, consent and approval process by a qualified and experienced public safety bidirectional amplifier installer.
