Wilson Pro 4000 Signal Booster 100k Ft² (Wall Mount) | WilsonPro 460223
Wilson Pro 4000 Signal Booster 100k Ft² (Wall Mount) | WilsonPro 460223
No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.
Free Lifetime Support. SKU / Model: 460223
- Sold as a complete cell phone signal booster kit with all required parts.
- Boost in-building coverage up to 100k sq. ft. using this single unit.
- Color LCD toggle screen for easy access to monitor settings.
- Extra Dynamic Range technology for continuous connectivity.
- Highest downlink and uplink power (adjustable).
- Expand coverage indoors even more by purchasing add'l 50 Ohm in-building antenna kits that include required cables and splitter to connect to this 50 Ohm booster kit.
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
WilsonPro 4000 Product Review and Description.
Wilson Pro 4000 cell phone signal booster for approximately 100,000 square feet indoor building spaces consists of a wall mount main amplifier unit. Wilson Pro 460223/ wa460223 part number is a top quality commercial grade boosting system for entire buildings and similar large building structures. Designed, engineered, and assembled in USA by Wilson Electronics/ weBoost.
What does the WilsonPro 4000 Commercial Signal Booster Kit (460223) cost? Call us, chat live, or email us to find out because these can be customized or kitted with variable number of antennas depending on your needs.
Wilson Pro4000 cellphone signal booster is offered to increase the strength of cellular devices as well as boost data transfers (both uploading and downloading). This powered repeater unit is designed to provide in-building cellular coverage enhancements for businesses such as hospitals, hotels, warehouses, offices, and other properties up to 140,000 sq. ft. using up to 16 interior antennas (only four included with kit which would increase reception to up to 100k sq. ft.).
The small but modern technology found within the booster allows for easy navigation, automatic controlling, manual adjustments, and quick installation.
Key features of the Wilson Pro-4000 include this ability to independently control four included indoor antennas. This allows for multi-level enhancement of the cellular signal. Additionally, with the new extended Dynamic Range (XDR) technology this unit never shuts off due to strong outside or changes in outside signals. Downlink power consists of +12dBm per port making the WilsonPro 4000 equipped with the highest available indoor coverage.

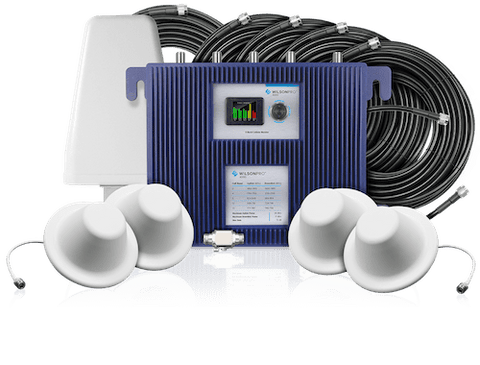

The standard Wilson-Pro 400 kit with UPC 729198530259 comes with all the components necessary for your or our licensed technician to install the device properly (installation cost extra - submit details here for a quote). Included in the kit you will find:
- Wilson 4000 Signal Booster - Part # WilsonPro 460023. Model Number: U460023.
- Outside Directional Antenna - Part # 314411.
- Inside Dome Antenna (4) - Part # 304412.
- Lighting Surge Protector - Part # 859902.
- 2 feet Low-Loss Wilson 400 Cable - Part # 952302.
- 75 feet Low-Loss Wilson 400 Cable - Part # 952375.
- 100 feet Low-Loss Wilson 400 Cables (4) - Part # 952300.
Antennas work independently from onboard software allowing for maximum coverage without disrupting coverage from other antennas. Customers can extend the contents of the kit by purchasing an expansion kit. Optional indoor expansion kits (see below for links to purchase) are sold in Single Antenna (309906-50N), Double Antenna (309907-50N), or Triple Antenna Expansions (309908-50N). Product kits include:
- Wall Mount Panel Antenna (x the purchased amount).
- A 50 Ohm 2-way, 3-way, or 4-way splitter depending upon # of indoor antennas.
- 2 feet Wilson 400 Cable.
- 50 ft. Wilson 400 Cable (x the purchased amount).
Connectors for the coax cables have been strategically placed upon the 4000 Booster to minimize the likelihood of entanglements. The clear and illustrative LCD screen beside the display empowers the user to go through settings to maximize peak performance on the booster. The LCD screen has been designed for quick and effective control of the product upon installation and allows for manual adjustments to the uplink and downlink gain levels for each band.
Mounting your device.
Wilson Pro 4000 commercial grade cellular signal booster is best mounted in areas where there's little to no obstacles obstructing the path to the main antenna. Due to the design of the Wilson 4000 booster, mounting can be accomplished in virtually any interior space. It is advised that the mounting unit and outside Directional Antenna be within as much close proximity as possible for best results. Power should be linked to a dedicated circuit if possible. As this unit is a commercial grade product, mounting of the unit must be done by a licensed installation professional so we recommend getting a prompt installation quote from us.
Like all WilsonPro cellular signal boosters, this features cell site protections that auto-detect and prevent any cell tower interference. This model (Wilson 460223) is capable of increasing signal strength to a max gain of 70 dbs on 50 Ohm impedance. Connections are N-Female. Power is 100-240V AC, 50-60 hz, 30 W. Based upon the band selected the frequencies will vary. The frequencies available are:
- Band 12 – 698-746 MHz.
- Band 13– 746-787 MHz.
- Band 5– 824-894 MHz.
- Band 4– 1850-1995 MHz.
- Band 25/2– 1710-1755/2110-2155 Mhz.
Above frequencies cover all wireless service carriers in USA including Verizon, Sprint, AT&T, T-Mobile and in Canada including Rogers Wireless, Bell Mobility and Telus.
Compatibility and Support.
It is designed to be compatible with all major US 2G, 3G, and 4G devices on all mobile service providers. Additionally, phones from the same major manufacturers will still be able to receive data plus voice enhancement from use of the booster. Communication and data increases are subject to the existing strength of the network signal outside. Businesses which have moderate to strong signals outside will see the most increase.
All Wilson commercial cellular signal boosters are supported with a 3 year warranty from the date of purchase. Any support questions or concerns about your product can be addressed by contacting us or the manufacturer.
Optional Parts and Accessories (not included):
Optional Omni Directional Exterior Antenna: 3G & 4G Omni Wide-band External Antenna.
Yagi (included) is more powerful than Omni (not included, can be purchased separately), but Omni's attract signals from all directions and from all cellular service carriers. Omni's also do not have to be pointed to the cell phone tower.
Wilson Pro 4000 4-Port Signal Booster Kit has four separate internal antenna ports to easily accommodate four in-building antennas.
Additional Interior Panel Antenna(s): 3G & 4G In-Building Panel Antenna (50 Ohm).
Additional Interior Dome Antenna(s): 3G & 4G In-Building Dome Antenna (50 Ohm).
An additional cable will be required for each extra inside antenna (Panel or Dome) purchased for installation with this kit. Two way splitter(s), three way splitter(s), or four way splitter(s) would be required depending on the number of indoor antennas purchased to expand coverage further. Please contact us if you need assistance with your purchase. Thank you.
Wilson Pro 4000 Installation Service by Certified Installers.
Installing this commercial cell phone signal booster kit (WIL-460223) requires planning and system design. Installation needs to be performed by a certified installer. We have installed Wilson Pro 4000 signal amplifiers in many office buildings and various different architectural design business and residential properties. Please contact us for WilsonPro 4000 installation service by professional cell phone signal booster installers at an affordable cost.
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
