    Description

    Product Description

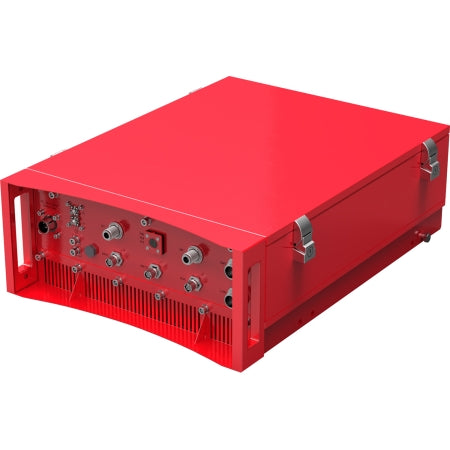

    Comba CriticalPoint 2W USA Public Safety Class B BDA 700+800MHz Dual Band, 33dBm, -48VDC Supports FirstNET. Comba Telecom 700/800 Class B Repeater (90dB, 2 watt -48V DC) has a downlink and uplink composite power of 33 dBm and 25 dBm respectively. Gain power is 90 dB and features FPGA digital programming with three sub band support. The public safety amplifier supports communications from analog and digital P25 P1/P2 on band 14 LTE FirstNet. Automatic alarm and shutdown are activated on detection of oscillation. GUI based online offer intelligent programming and inbuilt compulsory isolation test preventing amplifier isolation. Repeater also includes dry contacts and enclosure, NFPA compliant, for fire alarming panel.

    Specifications:

    Bands: 700 & 800 MHz Public Safety Bands.
    Downlink Frequencies Supported: 758-775 MHz / 851-862 MHz.
    Uplink Frequencies Supported: 788-805 MHz / 806-817 MHz.
    Uplink Composite Power: 25 dBm.
    Downlink Composite Power: 33 dBm.
    Gain: 90 dB.
    Supported Bands: 700 PS & 800 PS.
    RF Connectors: N-Female.
    Single/ Dual Inputs: Single.
    Single/ Dual/ Quad Outputs: Single.
    Power: 48V DC.
    Dimensions: Height 20.9", Length 8.3", Width 15.4".
    Weight: 51 lbs.
    UPC:

    729198556594.

    Warranty: Three Years.



    WARNING:

    Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety signal booster installation questionnaire for a quote if you require professional installation and assistance with consent and approval process.
