Westell DSP85N-PSS8 806-869 MHz Public Safety 85dB NEMA BDA

Westell DSP85N-PSS8 85 dB Gain, Public Safety 800 MHz Digital Repeater

Westell DSP85N-PSS8 806-869 MHz Public Safety 85dB NEMA BDA

    Best Price Guarantee. [1, 2, 3]
    • Product Url
    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

    Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

    Free Lifetime Support. SKU / Model: CSI-DSP85N-PSS8

    Best Price Guarantee [1 2 3]

    Call for FREE consultation:

    1(855)846-2654

    Need installation quote, or help with designing a custom solution? Submit a request for quote.

    • Description
    • Reviews
    • Questions & Answers
    • Make An Offer
    • Warning

    Description

    Product Description

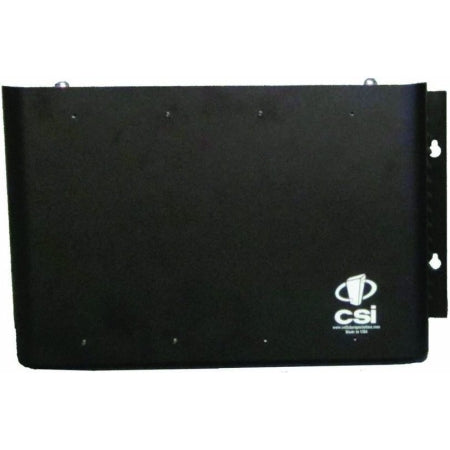

    Westell 85 dB Gain, Public Safety 800 MHz Digital Repeater is 1/2 Watt in-building digital repeater DSP85NPSS8. It is utilized to propagate over-the-air radio frequency signals from a local cell tower into buildings via a fiber or coax distributed antenna system (DAS). UPC: 888063333194.

    Highlights:

    • Remote monitoring and control.
    • 1/2, 1 and 5 watt power options available.
    • Single, dual, tri and quad-band configurations.
    • Simplex port configurations are available in modular form.
    • Modular units are flexible and lightweight.
    • Easily accommodates up to four frequency bands.
    • MIMO options available.

    The Westell CSI-DSP85N-PSS8 field selectable bi-directional amplifier is designed to overcome RF problems including adjacent channel interference. This wireless signal enhancer allows you to re-tune multiple passband configurations, locally or remotely, through a standard web browser. Operating within the 800 MHz band (806 - 824 MHz and 851 - 869 MHz) up to six non-contiguous passbands per memory location is possible. Repeater comes preloaded with 6 passbands options. The digital field-selectable BDA features a gain of 85 dB and a composite output power of +27 dBm with N female connectors.

    With this field-selectable repeater, you can have high selectivity in the crowded 800 MHz. Other features include overload shutdown, automatic gain control, and ability to set major and minor alarms. The BDA is CDMA or GPRS compatible.

    The Westell field-selectable repeater achieves the highest level of performance and spectrum ability. NEMA 4 rated enclosure.

    Technical Specifications.

    Manufacturer: Westell, Inc.
    Bands Supported: 800 MHz SMR/ Public Safety Band.
    Composite Power Uplink: 27 dBm.
    Composite Power Downlink: 27 dBm.
    Installation: Professional installation by SignalBooster.com certified installers.
    Gain: 85 dB.
    RF Connectors: N Female.
    Impedance: 50 Ohm.
    Item Length: 11.24 inches.
    Item Width: 4.68 inches.
    Item Weight: 21 lb.



    Important Note:

    This is an industrial grade signal booster kit. It requires professional installation by a certified installer. Our pro installers will design your system per our free Public Safety Design Configuration Assistance Program for areas over 10k sq. ft. requiring multiple interior antennas. Whether your building needs full coverage because it has no signal indoors, or it needs partial coverage (only some areas are failing inspection), our installation experts will design an efficient and cost-effective solution that is customized to meet all your requirements. We will then send you the design along with a bill of materials (BOM), installation quotation, and installing timeframe. Please submit public safety wireless coverage details so we may proceed to provide information to purchase, design and install the best public safety signal booster system that meets your needs and passes the most rigorous in-building fire safety inspection for your city and state.

    WARNING. Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please contact us for a quote if you require professional installation and assistance with consent and approval process.
