Easy Install Powerful WiFi Booster: 3-Watts / 35-dBm, 2.4 GHz
Easy Install Powerful WiFi Booster: 3-Watts / 35-dBm, 2.4 GHz
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SH24BTANPAFC
- Questions & Answers
- Make An Offer
Powerful wi-fi antenna signal booster offers many great features. It has up to 3 watts of output power. This means that it provides up to 35 dB Gain. That is considered extremely powerful. This wifi signal booster operates on 2.4 GHz frequency which is the most common Internet network wireless range in homes and offices. It is an easy install plug and play kit. It can easily be installed by simply connecting cable provided to any wifi modem or router. It has a power adapter that powers the boosting device (see images).
In many cases, using only a wireless router can result in less-than-adequate signal coverage. However, connecting that same wireless router to a wireless signal amplifier like this one will ensure you achieve strong, reliable, and wider signal range. This is especially helpful if you’re looking for strong and wide-reaching coverage on a second floor of a building or home basement where signals can get weak due to distance from the wireless modem.
This wi-fi booster has been designed for bidirectional signal amplification for use in both mesh wireless networking technologies and mobile applications. Mesh networks solve the problem of being able to cover large areas, such as more than 1000 ft² on a single floor, or on multi-floor offices or homes, particularly where there is no existing ethernet to create simple wired connections of non-mesh wireless access points and Wi-Fi routers.
The function of the WiFi signal amplifier is to amplify the original WiFi signal. It cannot generate a WiFi signal itself. Therefore, its coverage distance depends on output power of the WiFi AP/router. Typically, the power of home router is about 14-16 dB, and less than 20 dB. Based on that assumption, the coverage of this wifi booster kit would be 3,000 to 5,000 sq. ft.
Why would you need this wi-fi signal booster?
A traditional analog amplifier can adversely impact on signal quality and network performance by going into saturation or reducing transmit power due to input signal fluctuation; whereas using this 2.4GHz wifi booster can effectively improve the signal reach of any antenna by a huge 200% to 400%. At the same time, high data throughput rates are still maintained.
The wireless boosting functionality of this amplifier can add up to 12 dB of received gain and 16 dB of transit gain, delivering better connectivity and a wider reaching signal. Please note that results may vary due to environmental factors, cable length and other interferences.
Enhanced Power and Increased Signal Range.
With its low-profile design and small footprint, this wifi amplifier is the perfect one for mounting on vehicles or for use in space-constrained situations. This booster can also be used for almost any 2.4 GHz antenna that uses an SMA Male connector, particularly where there is a need for greatly increased power and signal reach.
When it comes to Wi-Fi networks, this easy-installation kit is the most consistent signal amplification booster available on the market today. This is a full-kit Wi-Fi amplifier with maximum output power of 3000mW.
Receive strong, reliable, and extended coverage for applications and products such as:
- UAV (Unmanned Aerial Vehicle).
- IP Cameras (Internet).
- Access Points (AP).
- Hot Spot Solutions.
- Robotics for Flood and Beach Rescue.
- Smart Home Systems.
- Homes and Offices.
- Parking Spaces.
- R/C Helicopters, Cars And Planes.

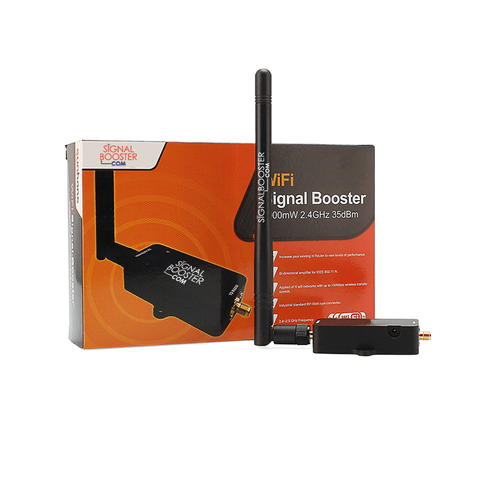

What’s in the Box?
- 1 x 2.4GHz Wi-Fi Signal Amplifier.
- 1 x power adapter.
- 1 x 6dBi omni antenna.
- 1 x 8 in. RG316 cable with SMA connectors.
- 1 x user manual.
How do you install the wifi booster? It is a very easy home Internet signal booster to install. Here're the simple steps:
- Remove the antenna from the AP router.
- Using the RG-316 cable provided, connect the booster to the AP router.
- Then antenna needs to be connected to the other end of the booster.
- Plug in the power adapter.
This wifi amplifier kit comes in an anti-interference, aluminum-alloy case for best amplifying capability. Satisfaction guaranteed or your money back within 60 days.
|Frequency Range||2400 ~ 2500 MHz.|
|Channel width||20 Mhz & 40 Mhz.|
|Supported standards||IEEE 802.11b/ g/ n.|
|Operation mode||Bi-directional, half-duplex, time division duplex.|
|Connector type||To modem/ router/ radio: SMA female (hole inside). To antenna: RP-SMA male (pin inside).|
|Output power||3000 mW (35 dBm).|
|Input power||0 ~ 20 dBm.|
|Transmit gain||15 to 18 dB.|
|Receiver gain||≤ 12 dB.|
|Noise figure||≤ 3.5 dB (typical).|
|Frequency response||±1 dB over operating range.|
|Power adapter||12V/2A DC, 100~240V.|
|Cable Length, Type & Connectors||8 inches RG-316 cable with SMA connectors.|
|Omni Antenna Gain||6 dBi.|
|Operating temperature||-20°C to +70°C.|
|Operating humidity||Up to 75% relative humidity.|
|LED lights||Power status LED light. Activity status LED light.|
|WiFi Booster weight||0.21 lbs.|
|WiFi Booster dimensions:||3.39 x 2.01 x 0.71 inches.|
|Package weight||0.82 lbs.|
|Package size||8.39 x 5.31 x 2 inches.|
Outdoor Application Scenarios:
- Remote control of UAV: Allows drones to fly farther.
- UAV real-time video and image transmission distance is farther and more stable.
- Mine, railway WiFi signal coverage.
- City WiFi coverage and point-to-point WiFi long distance transmission; WiFi detector in public places.
- Intelligent manufacturing robot; such as robotic water rescue systems and advanced small unmanned surface vehicles.
- Special frequency for industrial, medical, military equipment such as ISM frequency, etc.
Indoor Application Scenarios:
- Smart Home: Control system host gateway; Zigbee, Bluetooth devices; Security monitoring system; WiFi video intercom access control, etc.
- Villa, hotel, office building WiFi coverage.
- Underground garage WiFi coverage.
- Factory, warehouse WiFi coverage.
- CVR wireless monitoring system.
Wifi booster is helpful in improving wifi connectivity in underground parking lot, hall, monitoring room, corridor:
Wifi booster for better connectivity of security cameras, video bell, smart lights, smart door, etc.
Questions & Answers
QUESTIONS & ANSWERSAsk a Question
I have so much difficulty getting an internet signal in my basement. Will this booster help with this problem?
Yes, this is designed to extend coverage to areas your wifi router antenna does not reach.
How can I use this wifi signal booster for internet use on my computer or for use on my security cameras?
This wifi booster can help if your current wifi signal is too weak to provide Internet use on your computer when you connect your computer to wifi network for Internet.
This wireless booster will improve reception provided by your current Internet router to provide better coverage and data speed for all devices tapped into that wifi network for access to Internet through your local broadband Internet service plan provided probably by your home phone service provider.
Regarding your security camera, this wifi booster will provide stronger reception if your security camera is connected to the same wifi network. After installing this wifi booster, your camera(s) will receive stronger connection to your current wi-fi network and provide better reception for your camera.
What distance can be expected from this item?
The function of the WiFi signal amplifier is to amplify the original WiFi signal. It cannot generate a WiFi signal itself. Therefore, its coverage distance depends on output power of the WiFi AP/router. Typically, the power of home router is about 14-16dB, less than 20dB. Based on that, the coverage of this wifi booster kit would be 3000 to 5000 sq. ft.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
