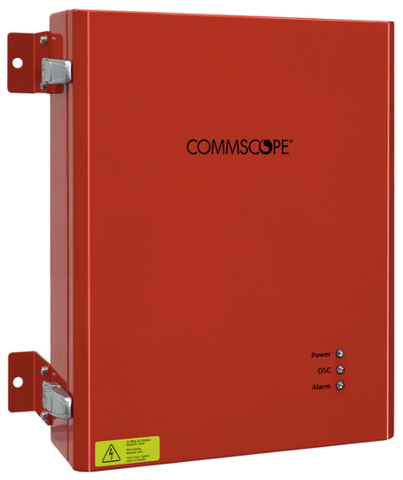

CommScope Public Safety BDA Class-A 2W DC 700 or 800MHz (7831758-0002)
CommScope Public Safety BDA Class-A 2W DC 700 or 800MHz (7831758-0002)
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: 7831758-0002
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
Public Safety BDA, Class A, 2 Watt, DC Powered, Single Band 700 or 800 MHz.
CommScope 7831758-0002 Specs.:
- Single band.
- Class A.
- 32 channels.
- Public safety BDA model 78317580002, UPC 888063925009.
- Support via GUI for frequencies of either 700 or 800 megahertz.
- Upgrade to dual band by buying a license key for the software.
- Full support for Band 14 (FirstNet) on active 700 megahertz band.
- Supports standard analog and P25 digital frequencies.
- Powered by -48 volts DC.
- Utilizing output and input connections between 4.3 and 10.
- Fully complaint with UL2524 and NFPA.
- Composite downlink power of 33 dBm (2 watts).
- Providing gain of 90 decibels.
- Signal source for public safety that is economical, high performing, and compact.
- Full compliance with all necessary specifications for public safety.
- Support for as many of 32 channels for each band thanks to the digital architecture that is high performing and fully programmable.
- Between 0.5 watts and 2 watts of output power.
- Ensure clear and strong voice communication by way of the uplink squelch channelization and AGC (automatic gain control).
- Use a license key to upgrade your band capacity and output power as needed.
- Achieve intelligent monitoring and configuration with web-based SNMP and GUI support.
RF public safety repeater unit.
- Repeater 4.3 to 10 antenna interface.
- Optional inside omnidirectional antenna with 4 dBi gain sold separately.
- Typical values of performance node unless stated differently.
- Features remove ethernet for control and supervision to alarm contacts.
Measurements and Packaging:
- 18.898 inches high (480 millimeters).
- 15.748 inches wide (400 millimeters).
- 3.543 inches long optional antenna (90 millimeters).
- 6.693 inches depth (170 millimeters).
- 41.888 lbs. net (19 kilos).
- 13 dB return loss.
- Fully compliant with United States FCC part 90, part 20, UL 62368, UL 2524, and Electrical Safety Standards number 62368-1, CSA-C22.2/CAN.
- 90 dB gain.
- 30 dB range of gain adjustment.
- Maximum group delay of 90 µs at 12.5 kilohertz and 3 µs at full band.
- Including FirstNet, 700, 800 license band.
- -48 volts DC local power.
- 160 watts power consumption.
Uplink Rx Electrical Specs.:
- FirstNet Frequency Band for Operation between 788 and 798 Megahertz, between 788 and 805 Megahertz, and between 796 and 824 Megahertz.
- One carrier output capability of 27 dBm.
- Two carrier output capability of 24 dBm.
Downlink Tx Electrical Specs.:
- FirstNet Frequency Band for Operation between 758 and 768 Megahertz, between 758 and 775 Megahertz, and between 851 and 869 Megahertz.
- One carrier output capability of 33 dBm.
- Two carrier output capability of 30 dBm.
Compliance and Environmental Specs.:
- Temperature between -22 degrees Fahrenheit and +122 degrees Fahrenheit (-30 degrees Celsius to +50 degrees Celsius).
- Tested with ingress method IP66, NEMA 4X, IEC 60529:2001.
- Distributed, manufactured, and designed in accordance with ISO 9001:2015.
In the world of communications technology CommScope is considered an industry leader, and they maintain this position by continuing to deliver some of the most technologically advanced wireless networks ever conceived. In every country, CommScope Solutions is always rethinking what connectivity means, unlocking the world's challenges, and shaping the innovation to meet tomorrow's technological needs. RUCKUS and ARRIS were purchased by CommScope in 2019. These combined corporations present improved technology, employees, and talent solutions, along with greater access to new and growing markets. It is this connection that saw the creation of a communications corporation with incomparable depth, effectiveness, and breadth.
Through the air, in buildings, or in the ground, SignalBooster.com knows that networks must be robust and reliable, yet also able to evolve to meet the challenges of this ever more connected community. With a wealth of wireless connectivity experience, SignalBooster.com Solutions bring the innovation, compliance, and distinction that corporations must have to meet the growing expectations and requirements of consistent communications. We shape the wireless communication networks of the world to come.
Starting with material design through to working out the most complicated of formations or radio band challenges, our incomparable ability in fiber, wired and wireless framework, and copper, support the communications networks of today and prepares the networks of tomorrow. Enabling private wireless networks, Gigabit speeds, and 5G all over the world, CommScope is forever forecasting what's next to ensure you're always one step ahead. SignalBooster.com's Public Safety DAS design and installation service can bring CommScope technology into your business property effectively ensuring constant connectivity as required by Authority Having Jurisdiction (AHJ).
Per FCC laws and regulations, INDUSTRIAL GRADE distributed antennas system (Fiber DAS) master and/or remote units must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety DAS installation service questionnaire for a quote if you require professional installation and assistance with consent and approval process.
Questions & Answers
QUESTIONS & ANSWERSAsk a Question
Can this model BDA be made into a dual band 700, 800 MHz? If the license key is obtained, purchased?
Answer to your question is, yes.
Please note that upgrade key will be approx. over $1500.00.
Another option is the following particular model which is already a dual band and can be future proofed for later: https://www.signalbooster.com/products/commscope-7831758-0021
