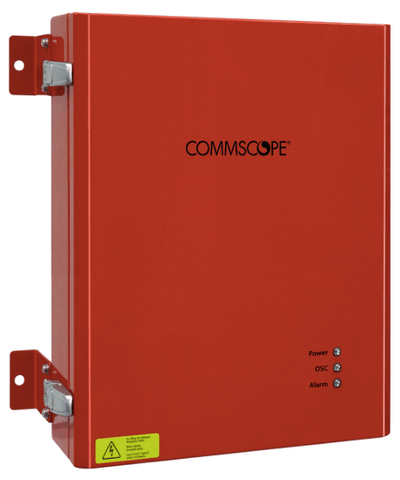

Public Safety BDA, Class B, 2 Watt, DC Powered, Dualband 700 and 800 MHz.

CommScope 7831851-0021 Specs.:

• Dual band.
• Class B.
• Public safety BDA model 78318510021, UPC 888063925955.
• Support for frequencies of both 700 and 800 megahertz.
• Full support for Band 14 (FirstNet).
• Supports standard analog and P25 digital frequencies.
• Powered by -48 volts DC.
• Utilizing output and input connections between 4.3 and 10.
• Fully complaint with UL2524 and NFPA.
• Composite downlink power of 33 dBm (2 watts).
• Providing gain of 90 decibels.

Product Benefits:

• Signal source for public safety that is economical, high performing, and compact.
• Full compliance with all necessary specifications for public safety.
• Support for as many of 32 channels for each band thanks to the digital architecture that is high performing and fully programmable.
• Between 0.5 watts and 2 watts of output power.
• Ensure clear and strong voice communication by way of the uplink squelch channelization and AGC (automatic gain control).
• Use a license key to upgrade your band capacity and output power as needed.
• Achieve intelligent monitoring and configuration with web-based SNMP and GUI support.

Category:

RF public safety repeater unit.

Broad Description:

• Repeater 4.3 to 10 antenna interface.
• Optional inside omnidirectional antenna with 4 dBi gain sold separately.
• Typical values of performance node unless stated differently.
• Features remove ethernet for control and supervision to alarm contacts.

Measurements and Packaging:

• 18.898 inches high (480 millimeters).
• 15.748 inches wide (400 millimeters).
• 3.543 inches long optional antenna (90 millimeters).
• 6.693 inches depth (170 millimeters).
• 41.888 lbs. net (19 kilos).

Electrical Specs.:

• 13 dB return loss.
• Fully compliant with United States FCC part 90, part 20, UL 62368, UL 2524, and Electrical Safety Standards number 62368-1, CSA-C22.2/CAN.
• 90 dB gain.
• 30 dB range of gain adjustment.
• Including FirstNet, 700, 800 license band.
• -48 volts DC local power.
• 160 watts power consumption.

Uplink Rx Electrical Specs.:

• FirstNet Frequency Band for Operation between 788 and 798 Megahertz, between 788 and 805 Megahertz, and between 796 and 824 Megahertz.
• One carrier output capability of 27 dBm.
• Two carrier output capability of 24 dBm.

Downlink Tx Electrical Specs.:

• FirstNet Frequency Band for Operation between 758 and 768 Megahertz, between 758 and 775 Megahertz, and between 851 and 869 Megahertz.
• One carrier output capability of 33 dBm.
• Two carrier output capability of 30 dBm.

Compliance and Environmental Specs.:

• Temperature between -22 degrees Fahrenheit and +122 degrees Fahrenheit (-30 degrees Celsius to +50 degrees Celsius).
• Tested with ingress method IP66, NEMA 4X, IEC 60529:2001.
• Distributed, manufactured, and designed in accordance with ISO 9001:2015.

CommScope 7831851-0021 Data Sheet.

About CommScope:

In order to produce the state-of-the-art wireless communication networks that CommScope is renowned for, the company has had to extend the limits of communications tech. Everywhere in the world, they are solving the challenges of today, reconsidering connectivity, and constructing the innovation to meet tomorrow's technological needs. In 2019, ARRIS and RUCKUS were purchased by CommScope. The united corporations provide employee talent, results, and greater innovation, along with broader access to emerging and new markets. This consolidation created a telecommunications group with unrivaled breadth, capacity, and depth.

About SignalBooster.com:

In structures, through the air, or in the ground, SignalBooster.com understands that communications networks must be robust and stable, yet also be able to grow to meet the challenges of this ever more connected community. Our solutions bring a wealth of experience with communications and can bring the compliance, innovation, and quality that businesses must have in order to meet the multiplying requirements and expectations of uninterrupted connectivity. We’re proud to shape the wireless communication systems of the world to come.

About CommScope & SignalBooster.com:

Beginning with material construction to working out the most sophisticated of formation or radio band challenges, SignalBooster.com’s incomparable know-how in fiber, copper, and wired and wireless groundwork develops today's wireless networks and prepares tomorrow's communications networks. Facilitating 5G, Gigabit speeds, and private wireless networks globally - CommScope is always anticipating what's to come, to ensure you're always one step ahead. SignalBooster.com's Public Safety DAS design and installation service can bring CommScope technology into your business property effectively ensuring constant connectivity as required by every local Authority Having Jurisdiction (AHJ).

WARNING:

Per FCC laws and regulations, INDUSTRIAL GRADE distributed antennas system (Fiber DAS) master and/or remote units must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety DAS installation service questionnaire for a quote if you require professional installation and assistance with consent and approval process.
