Description

Product Description

Open Box Used Wi-Fi Bridge PTP Connection Link Extender.

This is a pre-packaged kit that contains everything you need for complete installation and setup of your new signal boosting equipment. Containing an extender / repeater / amplifier, and two preconfigured Wi-Fi signal booster radio units, this kit is a one-stop solution to creating an advanced Wi-Fi network extender.

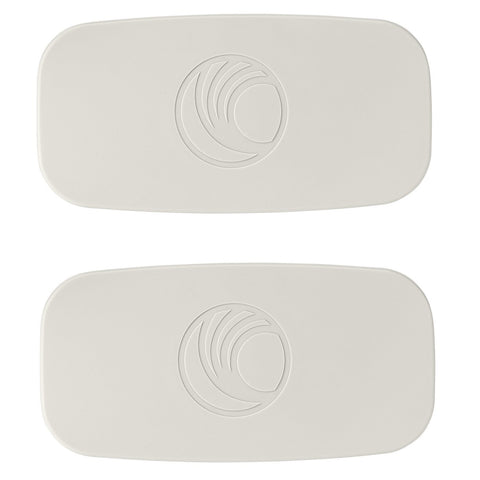

As shown in the product image, this kit contains a pre-paired point-to-point (PTP) setup made up of two Wi-Fi extenders. This creates a long-range wireless ethernet bridge for outdoor or indoor use, ultimately extending the wireless connection between two sites located up to 10 miles away from each other. Designed to work on the 5 gigahertz network frequency, the two identical signal amplifying radio units will extend your wireless network between two points, giving you the freedom to enjoy unrivaled signal strength over an enormous distance.

This kit is based on ePMP technology and contains all components for full setup and installation. While DIY setup is certainly possible, it is recommended that you make use of our professional installation services offered by fully certified installation professionals, particularly if you plan to install this signal boosting setup outdoors.

The kit has been specifically designed for outdoor installation, due to its enormous potential to dramatically increase the range of Wi-Fi coverage between two access points. That being said, many people have found enormous benefit in installing this signal boosting setup indoors, particularly where internal walls would ordinarily prevent Wi-Fi signals from passing through.

While drywall and wooden walls typically don't hinder the passage of Wi-Fi signals, other building materials can. When installed in such a way that the two Wi-Fi extenders are pointed towards each other through walls, this setup can allow you to finally pass Wi-Fi reception through concrete, glass, and other building materials that would ordinarily prevent the transmission of Wi-Fi reception.

Whether you decide to accept the help of our certified installation professionals located across United States, or if you are confident that your own team can handle the installation, this pre-packaged kit can be used for the following purposes:

  • To extend a Wi-Fi hotspot or another type of wireless network to an off-site or remote building location.
  • To backhaul your CCTV network in a cost-effective and time-saving way.
  • To strengthen the connectivity of any application or device that requires a wireless network, while extending and boosting your signal.
  • To extend the reach of your 5 gigahertz Wi-Fi connection or hotspot to an off-site location.

Your Used Open Box Wi-Fi Bridge PTP Connection Link Extending Signal Booster kit contains:

  • 2 x range expanding radio units, preconfigured to support 5 gigahertz Wi-Fi.
  • 2 x power supplies - one for each of your Wi-Fi signal boosters.
  • Brackets (either mast mount or pole mount) for both sets of antennae.

The highlights of your new signal boosting kit include the following:

  • Enjoy the benefits of your new industrial-grade, fully powered ethernet wireless bridge Wi-Fi signal boosting kit.
  • Extend the range between your two radio units, preconfigured to the 5 gigahertz frequency, up to 10 miles apart.
  • Reap the benefits of speed capacity of as much as 200 Mbps throughput with your new industrial-strength Wi-Fi signal booster.
  • Compatible with 40, 20, 10, and 5 megahertz channels.
  • Feel secure with RADIUS authentication and data encryption of AES128 providing the latest data security for wireless technology.
  • Output power of a full one-Watt ethernet wireless bridge Wi-Fi signal boosting kit.

Line of Sight Range of Outdoor Wi Fi Point to Point Bridge Link Connection Extender Kit:

Line of Sight Range of Outdoor Wi Fi Point to Point Bridge Link Connection Extender Kit

Performance as shown in the above image ultimately depends on the quality of the line of sight between the two radio units. Obstructions including buildings and trees will decrease performance and range. The speed and quantity of your wireless data transfer (throughput) will decrease relative to the increasing distance between the two radio units. The setup includes one Wi-Fi antenna/module that transmits a signal and another that receives the signal.

Each antenna in this kit has been designed to be sleek and small yet fully able to deliver the greatest amount of throughput that technology allows, thanks to the ethernet gigabit port. The very latest in signal boosting technology, these 5 gigahertz frequency point-to-point Wi-Fi module radio units offer integrated, high gain, 16 dBi antennas that allow for simple alignment and installation by way of the fully adjustable bracket mounts. The flexible pole mounts will suit poles with diameters between one and three inches (2.5 to 7.5 centimeters).

This point-to-point signal boosting kit is suitable for a wide range of outdoor environments, including temperatures between -4- and 131-degrees Fahrenheit (-20 and +55 degrees Celsius).

General Specifications:

Feature Specification
Wireless Standard ePTP proprietary protocol. Supports longer ranges, lower latency, and greater performance. Optional Standard Wi-Fi booster mode of operation available.
Wired Interface Gigabit / Fast Ethernet
Functions Traffic prioritization using ePMP QoS (Quality of Service), WEP security.
Power 24-56V PoE at device
Radio Transmit Power Up to 30 dBm (1 W)
Environmental Outdoor IP55 -4 to 131 deg F (-20 to +55 deg C)
Antenna 16 dBi integrated antenna
Mounting Flexible pole mount. Supports diameters from 1-3 inches (2.5 – 7.5 cm)
Security AES128 data encryption and RADIUS-based authentication



Spectrum Specifications:

Feature Specification
Frequency Range 4910 – 5970 MHz
Channel Spacing Configurable on 5 MHz increments
Frequency Range 5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width 5 | 10 | 20 | 40 MHz
Physical Layer 2x2 MIMO/OFDM
Ethernet Interface 10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ = 7 & 8, Return = 4 & 5) and Standard PoE pinouts (V+ = 4 & 5, Return = 7 & 8). C058900B072A | 646444255103
Protocols Used IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority



Performance Specifications:

Feature Specification
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
Quality of Service Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority



Physical Specifications:

Feature Specification
Transmit Power Range -17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Surge Suppression 2 Joule Integrated
Weight 0.50 kg (1.1 lb.) (includes mounting bracket)
Wind Survival 145 km/hour (90 mi/hour) with antenna
Dimensions (h x w x d) 12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached
Pole Diameter Range 1 – 1.6 in (2.5 – 4.1 cm) with included clamp ; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption 10 W Maximum, 5 W Typical
Input Voltage 10 to 30 V

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Ask a Question
  • At the receive antenna (in a separate building from my wifi supply router), do I need another router in order to broadcast wifi or does the receive antenna provide the wifi?

    The receive antenna will provide wifi from originating source. This just provides the link from point A to point B. At each end, you would need to connect to network, wired or wireless for that connectivity. If you need a low cost solution, this wifi bridge in a box doesn’t require any licenses subscriptions nor any mandatories. Buy an Access Point (AP), and you're done.
