Description

Product Description

RF spectrum analyzer and locator of Rogers Wireless, Bell Mobility, Telus Mobility, Videotron and other carrier cell towers and networks near you. This is an excellent 3G, 4G, and LTE site survey system in a hard case or a soft case that helps cellular booster or distributed antenna (DAS) installers locate nearby cell towers. It provides wireless tower location details, mobile tower ID, downlink frequency, distance to tower, and more.

When simplicity, accuracy, and mobility matters, this spectrum analyzer that works in conjuction with its app is the first cellular survey tool created specifically for active DAS, passive DAS, M2M, cellular networking, and Cellular IoT professionals requiring comprehensive and flexible network analysis.

Important Information For Canadian Networks:

The tower pins will populate a little differently because they are color coded for USA carriers. Otherwise, everything should work the same. While this RF signal meter meter does work in Canada, there are couple of other things you should know: (the foll. info overrides all other info on this page, and in spec. sheet, etc. for Canadian use)

  1. Even though the app is designed with focus on the 3 major US carriers, there are provisions for "other" carriers. When running a scan in Canada - Rogers, Bell, Videotron and Telus will show up in the "Other" category.
  2. In list view, all identified carriers along with RSRP, RSRQ, Band, DL Frequency, etc. will all be displayed.
  3. Map view (Geo targeting for towers) may not function as it does in USA. It utilizes an open source database to locate towers and it is not fully validated in Canada yet.

It supports the following bands:

  • B2 [1900 MHz].
  • B4 [AWS1700 MHz].
  • B5 [850 MHz].
  • B12 [700 MHz].
  • B13 [700 MHz].
  • B17 [700 MHz].

What Is It?

Basically, this survey system is a sophisticated yet simple to use scanning tool. In essence, it is a comprehensive measurement, data collection and data management tool.

What Does It Do?

It is engineered to provide any professional integrator, installer, system designer or contractor, commissioned in the implementation and installation of cellular sub systems, an accurate and simple tool to utilize. This system will provide all of the necessary details ensuring a predictable and accurate assessment of all necessary information required to effectively design, install and validate performance for all types of cellular amplifier systems. This includes locating where the nearest cell tower of all carriers exist, simultaneously. It helps find exact location of each cell tower or transmitter and which carrier it belongs to - Rogers, Bell, Telus, Videotron, or any other.

Main Features:

  • Multi-Generation LTE, Cellular, AWS And PCS Scanner.
  • Live Mode For Fine Tuning Single Or Multiple Cells.
  • Identifies Active Carriers.
  • Generation And Carrier Filters.
  • Geo Mapping Of All Active Cells Within Scan Range.
  • 4G Signal Strength (RSRP) And Signal Quailty (RSRQ).
  • 3G Signal strength (RSCP) And Signal Quality (EC/IO).
  • Details Location, Tower ID, Downlink Frequency, Distance To Tower And More.
  • Capture, Store And Export All Scan Results.
  • Powerful Project Management Features.
  • Survey Results Time Stamps For A/B Comparisons.

How does it work?

A survey is performed by linking the Spectrum Analyzer to its app via Bluetooth on either an iOS or Android supported device. The powerful software, small form factor and low power consumption provides the perfect platform for mobile survey applications.

What does the Soft Case kit include?

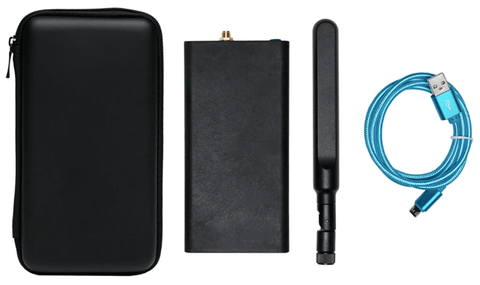

The Cell LinQ Meter + App Pro Meter Kit Soft Case includes everything shown in image below and listed below it, for professional installers to perform a comprehensive cellular site survey. This Pro Meter Kit comes with one App license and instructions on how to download and activate the Cell LinQ App from an Apple or Google Play Store.

Cell LinQ Meter + App Pro Meter Kit Soft Case
  • Compact Soft Carrying Case.
  • Spectrum Analyzer.
  • Mobile Application License (Download: Apple or Google Play).
  • 2G / 3G / 4G Terminal Antenna.
  • USB Charging Cable.

What does the Hard Case kit include?

The Cell LinQ Meter + App Pro Meter Kit Hard Case includes everything shown in image below and listed below it, for professional installers to perform a comprehensive cellular site survey. The Pro Meter Kit comes with one App license and instructions on how to download and activate the Cell LinQ App from an Apple or Google Play Store.

Cell LinQ Pro Meter Kit Hard Case (with adaptors)
  • Large Durable Carrying Case.
  • Spectrum Analyzer.
  • Mobile Application License (Download: Apple or Google Play).
  • 2G / 3G / 4G Terminal Antenna.
  • USB Charging Cable.
  • 40" Adapter Cable and Male / Female Adapters.
  • Power Cube and 36 inches USB Charging Cable.

Specifications:

Dimensions Survey Case L 12.75" W 4.25" H 9.25"
Weight 3.3 lbs
LTE (700 MHz) Yes
Cellular (800 MHz) Yes
AWS (1900 MHz) Yes
PCS (2100 MHZ) Yes
RSSI Yes
RSRP (Signal Strength) Yes
RSRQ (Signal Quality) Yes
Generation 3G, 4G, LTE
Carrier ID Yes
Tower Geo Mapping Yes
Downlink Frequency Yes
Tower ID Yes
Distance to Tower Yes
Mobile Network Code Yes
Physical Cell ID Yes
Carrier ID Filters Yes
Generation Filters Yes
Bluetooth Yes
Store Results Yes
Export Results Yes
Project Management Yes
Survey Export Yes
Survey A/B Comparison Yes



A wireless RF scanning tool and software that does all this and more:

  • Carrier Agnostic: Locates cell tower of all carriers simultaneously including Verizon Wireless, AT&T Wireless, T-Mobile, and Sprint.
  • Signal Detail: Select any tower to display signal quality, carrier, band, downlink frequency, plus more.

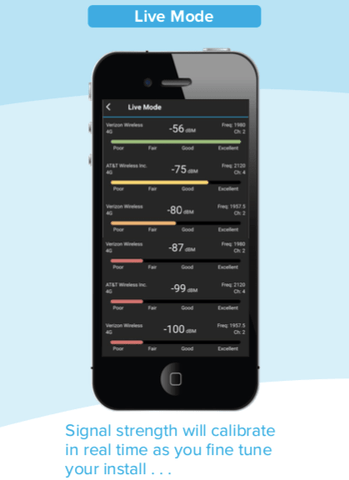

  • Live Mode: Signal strength will calibrate in real time as you fine-tune your install.
  • Project Management: Customize, organize and save all of your installs to the cloud.
  • Project Export: Easily export your projects to a .csv file for your system design.

How does it work and how to make the most of it?

Let us bein with simple how-to instructions. Follow our easy step-by-step instructions for using our phone app to connect to the signal meter. Here's what exactly happens once you're connected:

  • The app works in conjunction with the meter, allowing you to scan and store cell tower data that you view on your phone. Note that carrier towers are color coded, enabling you to toggle by either carrier or 3G and 4G.
  • Press "Scan". You will notice the "Q" rotating as tower data is gathered by the meter.
  • Now select a tower to display carrier, location, signal quality, DL frequency, band, and much more.
  • With Live View mode you can choose single or multiple 4G or 3G towers.
  • As you fine-tune your install you will notice that the signal strength will calibrate in real-time.
  • Once a scan has been completed, all information can be customized, organized, and saved to the Cloud. Note that previous scan data will be cleared each time a new scan is performed.
  • You now have the ability to compare before and after results and recall scans from stored projects.
  • For your system design, your projects can easily be exported to a .csv file.
  • Refer to Cell LinQ data sheet for more details.

Frequently Asked Questions (FAQ's).

In What Way Does this Spectrum Analyzer Differ from Others?

This spectrum analyzer + software application available for your smartphone provides carrier information and measures both signal quality and signal strength. It also provides other relevant tower information. On other hand, most signal meters or spectrum analyzers only measure RSSI values. Others are also unable to store, recall, or export scan data. The project management features of the free app that works with this unit allows for all scanned data to be collected and stored in the Cloud so that it can be recalled or exported at any time in the future.

What Is the Maximum Distance That the Meter Can Be from the Phone?

Because the meter communicates with the handset and app utilizing Bluetooth technology, the average effective distance between the meter and your phone is between 30 and 50 feet.

Can a Meter Be Used by More Than One Person?

Yes, it can. In fact, a single meter can be used by a number of users. All that is required is for each user to download this signal analyzer app from either Apple’s App Store or the Google Play Store.

Can You Explain What Happens When I Press the Scan Button?

Because you need a Bluetooth connection to the spectrum meter, the app will ensure you have that connection. Once your smart phone is paired with the meter, the meter will search for cell activity for each channel. Any information gathered will be sent to the app for display on your phone.

What Information Is Gathered during a Scan?

4G: Carrier, location, radio type, channel frequency, CellId, RSSI, RSRP, RSRQ, tac, mcc, mnc.

3G: Carrier, location, radio type, channel frequency, CellId, RSSI, RSCP, lac, mcc, mnc, Ec/Io.

Is Information Gathered by the Spectrum Meter Via a Database?

Using CellId returned from the cell site, a database is used to correlate carrier, location, and radio type.

What Does It Mean When It Says "Unknown" in the Carrier Column?

It means that for that specific CellId, the carrier and location do not exist in the CellId database. If it is a new Cell-Id, the new information may take weeks to be updated into the database.

Can Scan Results Be Exported?

Yes they can. A CSV file containing all data for a specific project or customer can be exported from the app.

How Do I Save the Scan Information before I Perform a New Scan?

Simply create a new project and save the scan data, or alternatively recall an existing project then add this information to that project.

How Long Does a Single Scan Take, and Does Each Scan Take the Same Amount of Time?

One scan takes approximately 90 seconds. However, there can be a variation in the amount of time taken. This is because every channel in every frequency band is scanned by the meter, which waits for a beacon from cells on that channel. If that channel has no active cells you will then have a wait of approximately two-times the beacon interval, just to ensure that no beacons have been missed, before progressing to the next channel. Time variations for scan completion are most likely determined by how quickly beacons are returned when active cells have been found.

If I Turn Carriers off, Will Scan Time Be Shortened?

No, it won’t. All available information is gathered by the signal analyzer when a scan is performed. The carrier filters are simply another function of the app and will not save scan time.

Why Does the Map View Show Clusters of Towers in Close Proximity?

Several antenna arrays are often used by cell towers to generate a 360° coverage area, with every one of these antennas having its own specific ID. If you're performing a scan in an area where there is overlapping coverage area from numerous antennas on a tower, information from a number of antennas from that tower may be displayed. In the scan results you will see the multiple tower pins, which will likely be displayed close together on the map.

When I Run the Same Scan in the Same Location I Often Get a Different Number of Towers. Why Is This?

When you take a number of scans from the same location you may experience varying results. This can be caused by changing tower capacity and strengths.

What Does Poor, Fair, Good, and Excellent Mean?

Signal quality is directly measured, not calculated, from the beacons received from the cell site.

Why Does the App Have Carrier Specific Buttons Located at the Top?

If you need to filter specific carriers, simply toggle on or off each carrier; you will know a carrier is active when you see a blue light within each button.

How Long Do I Have before the Meter Battery Needs to Be Recharged?

In standby mode, the signal analyzer battery will last for many weeks; and while it is being used for scanning, it will last for several hours.

Which Frequency Bands Is The Spectrum Meter Capable of Scanning?

At the moment, the meter will scan B2, B4, B5, B12, and B13 frequency bands.

Are Public Safety Bands supported by This Meter?

No, at this point in time, public safety bands are not supported. However, we are currently looking at options to add band B14.

Why Are There No Provisions for Sprint Towers?

While the app does have provisions for Sprint, the Sprint 4G network users LTE technology bands 25, 26, and 41. The bands currently supported are B2 (not G block), B4, B5, B12, B13, and B17. Band 25 includes the newer G block of the PCS band, including Sprint's original PCS spectrum.

Cell Tower Accuracy.

Are Cell Tower Locations Accurate?

Once a scan has been completed, the Cell Spectrum Meter app will display a GPS pin location for each cell it is able to locate. It should be noted that these pinned locations are only approximate; they may not accurately pin the GPS location.

The reason for this is that in order to provide a GPS location, the Cell Signal Analyzer uses OpenCell ID, an open source database which is currently the most accurate source available for tower locations.

Community input of cell RSSI data helps determine the location of cell towers​, and although it does help to estimate the location of a tower, there are some inherent positional discrepancies. These discrepancies between the tower's actual position and the position as reported by OpenCell ID are because:

1: Cells and Cell Towers Are Completely Different Things.

A single antenna is rarely used to produce a 360° signal from a cell tower. More commonly, several antennas are used, with each antenna covering a portion of the 360° circle. For example, any specific antenna amy be emitting a signal at for example 120° (3×120 = 360). This is why there's such a big discrepancy between the number of cell IDs and the number of cell towers. Each cell tower has several antennas, with every antenna counting as a cell. With this system, it is the cell IDs that are reported, providing the approximate location of where that signal is coming from.

2: Signal Measurement Is Not Always Equally Dispersed around Cell Towers.

As stated in No. 1 above, it is the users in the community who provide the OpenCell ID data. RSSI information is collected as users pass by a tower, and it is this data that is used to determine tower locations. Therefore, paths and roads used by travelers near towers will inevitably vary. A cell tower is not always approachable from all sides by pedestrians, cars, bicycles, and so on. You will also see different angles and distances, where roads pass by the cell tower.

The measurements around the cell tower in such cases will not be distributed equally, with the majority of measurements coming from just one side. This means that you will not be able to accurately establish the location of the tower by averaging the GPS positions of these measurements; However, the estimate will be quite close.

When aiming an antenna for a M2M modem or a cell phone signal booster, it can be very useful if you have a rough idea of which direction a cellular tower is located. Our recommendation is that, when you're ready to accurately adjust the position of the donor antenna, you use the Live Mode feature.

Need an Installer?

Contract a cellular booster installer for cellular booster installation service to install your kit professionally by a certified cellular booster installation specialist.
